DC-powered hub that supports Wiegand and OSDP readers and provides entry and exit control for up to two doors.



(UA-Retrofit-Hub-2)

Overview

Specification Details
Dimensions 140 x 120 x 45 mm (5.5 x 4.7 x 1.8")
UniFi Application Suite Access ✓
Supported Doors 2
Input Terminals (2) Third-party Wiegand Reader / UniFi Retrofit Reader
(2) Door exit request
(2) Door position
(1) Emergency
Power Method DC 12/24V
NDAA Compliant ✓

Mechanical

Specification Details
Weight 420 g (14.8 oz)
Enclosure Material Polycarbonate
Mount Material SGCC steel

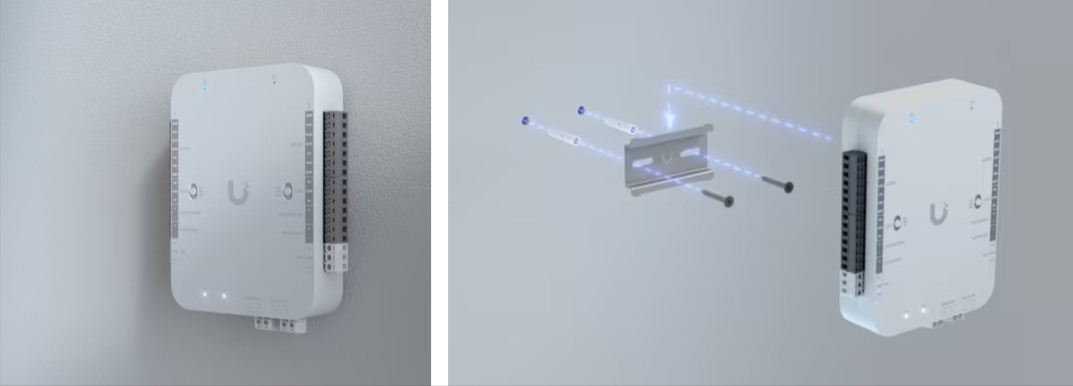

Mounting Din-rail (Included)

Hardware

Specification Details
Digital Input (2) Third-party Wiegand Reader / UniFi Retrofit Reader
(2) Door exit request
(2) Door position
(1) Emergency
Dry Output Relay Lock: rated 30V DC, up to 1A
Aux: rated 30V DC, up to 1A
Powered Output Relay 12V Lock: 12V DC, up to 1A
24V Lock: 24V DC, up to 0.5A
Indoor and Outdoor Use Indoor only
Ambient Operating Temperature -10 to 40° C (14 to 104° F)
Ambient Operating Humidity 5 to 90% noncondensing
Networking Interface (2) 10/100 MbE RJ45 ports
Power Supply DC 12/24V
Max. Power Consumption 50W
LEDs W/B
Buttons (1) Factory-reset
(2) 12V/Dry/24V switch
Recommend Max. Cable Length UA-Retrofit-Reader (250mA)
18 UACC-Cable-DoorLockRelay length: 152.4 m (500 ft)

UA-Lock-Electric (400mA)
24 AWG length: 25 m (82 ft)
22 AWG length: 42 m (138 ft)
20 AWG length: 66 m (217 ft)
18 UACC-Cable-DoorLockRelay length: 100 m (328 ft)

UA-Lock-Magnetic-540kg (500mA)
24 AWG length: 20 m (66 ft)
22 AWG length: 32 m (105 ft)
20 AWG length: 51 m (167 ft)
18 UACC-Cable-DoorLockRelay length: 80 m (262 ft)

UA-Lock-Magnetic-270kg (800mA)
24 AWG length: 12 m (29 ft)
22 AWG length: 20 m (98 ft)
20 AWG length: 30 m (167 ft)
18 UACC-Cable-DoorLockRelay length: 46 m (151 ft)

Other locks (1A)
24 AWG length: 9 m (30 ft)
22 AWG length: 15 m (49 ft)
20 AWG length: 24 m (79 ft)
18 UACC-Cable-DoorLockRelay length: 36 m (118 ft)
Certifications CE, FCC, IC
SKU UA-Retrofit-Hub-2
Brand Ubiquiti
Shipping Weight 0.4200kg

Manufacturer Warranty : 1 Year Manufacturer Warranty
