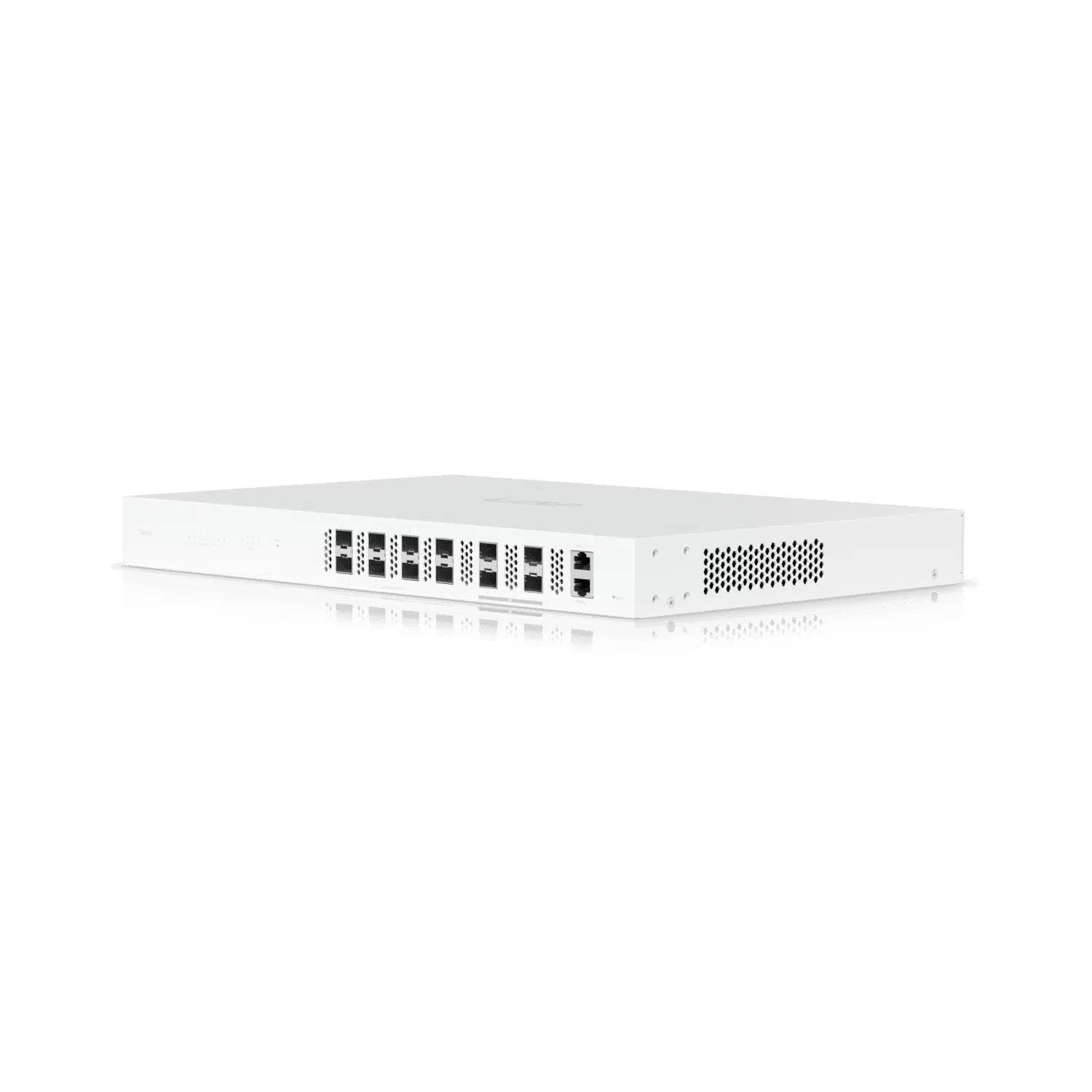

Ubiquiti UISP-FIBER-OLT-XGS UISP Fiber 8 Port 10Gbps 2000 Subscribers
Model# UISP-FIBER-OLT-XGS
-
SKU: UISP-FIBER-OLT-XGS
- Pick Up Available
- Australian Warranty
- Checkout Securely
Ubiquiti UISP Fiber OLT XGS, 2048 Client capacity, (8) 10G SFP+ OLT ports, (4) 25G SFP28 uplink ports
An eight-port optical line terminal that can deliver 10 Gbps uplink/downlink speeds to over 2,000 subscribers.
XGS-PON 10 Gbps bi-directional capacity
2048 Client capacity (8 ports)
(4) 25G SFP28 uplink ports
1U rack mount
AC/DC power module redundancy support
(UISP-FIBER-OLT-XGS)
Technical Specifications

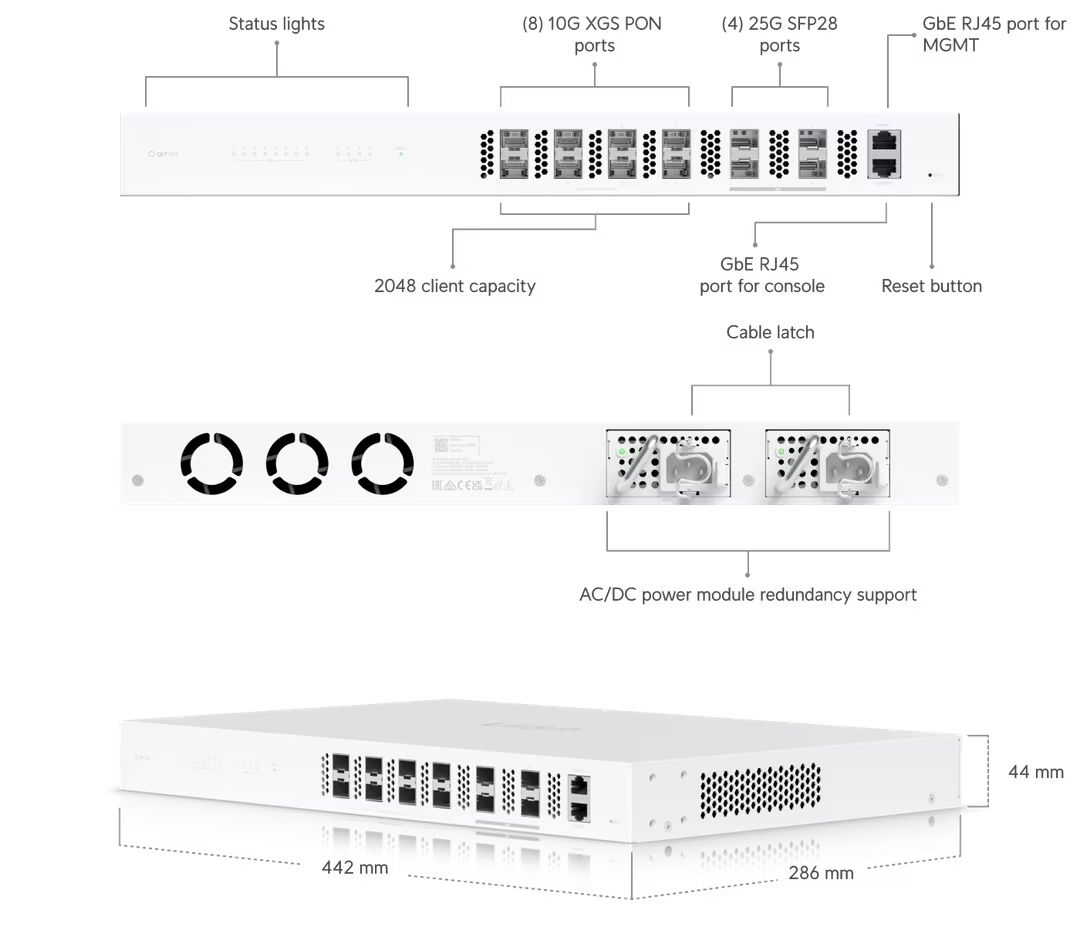

| Mechanical | |
|---|---|
| Dimensions | 442.4 x 285.6 x 43.7 mm (17.4 x 11.2 x 1.7") |
| Weight | 5.29 kg (11.7 lb) |
| Enclosure material | SGCC steel |
| Hardware | |
| Networking interface | (8) XGS/XG/GPON ports (4) 1/10/25G SFP28 ports* *The four SFP28 ports don't support mixed speed at 25 Gbps mode. Once one of the SFP28 ports is configured at 25 Gbps mode, the others will be limited at 25 Gbps too. The SFP28 ports only support mixed speed when all ports are at 1 Gbps or 10 Gbps. |
| Management interface | Ethernet out-of-band Ethernet in-band RJ45 serial console port Bluetooth |
| Memory | 512 MB DDR3 |
| Onboard flash storage | 64 MB NOR + 512 MB NAND |
| Power method | (1) Universal AC input, 100-240V AC, 50/60 Hz |
| Power supply | (2) Hotswap AC/DC PSU |
| Supported voltage range | 100–240V AC |
| Max. power consumption | 70W |
| Button | (1) Factory reset |
| Operating temperature | -10 to 45° C (14 to 113° F) |
| Operating humidity | 10 to 95% non-condensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| System | Slow blinking white: system is booting Fast blinking white: reset to default Blinking white/blue: system is upgrading Slow blinking blue: system is connecting to UISP Fast blinking blue: locate system Steady white: system is ready Steady blue: system is ready and connected to UISP |
| MGMT port | (1) White, steady on after link is up |
| PON ports | (8) Steady white: PON link |
| SFP28 ports | (4) White, steady on after link is up |
| SKU | UISP-FIBER-OLT-XGS |
| Barcode # | 810084691212 |
| Brand | Ubiquiti |
| Shipping Weight | 7.0000kg |
