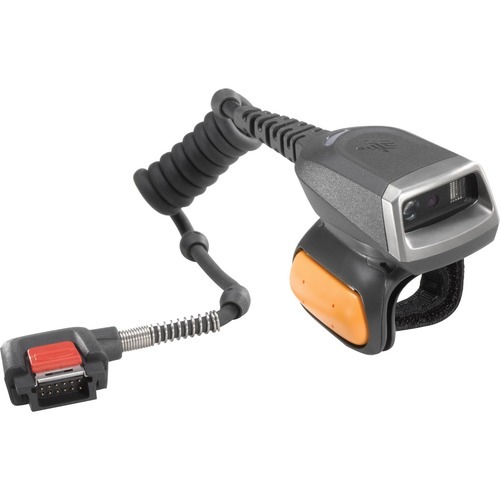

CORDED 2D IMAGER RING SCANNER TO WT6000 WEARABLE TERMINAL, SHORT CABLE TO WRIST, WORLDWIDE MAXIMISE WORKER PRODUCTIVITY AND THE VALUE OF YOUR ZEBRA WEARABLE COMPUTERS WITH THE RS5000 The RS5000 ring scanner is designed for challenging warehouse and manufacturing environments. Designed for subzero environments, it can be used in your warehouse aisles and in the freezer. It can withstand a 4 ft./1.2 m drop across the entire operating temperature range - a must for freezer use. Even after 1,000 consecutive bumps, the RS5000 delivers reliable operation. And with its IP65 sealing, this rugged scanner is dust-proof and spray-proof.

(RS5000-LCFSWR)

Miscellaneous

Application/Usage	Industrial
	Manufacturing
	Warehouse
	Retail
	Transportation
Ingress Protection (IP) Rating	IP65

Technical Information

Barcode Symbology Supported	1D: Code 39 Code 128 Code 93 Codebar/NW7 Code 11 MSI UPC/EAN I 2of 5 Korean 3 of 5 GSI DataBar Base 32 (Italian Pharma) 2D: PDF417 Micro PDF417 Composite Codes TLC-39 Aztec DataMatrix MaxiCode QR Code Micro QR Chinese Sensible (Han Xin) Postal Codes
Connectivity Technology	Cable
Scanning Distance	635 mm
Scanner Range	Standard Range
Drop Specification	Multiple 4 ft. /1.2 m drops to concrete over the operating temperature range
Scan Pattern	Omni-directional
Scan Rate	116 scan/s
Image Sensor Type	Imager
Cable Type Included	USB
Scan Engine Model	SE4710
Scanning Capability	2D
Scanning Capability	1D
Field of View (Horizontal)	42°
Field of View (Vertical)	28°
Reading Angle (Skew)	60°
Reading Angle (Pitch)	60°
Reading Angle (Roll)	360°
Maximum Ambient Light	96900 lux
Minimum Element Resolution (Code 39)	0.13 mm
Maximum Element Resolution (Code 39)	0.51 mm
Maximum Element Resolution (DataMatrix)	0.25 mm
Maximum Element Resolution (PDF417)	0.13 mm

General Information

Product Type	Barcode Scanner
Manufacturer Part Number	RS5000-LCFSWR
Manufacturer Website Address	http://www.zebra.com/ap/en.html
Manufacturer	Zebra Technologies Corporation
Product Model	RS5000
Product Name	RS5000 1D/2D Corded Ring Scanner
Brand Name	Zebra

Physical Characteristics

Weight (Approximate)	76 g
Form Factor	Wearable
Length	50.8 mm
Width	32 mm
Depth	27.9 mm
Product Color	Dark Grey
Rugged	Yes

SKU	RS5000-LCFSWR
Brand	ZEBRA
Shipping Weight	0.1100kg

Manufacturer Warranty

Be The First To Review This Product!

Help other Device Deal users shop smarter by writing reviews for products you have purchased.

Write a product review

Zebra CORDED 2D IMAGER RING SCANNER TO WT6000 WEARABLE TERMINAL, SHORT CABLE TO WRIST, WORLDWIDE - RS5000-LCFSWR

Name: Zebra CORDED 2D IMAGER RING SCANNER TO WT6000 WEARABLE TERMINAL, SHORT CABLE TO WRIST, WORLDWIDE - RS5000-LCFSWR
Brand: ZEBRA
SKU: RS5000-LCFSWR
Price: 1708 AUD
Availability: OutOfStock
