Zebra DS9908 Barcode Scanner Presentation With Stand 2D USB
Model # DS9908-SR4U2100AZW
-
SKU: DS9908-SR4U2100AZW
Don't pay: $932.00
$541.00
SAVE $391.00 (42%)
- Pick Up Available
- Australian Warranty
- Checkout Securely

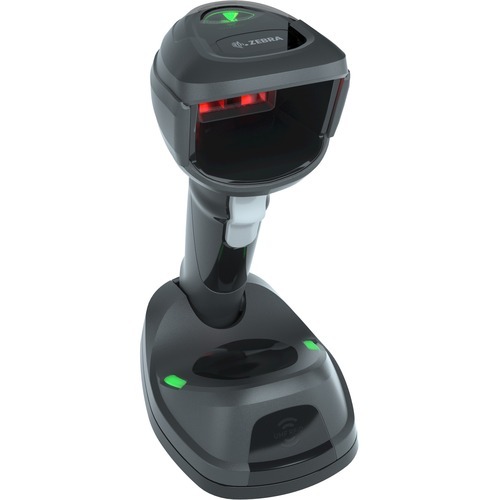

Zebra DS9908-SR Corded 1D/2D USB Hybrid Presentation Scanner Kit
A Midnight Black standard-range DS9900 Series USB kit for handheld and presentation scanning.
Product overview
Hybrid USB scanning with an integrated adjustable stand
The Zebra DS9908-SR4U2100AZW is a corded DS9900 Series hybrid barcode scanner kit designed for handheld and hands-free presentation use, with an integrated adjustable stand.
The approved specifications list a USB host interface, 1D and 2D capture, a standard-range imager, IP52 rating and a supplied scanning-distance value of 609.60 mm.
Product details
Technical specifications
| Supplied product information | |
|---|---|
| Brand | Zebra |
| SKU / manufacturer part number | DS9908-SR4U2100AZW |
| Product model | DS9908-SR |
| Product series | DS9900 |
| Product type | Barcode scanner kit |
| Connectivity | Cable |
| Host interface | USB |
| Cable type included | USB |
| Scanning capability | 1D and 2D |
| Barcode symbologies | Code 39; Code 128; Code 93; Codabar/NW7; Code 11; MSI Plessey; UPC/EAN; I 2 of 5; Korean 3 of 5; GS1 DataBar; Base 32 (Italian Pharma); PDF417; Micro PDF417; Composite Codes; TLC-39; Aztec; DataMatrix; MaxiCode; QR Code; Micro QR; Han Xin; Postal Codes |
| Scanner range | Standard range |
| Scanning distance as supplied | 609.60 mm |
| Image sensor | Imager |
| Field of view | 48° horizontal; 31° vertical |
| Reading angles | 60° skew; 60° pitch; 360° roll |
| Maximum ambient light | 107,600 lux |
| Minimum print contrast | 16% |
| Drop specification | Designed to withstand multiple drops at 5.0 ft. / 1.5 m to concrete |
| Ingress protection rating | IP52 |
| Form factor | Handheld with integrated adjustable stand described |
| Dimensions | 203.2 × 94 × 132.1 mm (H × W × D) |
| Approximate weight | 330 g |
| Colour | Midnight Black |
| Shipping weight as supplied | 0.5300 kg |
Helpful answers
Frequently asked questions
Can it be used handheld and hands-free?
Yes. The supplied content describes both handheld and presentation operation.
Which interface is listed?
USB is the supplied host interface and cable type.
Does it scan 1D and 2D barcodes?
Yes. Both capabilities are listed.
What scanning distance is supplied?
The approved specification block lists 609.60 mm.
(DS9908-SR4U2100AZW)
Interfaces/Ports
| Host Interface | USB |
Technical Information
| Barcode Symbology Supported |
|
| Connectivity Technology | Cable |
| Scanning Distance | 609.60 mm |
| Scanner Range | Standard Range |
| Drop Specification | DS9908: Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete |
| Image Sensor Type | Imager |
| Cable Type Included | USB |
| Scanning Capability | 2D |
| 1D | |
| Field of View (Horizontal) | 48° |
| Field of View (Vertical) | 31° |
| Reading Angle (Skew) | 60° |
| Reading Angle (Pitch) | 60° |
| Reading Angle (Roll) | 360° |
| Maximum Ambient Light | 107600 lux |
| Minimum Print Contrast | 16% |
| Maximum Element Resolution (Code 39) | 0.08 mm |
| Maximum Element Resolution (DataMatrix) | 0.25 mm |
| Maximum Element Resolution (PDF417) | 0.17 mm |
Miscellaneous
| Application/Usage | Quick Service Restaurant (QSR) |
| Retail | |
| Convenience Store | |
| Industrial | |
| Ingress Protection (IP) Rating | IP52 |
Physical Characteristics
| Weight (Approximate) | 330 g |
| Form Factor | Handheld |
| Height | 203.2 mm |
| Width | 94 mm |
| Depth | 132.1 mm |
| Product Color | Midnight Black |
General Information
| Product Type | Barcode Scanner Kit |
| Manufacturer Part Number | DS9908-SR4U2100AZW |
| Manufacturer Website Address | http://www.zebra.com/ap/en.html |
| Manufacturer | Zebra Technologies Corporation |
| Product Model | DS9908-SR |
| Product Name | DS9900 Series Corded Hybrid Imager for Retail |
| Product Series | DS9900 |
| Brand Name | Zebra |
| SKU | DS9908-SR4U2100AZW |
| Brand | ZEBRA |
| Shipping Weight | 0.5300kg |
| Shipping Width | 0.011m |
| Shipping Height | 0.024m |
| Shipping Length | 0.013m |
