Zebra RS5100 RING SCANNER SE4770 STD BATT SINGLE TRIGGER IN - RS51B0-TBSNWR
Model # RS51B0-TBSNWR
-
SKU: RS51B0-TBSNWR
Don't pay: $1,775.00
$1,314.00
SAVE $461.00 (26%)
- Pick Up Available
- Australian Warranty
- Checkout Securely

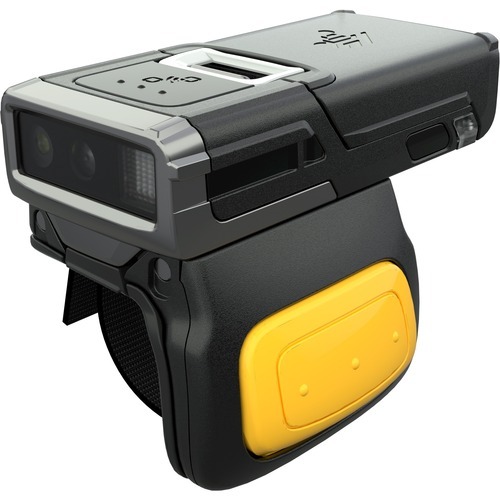

Zebra RS5100 SE4770 Bluetooth Ring Scanner with Standard Battery
A wearable 1D/2D Bluetooth ring scanner with SE4770 scan engine, single trigger, standard removable Li-ion battery, semi-omnidirectional scanning and IP65 rating.
Product overview
Single-trigger SE4770 scanning with a replaceable battery
The Zebra RS5100 is supplied as a small, low-profile Bluetooth ring scanner with a single trigger, SE4770 scan engine and standard battery. Its cordless design removes the host cable, while the family narrative describes multiple wearable positions and personal trigger assemblies.
The standard removable PowerPrecision+ battery is supplied with figures of 12 hours and 14,400 scans per charge. Class 1 Bluetooth is described for up to 300 ft / 91.44 m roaming, and NFC supports tap-to-pair with compatible Zebra devices.
Product details
Technical specifications
| Supplied product information | |
|---|---|
| Brand | Zebra |
| SKU | RS51B0-TBSNWR |
| Product model | RS5100 |
| Product type | Bluetooth wearable ring scanner |
| Scan engine | SE4770 |
| Scanner range | Standard Range |
| Scanning capability | 1D and 2D |
| Scan pattern | Semi-omnidirectional |
| Trigger configuration | Single trigger |
| Connectivity | Wireless; Bluetooth |
| Bluetooth range as supplied | Class 1; up to 300 ft / 91.44 m from host |
| Pairing wording | NFC tap-to-pair with compatible Zebra devices |
| Battery | Standard removable Li-ion PowerPrecision+ battery |
| Standard-battery figure | 12 hours; 14,400 scans per charge |
| Drop specification | Multiple 1.8 m / 6 ft drops to concrete across the operating-temperature range |
| Ingress rating | IP65 |
| Weight as supplied | 70 g |
| Dimensions | 61 × 28 × 21 mm |
| Colour as supplied | Black; Yellow |
| Manufacturer-warranty duration | Not supplied |
Helpful answers
Frequently asked questions
Which scan engine is fitted?
The supplied technical specification identifies the SE4770 scan engine.
What is the battery figure?
The standard-battery wording lists 12 hours and 14,400 scans per charge.
Does it scan both 1D and 2D barcodes?
Yes. Both capabilities are supplied.
What rugged ratings are listed?
The supplied ratings include IP65 and multiple 1.8 m drops to concrete.
(RS51B0-TBSNWR)
Battery Information
| Battery Chemistry | Lithium Ion (Li-Ion) |
Network & Communication
| Bluetooth | Yes |
Power Description
| Power Source | Battery |
General Information
| Product Type | Barcode Scanner |
| Manufacturer Part Number | RS51B0-TBSNWR |
| Manufacturer Website Address | http://www.zebra.com/ap/en.html |
| Manufacturer | Zebra Technologies Corporation |
| Product Model | RS5100 |
| Product Name | RS5100 Bluetooth Ring Scanner |
| Brand Name | Zebra |
Technical Information
| Barcode Symbology Supported |
|
| Connectivity Technology | Wireless |
| Light Source | Laser |
| Scanner Range | Standard Range |
| Drop Specification | Multiple 6 ft./1.8 m drops to concrete over the operating temperature range |
| Scan Pattern | Semi Omni-directional |
| Scan Engine Model | SE4770 |
| Scanning Capability | 1D |
| 2D | |
| Field of View (Horizontal) | 48° |
| Field of View (Vertical) | 30° |
| Reading Angle (Skew) | 60° |
| Reading Angle (Pitch) | 60° |
| Reading Angle (Roll) | 360° |
| Maximum Ambient Light | 107639 lux |
| Minimum Element Resolution (Code 39) | 0.08 mm |
| Maximum Element Resolution (Code 39) | 0.51 mm |
| Maximum Element Resolution (DataMatrix) | 0.25 mm |
| Minimum Element Resolution (PDF417) | 0.13 mm |
| Maximum Element Resolution (PDF417) | 0.17 mm |
Physical Characteristics
| Weight (Approximate) | 70 g |
| Form Factor | Wearable |
| Length | 61 mm |
| Width | 28 mm |
| Depth | 21 mm |
| Product Color | Black |
| Yellow | |
| Rugged | Yes |
Miscellaneous
| Application/Usage | Transportation |
| Logistics | |
| Manufacturing | |
| Distribution | |
| Warehouse | |
| Retail | |
| Hospitality | |
| Environmentally Friendly | Yes |
| Ingress Protection (IP) Rating | IP65 |
| SKU | RS51B0-TBSNWR |
| Brand | ZEBRA |
| Shipping Weight | 0.0800kg |
