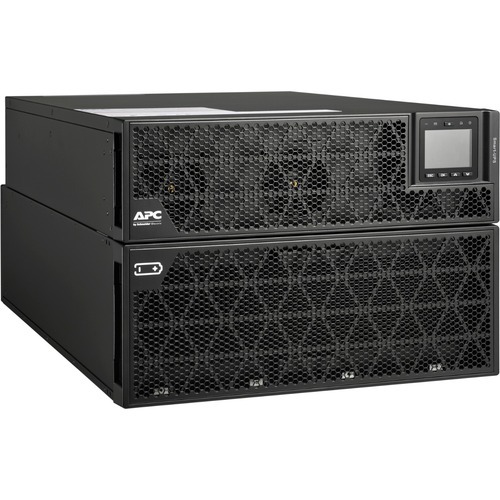

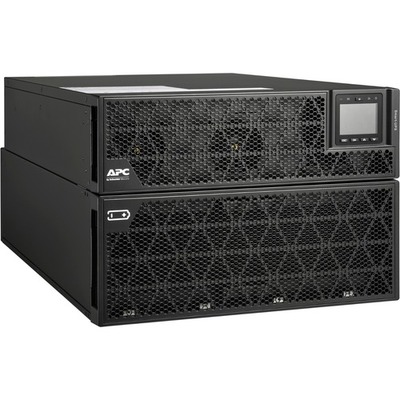

APC by Schneider Electric Smart-UPS Double Conversion Online UPS - 15 kVA - 7U Rack/Tower - 4 Hour Recharge - 230 V AC Input - 230 V AC, 380 V AC, 400 V AC, 415 V AC Output High density, double-conversion on-line power protection with scalable runtime Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

(SRTG15KXLI)

Controls/Indicators

Status Indicators

LED Status Indicators:

Quickly Understand Unit
Power Status With Visual Indicators.

Miscellaneous

Software Included

Powerchute

Interfaces/Ports

Serial Port	Yes
EPO Port	Yes
USB (HID Compliant) Port	Yes

Management

Alarm	Overload
	Low Battery
	On Battery

Battery Information

Battery Chemistry	Lead Acid
Battery Characteristics	Hot-swappable
Replaceable Battery	Yes
DC System Voltage	192 V DC
Typical Battery Recharge Time	4 Hour

Environmental Conditions

Maximum Operating Temperature	40°C
Maximum Operating Elevation	2.01 km
Maximum Storage Elevation	15.24 km
Storage Relative Humidity	0% - 95%
Storage Temperature	-15°C - 45°C
Sound Emission (A-Weighted)	58 dB(A)

Power Description

Input Voltage	230 V AC
Output Voltage	400 V AC
	230 V AC
	380 V AC
	415 V AC
Load Capacity	15 kVA
Waveform Type	Pure Sine Wave
Input Voltage Range	160 V AC - 285 V AC
Output Frequency	60 Hz
Input Frequency	70 Hz

Physical Characteristics

Weight (Approximate)	142.50 kg
Form Factor	Rack/Tower
Rack Height	7U
Height	306 mm
Width	400 mm
Depth	700 mm
Product Color	Black

General Information

Product Type	Double Conversion Online UPS
Manufacturer Part Number	SRTG15KXLI
Manufacturer Website Address	http://www.schneider-electric.com.au
Manufacturer	Schneider Electric SA
Product Name	Smart-UPS RT 15kVA 230V
Product Line	Smart-UPS
Product Series	RT
Brand Name	APC by Schneider Electric

Technical Information

Application/Usage	Industry
	Medical
	Server
	Business
	Voice/Data Network
	Critical System
	IT Equipment
	Network
Overload Protection	Yes
Plug/Connector Type	Hard Wire 5-wire (3P + N + E)
Transfer Time	0 ns

SKU	SRTG15KXLI
Barcode #	731304411888
Brand	APC
Shipping Weight	80.0000kg

Manufacturer Warranty
