APC Easy UPS On-Line, 1000VA/800W, Tower, 230V, 3x IEC C13 outlets, Intelligent Card Slot, LCD

SKU: SRV1KI | Brand: APC Brand

Key Features

<a>Replacement battery (1)</a> is available
1000VA/800W double-conversion on-line pure sine wave tower UPS
High operating efficiency in energy-saving ECO mode
Prolonged battery life with intelligent temperature-compensated charging

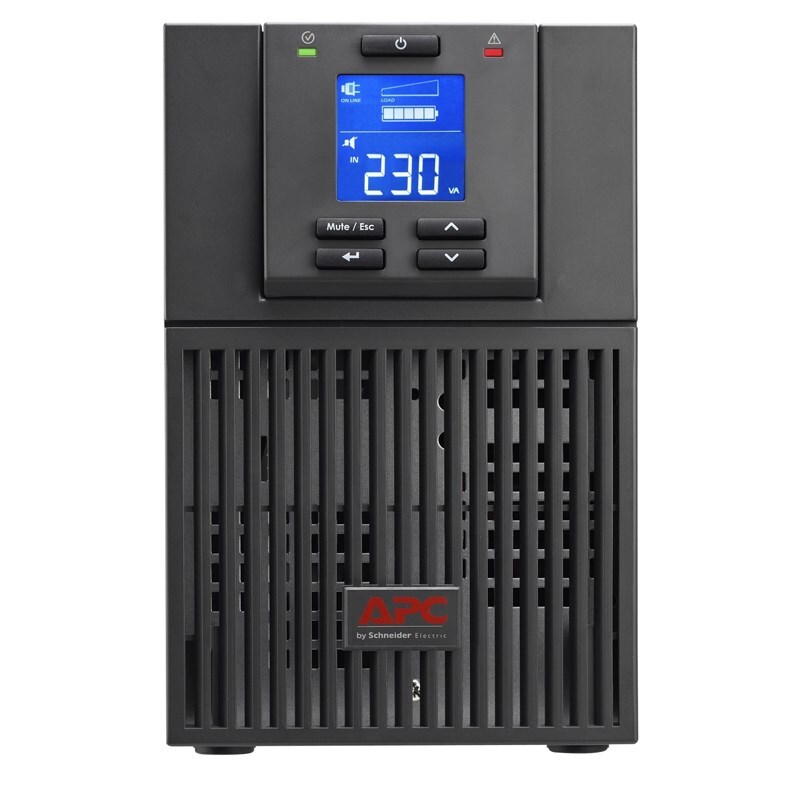

Easy-to-read LCD interface for detailed and accurate information on UPS status

Description

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity.
This 1000VA double-conversion on-line tower UPS provides pure sine wave power to support critical electronics during power disruptions.

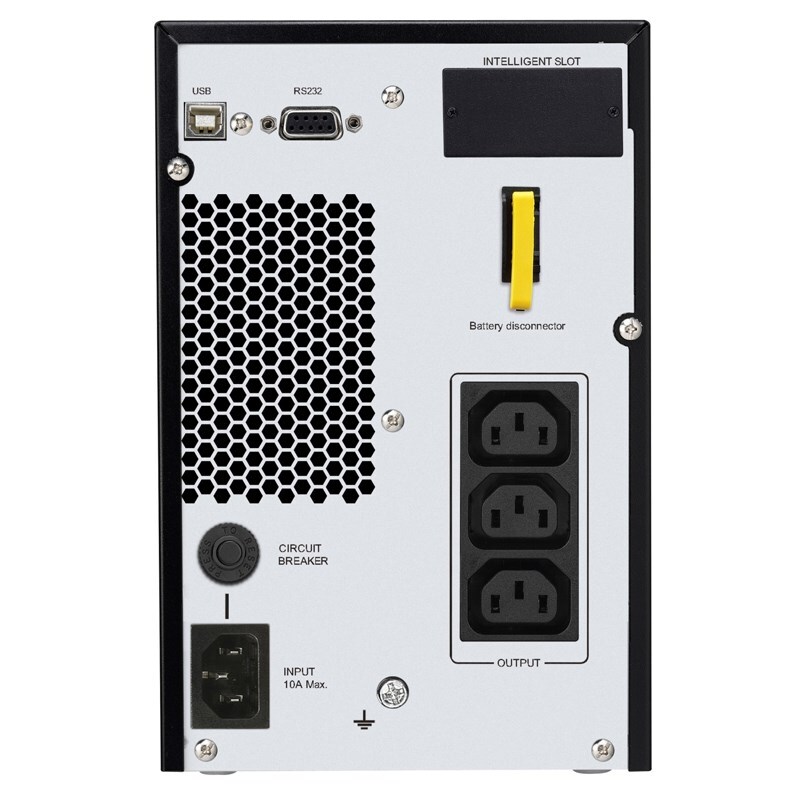

The SRV comes with IEC 320 C14 input and 3x IEC 320 C13 outlets.
The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9901l) that enables network-based UPS monitoring and management.
The UPS can connect to EcoStruxure IT or third-party centralized management platforms.
The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS.
The SRV UPS is compatible with replacement battery cartridge APCRBCV203.
The Easy UPS and the built-in lead-acid battery has a 2-year warranty.
Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.

Product Images

Downloads & Documents

Compatible Products & Accessories

Communication Options

AP9544

Device monitoring and management, Network Management Cards, ...

SRVSMB001

Easy UPS On-Line SRVS Modbus Card

VGL9901I

APC Easy UPS On-Line SRV Dry Contact Card/Relay I/O Card

Replacement battery

APCRBCV203

APC Replacement Battery Cartridge, VRLA, 9Ah, 24V DC, 2-year...

Subscriptions

FWENMC1P-ST1Y-DIGI

Subscription, Network Management Cards, 1 year, Secure NMC S...

FWENMC1P-ST2Y-DIGI

Subscription, Network Management Cards, 2 year, Secure NMC S...

FWENMC1P-ST3Y-DIGI

Subscription, Network Management Cards, 3 year, Secure NMC S...

FWENMC1P-ST4Y-DIGI

Subscription, Network Management Cards, 4 year, Secure NMC S...

FWENMC1P-ST5Y-DIGI

Subscription, Network Management Cards, 5 year, Secure NMC S...

FWENMC1P-ST6Y-DIGI

Subscription, Network Management Cards, 6 year, Secure NMC S...

(SRV1KI)

Specifications - SRV1KI

Overview

Presentation	High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.
Lead time	Usually in Stock

Main

Main Input Voltage	230 V AC 1 phase
Input voltage	220 V 240 V
Input Connection Type	IEC 60320 C14
Input voltage limits	110...285 V half load 160...280 V full load
Network frequency	40...70 Hz auto sensing
Output voltage	220 V 240 V
Rated power in W	800 W
rated power in VA	1000 VA
Output connection type	3 IEC 60320 C13
Bypass type	Internal bypass (automatic and manual)
Crest factor	3 : 1
Harmonic distortion	3 %
Maximum configurable power in VA	1000 VA
Maximum configurable power in W	800 W
UPS type	On-Line
Wave type	Sine wave
Efficiency	88 % (full load)
Output frequency	50/60 Hz +/- 3 Hz sync to mains

Complementary

Additional information	Configurable for 220 : 230 or 240 nominal output voltage
Battery type	Lead-acid internal included
Control panel	Multifunction LCD status and control console
Free slots	1
Alarm	Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
UPS connectivity	Serial port USB port Available expansion slot
Surge energy rate	600 J
Cable length	1.50 m
Number of cables	1
Colour	Black (RAL 7010)
Height	223 mm
Width	145 mm
Depth	288 mm
Net weight	9.3 kg
Mounting location	Front
Mounting support	Floor
Mounting preference	No preference
Mounting mode	Tower
USB compatible	Yes
Mounting position	Vertical
Max runtime	4 min
Number of power module filled slots	0
Number of power module free slots	0
Redundant	No
Range of product	Easy UPS On-Line
Product or component type	Uninterruptible power supply (UPS)

Environment

Product certifications	CE UKCA EAC TISI
Standards	EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018
Ambient air temperature for operation	0…40 °C
Ambient air temperature for storage	-20…50 °C
Storage altitude	0…15000 m
IP degree of protection	IP20
Relative humidity	0…95 % non-condensing
Storage Relative Humidity	0…95 % non-condensing
Acoustic level	50 dBA
Heat dissipation	372 Btu/h
Operating altitude	0...3000 m

Batteries & Runtime

Run Time	View Runtime Graph
Efficiency	View Efficiency Graph
Battery type	Lead-acid battery
Battery voltage	24 V
Extended runtime	0
Number of battery filled slots	1
Number of battery free slots	0
Battery recharge time	4 h
Battery life	3…5 year(s)
Replacement battery	APCRBCV203
Battery charger power	30 W rated
