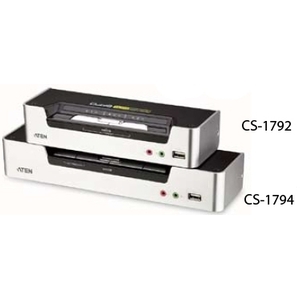

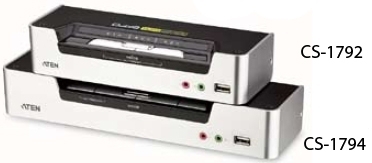

With its unique design and innovative features, the CubiQ™ CS1794 USB 2.0 HDMI KVMP™ Switch provides both style and functionality for today's multimedia SOHO environment. Combining a 4-port switch with a 2-port USB 2.0 hub, the CS1794 provides seamless HDMI signal switching between 4 PCs or other HDMI-enabled devices, such as gaming consoles, and allows users to share USB peripherals from a single console.

The CS1794 provides enhanced independent switching via front panel pushbuttons and keyboard hotkeys, and features Video DynaSync™ technology to ensure that HDMI display resolution is always optimized. With integrated digital audio, the CS1794 also allows users to experience high-definition sound, such as Dolby True HD and DTS HD Master Audio.
Ideal for multimedia applications in the office, the CubiQ™ CS1794 offers the ultimate in space-saving, streamlined KVM technology for the desktop.

Package Contents

1x CS1794 USB 2.0 HDMI KVMP™ Switch
4x KVM Cable (HDMI, USB, Audio; 1.8m/6ft)
1x Firmware Upgrade Cable
1x Power Adapter
1x User Instructions

4-port HDMI USB 2.0 KVMP™ Switch
One USB console controls four HDMI-interface computers and two additional USB devices
2-port USB 2.0 hub built in; fully compliant with the USB 2.0 specification

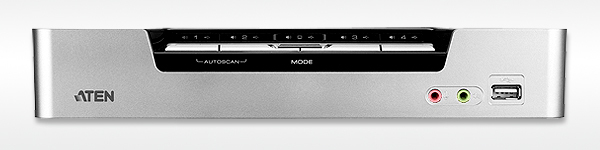

Independent switching of KVM, USB peripheral, and audio focus via front panel pushbuttons and hotkeys
HDMI digital monitor support - fully compliant with HDMI; also HDCP compliant
Dolby True HD and DTS HD Master Audio support
Superior video quality - supports 480i, 480p, 720p, 1080i, and 1080p(HDTV)/1920 x 1200(DVI)
Power on detection - If one of the computers is powered off, the CS1794 will automatically switch to the next powered-on computer
Supports widescreen resolutions
Multiplatform support - Windows, Linux,and Mac
Console mouse port emulation/bypass feature supports most mouse driver and multifunction mice
Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
Complete keyboard emulation for error-free booting
Mac keyboard support and emulation*
Auto Scan Mode for monitoring all computers and HDMI devices
Firmware Upgradable

* 1. PC keyboard combinations emulate Mac Keyboards
2. Mac keyboards only work with their own computers

4-Port USB 2.0 HDMI KVMP™ Switch

Computer Connections	4
Port Selection	Hotkey, Pushbutton
Connectors

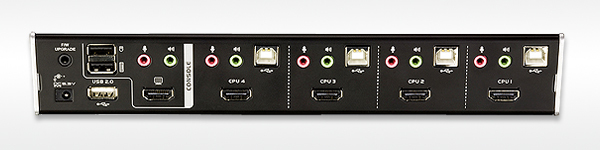

Console Ports	2 x USB Type A Female (rear panel) 1 x HDMI Female (Black) 2 x 3.5 mm Audio Jack Female (Green; 1 x front, 1 x rear) 2 x 3.5 mm Audio Jack Female (Pink; 1 x front, 1 x rear)
KVM Ports	4 x USB Type B Female 4 x HDMI Female (Black) 4 x 3.5 mm Audio Jack Female (Green) 4 x 3.5 mm Audio Jack Female (Pink)
Firmware Upgrade	1 x 3.5 mm Audio Jack Female (Black)
Power	1 x DC Jack
USB Hub	2 x USB Type A Female (1 x front panel; 1 x rear panel)
Switches
Selected	5 x Pushbutton
LEDs
Audio	5 (Green)
KVM	5 (Orange)
USB	5 (Green)
Emulation
Keyboard / Mouse	USB
Video	1920 x 1080 @ 60Hz / 1920 x 1200 @ 60Hz
Scan Interval	1-99 seconds (default: 5 sec.)
Power Consumption	DC5.3V:3.62W:43BTU
Environmental
Operating Temperature	0-50°C
Storage Temperature	-20-60°C
Humidity	0-80% RH, Non-condensing
Physical Properties
Housing	Metal, Plastic
Weight	0.53 kg ( 1.17 lb )
Dimensions (L x W x H)	26.23 x 7.68 x 4.40 cm (10.33 x 3.02 x 1.73 in.)
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Firmware

Description	Ver.	Release Date	File Name
Firmware Upgrade	v1.3.123	2018-04-02	cs1792_1794_v1.3.123.zip
Firmware Upgrade	v1.3.122	2017-09-29	cs1792_1794_v1.3.122.zip
Firmware Upgrade	v1.2.119	2017-08-23	cs1792_1794_v1.2.119.zip
Firmware Upgrade	v1.2.118	2015-11-12	cs1792_1794_v1.2.118.zip
Firmware Upgrade	v1.2.114	2014-11-26	cs1792_1794_v1.2.114.zip
Firmware Upgrade	v1.2.113	2013-11-27	cs1792_1794_v1.2.113.zip
Firmware Upgrade	v1.1.101	2009-04-01	cs1794_1792_v1.1.101.zip

(CS1794-AT-U)

Specifications

Compatible/Used for
Type	KVMP™ Switch
Warranty	2 Years
Computer Connections	4
Emulation	USB Keyboard / Mouse
Port Selection	Hotkey, Pushbutton
Power Consumption	DC 5.3 V, 4.8 W
Scan Interval	1-99 Seconds (Default: 5 sec.)
Switches	5 x Pushbutton
Video	1080p / 1920 x 1200 (DVI)

SKU	CS1794-AT-U
Barcode #	672792100260
Brand	ATEN
Shipping Weight	2.7600kg
Shipping Width	0.100m
Shipping Height	0.210m
Shipping Length	0.330m
Shipping Cubic	0.006930000m3
