ATEN SKU CS22H-AT

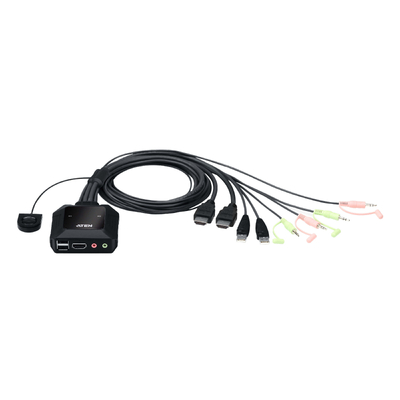

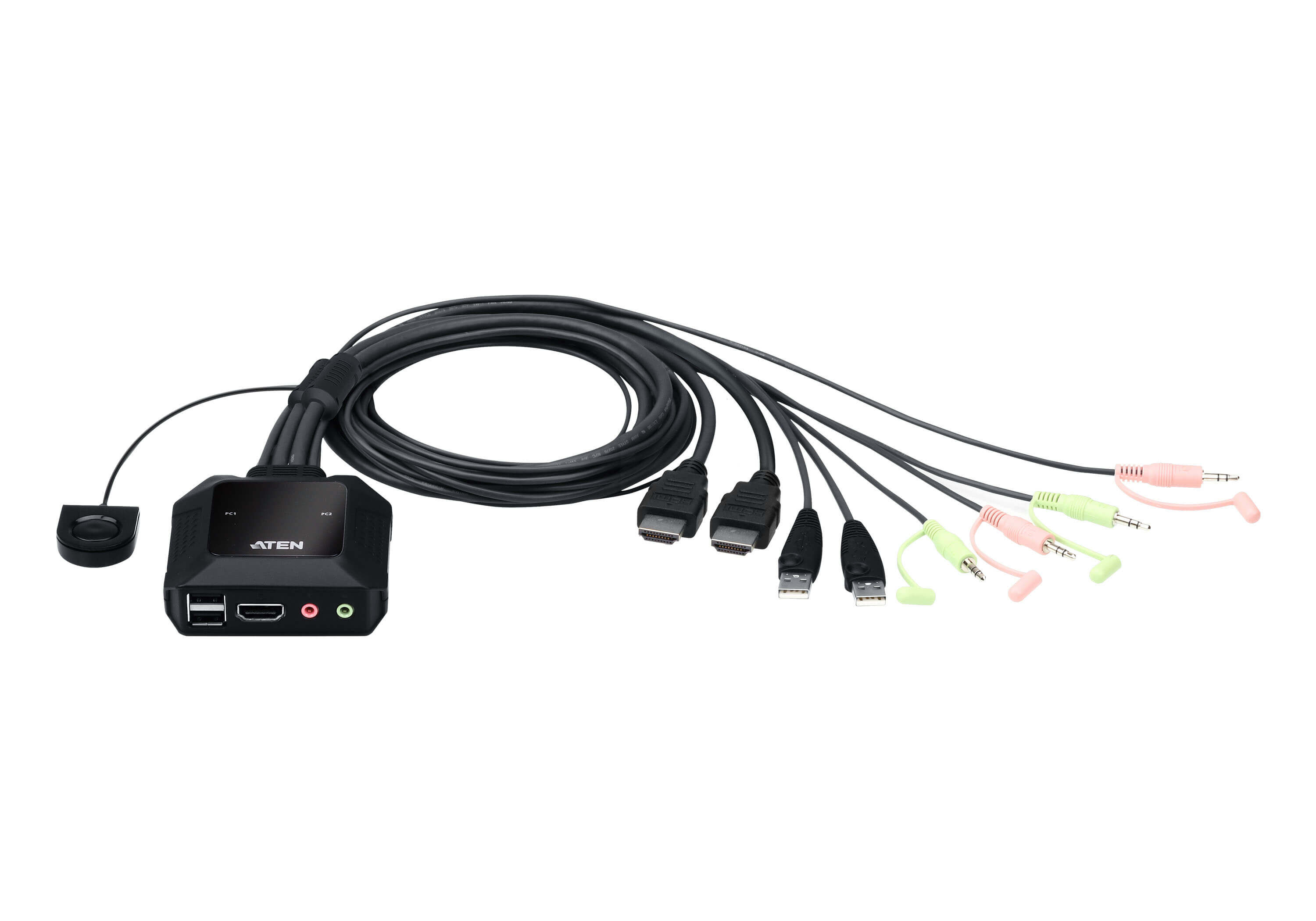

ATEN CS22H-AT 2-Port USB 4K 60Hz HDMI Cable KVM Switch

The ATEN CS22H-AT cable KVM switch lets one USB keyboard, mouse and HDMI monitor control two HDMI computers through an integrated all-in-one cable design.

Video up to 4K DCI 4096 x 2160 at 60Hz, USB peripheral sharing, remote pushbutton selection and bus-powered operation support a tidy dual-computer workspace.

2 HDMI computers4K DCI @ 60HzRemote port selectorManufacturer warrantyDeviceDeal authorised ATEN reseller

ATEN CS22H-AT 2-Port USB 4K 60Hz HDMI Cable KVM Switch

Product overview

Two-computer HDMI control

One USB keyboard, mouse and HDMI display can switch between two HDMI computers.

4K DCI at 60Hz

The supplied source lists video up to 4096 x 2160 at 60Hz with HDMI and HDCP 2.2 compliance.

Integrated remote selector

A wired pushbutton provides computer selection while the compact KVM body can be positioned away from the desktop.

Source review: The switch is bus powered, but the source notes that some installations may require external power through the USB Micro-B power port. The required USB Micro-B cable is a separate purchase.

Frequently asked questions

How many computers does the CS22H-AT control?

The supplied source lists two HDMI computers.

What maximum resolution is listed?

The source lists 4K DCI 4096 x 2160 at 60Hz.

Can a USB peripheral be shared?

Yes. The source states that the console USB ports can be used for USB peripheral sharing.

Does it need a power adapter?

It is designed to be bus powered, although the source notes that some installations may need external USB Micro-B power and a separately purchased cable.

What warranty applies?

The product is supplied under the applicable ATEN manufacturer warranty in Australia through DeviceDeal as an authorised ATEN reseller.

(CS22H-AT)

Features

ATEN CS22H-AT 2-Port USB 4K 60Hz HDMI Cable KVM Switch

Console sharing

2 HDMI computers
1 USB keyboard
1 USB mouse
1 HDMI monitor
USB peripheral sharing

Video and control

4096 x 2160 @ 60Hz
HDMI compliant
HDCP 2.2 compliant
Remote port selector
USB hot-plugging

Installation

Integrated cable design
Plug and play
Windows, Mac and Linux support
Bus powered
Hook for desk organisation

Allow for optional USB Micro-B power if the connected equipment does not provide sufficient bus power.

Technical specifications

ATEN CS22H-AT 2-Port USB 4K 60Hz HDMI Cable KVM Switch

Product details
Brand	ATEN
Model / SKU	CS22H-AT
Product type	2-port USB HDMI cable KVM switch
Computer connections	2
Console and video
Console	USB keyboard; USB mouse; HDMI monitor
Computer interface	USB; HDMI
Maximum video	4096 x 2160 @ 60Hz
Standards stated	HDMI; HDCP 2.2
Operation and power
Port selection	Remote port selector
USB	Hot-plugging and peripheral sharing stated
Primary power	USB bus powered
Optional power	USB Micro-B power port; cable purchased separately when required
Platform support
Operating systems stated	Windows; Mac; Linux

SKU	CS22H-AT
Barcode #	4710469340468
Brand	Aten
Shipping Weight	0.4400kg
Shipping Width	0.062m
Shipping Height	0.212m
Shipping Length	0.156m

Warranty information

ATEN CS22H-AT 2-Port USB 4K 60Hz HDMI Cable KVM Switch

ATEN Manufacturer Warranty

DeviceDeal is an authorised ATEN reseller. This product is supplied under the applicable ATEN manufacturer warranty in Australia. Please contact DeviceDeal to confirm the warranty period and conditions for SKU CS22H-AT.
