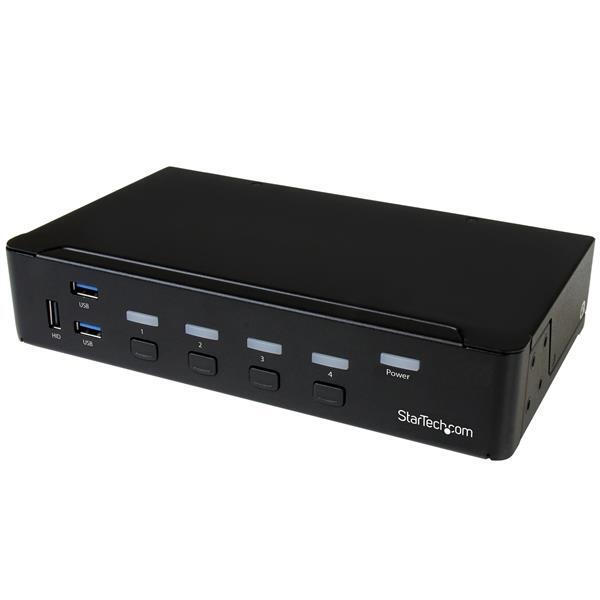

This 4-Port USB 3.0 HDMI® KVM switch lets you control four HDMI computers with a single monitor, keyboard and mouse. The KVM also features 3.5 mm audio and a built-in 3-port USB 3.0 hub.

Convenient and cost-effective USB 3.0 peripheral sharing

This KVM switch offers a built-in 3-port USB 3.0 hub that's separate from your HID keyboard and mouse, so you can share USB peripheral devices between each connected computer and avoid the expense of separate equipment. The USB 3.0 hub automatically switches your connected USB devices to the selected computer, saving you the hassle of disconnecting and reconnecting peripherals.

With support for USB 3.0, you can achieve data transfer rates up to 5Gbps, to ensure flawless performance for your USB peripherals - great for quickly transferring data to external USB 3.0 drives.

HD picture quality

Offering support for high-definition 1080p resolutions, this 4-port HDMI KVM switch has the ability to drive HDMI displays with crystal clarity, making it ideal for graphical applications that require 1920 x 1080 video resolutions.

Complete multimedia control

The KVM switch features auxiliary 3.5 mm audio ports that enable you to share independent analog audio, from each of your connected computers, with your desktop speaker set. Independent audio, along with 1080p HDMI video, gives you full multimedia control between different computers, making this KVM perfect for creative professional applications such as video and sound design or editing.

The SV431HDU3A2 is TAA compliant and backed by a StarTech.com 2-year warranty with free lifetime technical support.

Rackmount your KVM switch

If you’d like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.

(SV431HDU3A2)

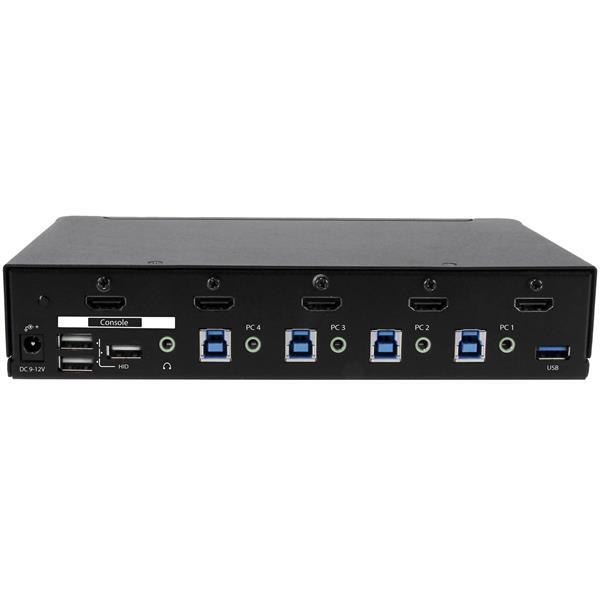

Connector(s)
Console Interface(s)3.5 mm Mini-Jack (3 Position) Female Output
HDMI (19 pin) Female Output
USB Type-A (4 pin) USB 2.0 Female
Host Connectors3.5 mm Mini-Jack (3 Position) Female Input
HDMI (19 pin) Female Input
USB Type-B (9 pin) USB 3.0 Female
Other Interface(s)USB Type-A (9 pin) USB 3.0 Female
Environmental
Humidity0~80% RH Non-Condensing
Operating Temperature0°C to 40°C (32°F to 104°F)
Storage Temperature-10°C to 60°C (14°F to 140°F)
Hardware
AudioYes
Cables IncludedNo
Daisy-ChainNo
KVM Ports4
Number of Monitors Supported1
PC InterfaceUSB 3.0
PC Video TypeHDMI
Rack-MountableOptional
Indicators
LED Indicatorsport selection/link LEDs
power LED
Packaging Information
Package Height85 mm [3.3 in]
Package Length24.7 cm [9.7 in]
Package Width29.7 cm [11.7 in]
Shipping (Package) Weight1.6 kg [3.6 lb]
Performance
Audio Specifications2-Channel Stereo supported
Hot-Key SelectionYes
IP ControlNo
Maximum Cable Length50 ft. (15.24 m)
Maximum Digital Resolutions1920 x 1080 @ 60 Hz
MTBF142000 hours
On-Screen DisplayNo
Port Selection SupportPush Button and Hotkeys
Physical Characteristics
Product Height4.3 cm [1.7 in]
Product Length22 cm [8.7 in]
Product Width13 cm [5.1 in]
Weight of Product1.1 kg [2.4 lb]
Power
Input Current0.6 A
Input Voltage100 - 240 AC
Output Current1.5 A
Output Voltage12 DC
Plug TypeM
Power Consumption (In Watts)18
What's in the Box
Included in Package4-port HDMI KVM switch
quick start guide
rubber feet
universal power adapter (NA/EU/UK/AU)
SKU SV431HDU3A2
Barcode # 65030863735
Brand STARTECH
Shipping Weight 1.6100kg
Shipping Width 0.100m
Shipping Height 0.050m
Shipping Length 0.290m
Shipping Cubic 0.001450000m3
