StarTech.com SV231DD2DUA

2-port dual-DVI KVM with audio and USB 2.0 hub

Control two dual-DVI computers with two displays, one keyboard and mouse, audio plus shared USB 2.0 peripherals, using push-button or hotkey switching.

2 computers / 2 DVI displays1920×1200USB 2.0 hub + audio3-year warranty

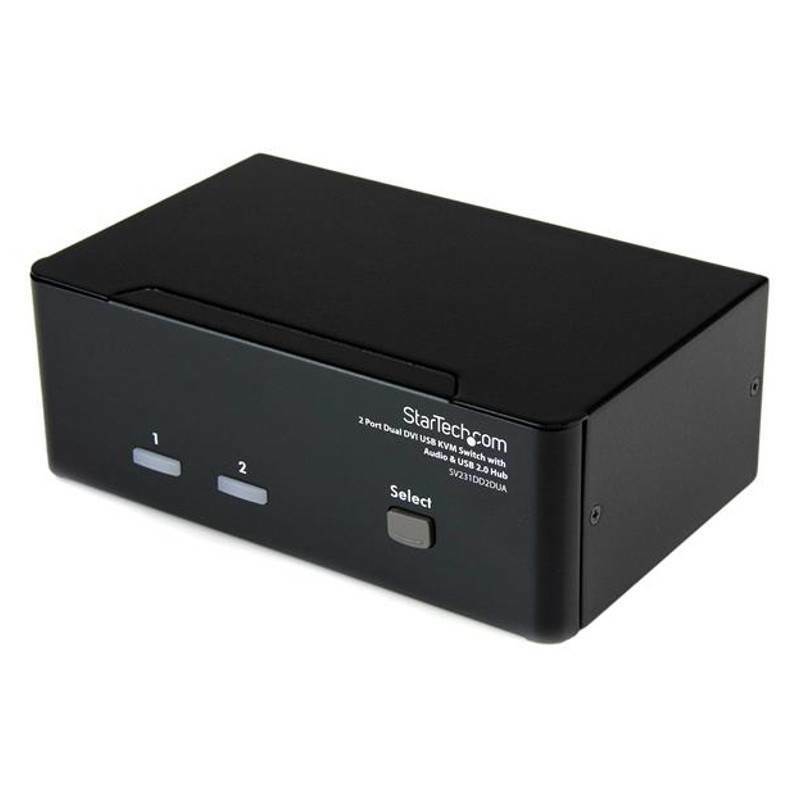

StarTech SV231DD2DUA 2-port dual DVI USB KVM switch

Key capabilities

Dual-monitor DVI control

Switch two dual-display computers through two DVI monitor outputs.

1920×1200 digital video

Supports single-link digital DVI resolutions up to 1920×1200.

USB 2.0 peripheral sharing

Integrated USB hub allows additional USB peripherals to follow the selected computer.

Audio and hotkey switching

Shares speakers/microphone and supports front-panel or keyboard hotkey selection.

What to know before buying

Although the connectors use DVI-I shells, this KVM supports DVI-D digital signalling only. Use DVI-D cabling throughout wherever possible.

Australian version and manufacturer warranty

This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com 3-year manufacturer warranty in Australia.

Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

How many computers can SV231DD2DUA control?

Two.

How many monitors are supported?

Two DVI monitors.

What maximum digital resolution is supported?

1920×1200.

Does it support analogue DVI signalling?

No. StarTech specifies DVI-D digital signalling only.

Does it include a USB peripheral hub?

Yes, USB 2.0 peripheral sharing is built in.

Does it switch audio?

Yes, analogue audio and microphone connections are supported.

How can ports be selected?

Front-panel push buttons or keyboard hotkeys.

What warranty applies in Australia?

The current official StarTech.com warranty for this exact model is 3 years, subject to StarTech.com terms and product assessment.

(SV231DD2DUA)

Features and highlights

Dual-monitor DVI control

Switch two dual-display computers through two DVI monitor outputs.

1920×1200 digital video

Supports single-link digital DVI resolutions up to 1920×1200.

USB 2.0 peripheral sharing

Integrated USB hub allows additional USB peripherals to follow the selected computer.

Audio and hotkey switching

Shares speakers/microphone and supports front-panel or keyboard hotkey selection.

2 computers / 2 DVI displays
1920×1200
USB 2.0 hub + audio
3-year warranty

Warranty confidence: Official StarTech.com 3-year manufacturer warranty in Australia, subject to StarTech.com terms and assessment.

Specifications

Verified specifications for StarTech SV231DD2DUA.

Warranty Information

Warranty	3 Years

Hardware

Audio	Yes
Cables Included	No
Daisy-Chain	No
KVM Ports	2
Number of Monitors Supported	2
PC Interface	USB
PC Video Type	DVI
Rack-Mountable	No

Performance

DVI Support	Yes - Single Link
Hot-Key Selection	Yes
IP Control	No
Maximum Digital Resolutions	1920 x 1200
Maximum Number of Users	1
MTBF	144000 hours
On-Screen Display	No
Port Selection Support	Push Button and Hotkeys

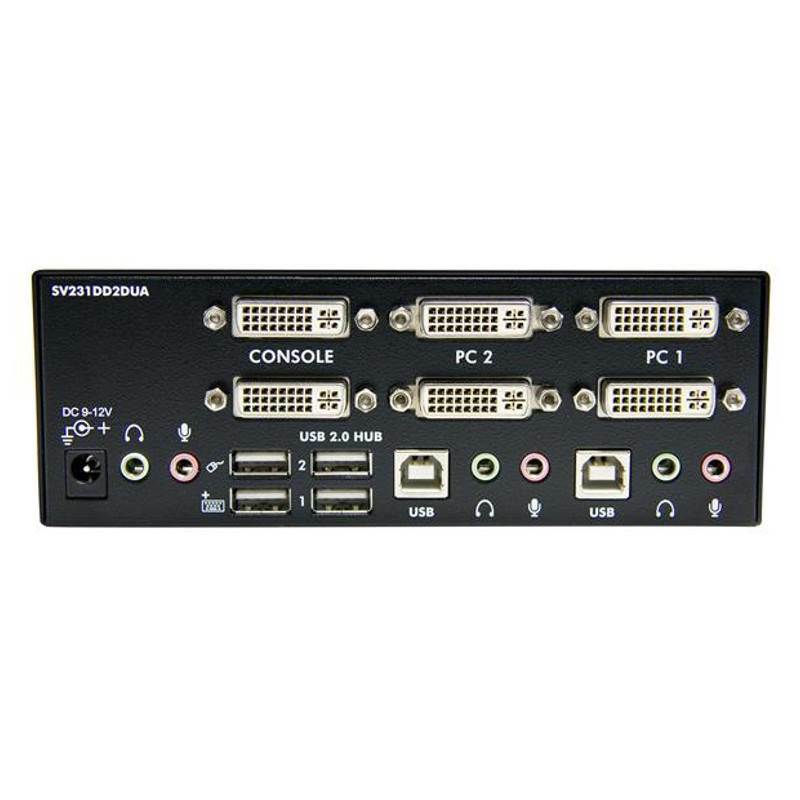

Connector(s)

Console Interface(s)	2 - 3.5 mm Mini-Jack (3 Position) Female
Console Interface(s)	2 - DVI-I (29 pin) Female
Console Interface(s)	4 - USB Type-A (4 pin) USB 2.0 Female
Host Connectors	2 - USB B (4 pin) Female
Host Connectors	4 - 3.5 mm Mini-Jack (3 Position) Female
Host Connectors	4 - DVI-I (29 pin) Female

Software

OS Compatibility	OS independent; No software or drivers required

Special Notes / Requirements

Note	This KVM switch supports DVI-D (digital) signaling only and it is recommended wherever possible to use DVI-D cabling across all PC to KVM and KVM to Console connections to ensure proper function. Please contact technical support if you require assistance identifying the proper cables.

Indicators

LED Indicators	1 - Green - Power
LED Indicators	4 - Green - Host Online, Red - Host Selected

Power

Center Tip Polarity	Positive
Input Current	0.8A
Input Voltage	100 - 240 AC
Output Current	1.5A
Output Voltage	12 DC
Plug Type	M
Power Consumption (In Watts)	18
Power Source	AC Adapter Included

Environmental

Humidity	90% RH
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)

Physical Characteristics

Color	Black
Enclosure Type	Steel
Product Depth	3.9 in [100 mm]
Product Height	2.2 in [5.7 cm]
Product Length	6.4 in [16.3 cm]
Product Width	6.3 in [16 cm]
Weight of Product	27.5 oz [779 g]

Packaging Information

Package Height	2.8 in [7.2 cm]
Package Length	11.6 in [29.5 cm]
Package Width	7.7 in [19.6 cm]
Shipping (Package) Weight	2.8 lb [1.3 kg]

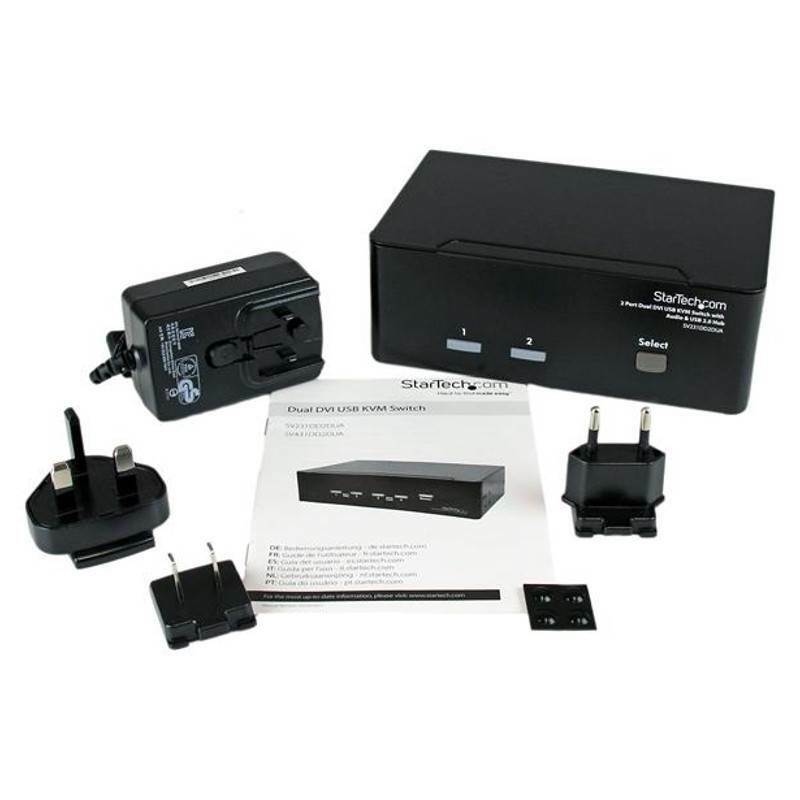

What's in the Box

Included in Package	1 - Two Port Dual DVI KVM
Included in Package	1 - Rubber Feet
Included in Package	1 - Universal Power Adapter (NA/JP, EU, UK, ANZ)
Included in Package	1 - User Manual

SKU	SV231DD2DUA
Barcode #	65030835718
Brand	STARTECH
Shipping Weight	1.3000kg
Shipping Width	0.200m
Shipping Height	0.070m
Shipping Length	0.290m
Shipping Cubic	0.004060000m3
