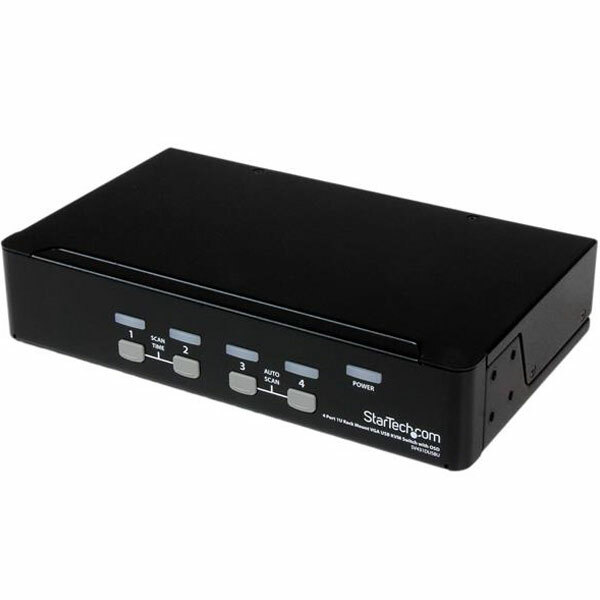

StarTech.com | SV431DUSBU

4-port VGA USB KVM with on-screen display

Control four USB/VGA computers from one VGA monitor, keyboard and mouse, with on-screen display, hotkey switching, auto scan and optional 1U rack mounting.

4 computers1920 × 1440 VGAOn-screen display3-year warranty

Key capabilities

On-screen display

OSD provides an additional way to identify and select connected computers.

1920 × 1440 VGA

Supports up to 1920 × 1440 at 60Hz, with 1920 × 1200 widescreen support.

Multiple switching methods

Choose computers by push button, keyboard hotkeys or the on-screen display.

Server-rack option

The slim design can be rack mounted with the optional SV431RACK bracket.

What to know before buying

KVM host cables are not included. The product description states that SV431DUSBU works with specific 2-in-1 VGA and USB KVM cables sold separately, so compatible cabling should be selected for each connected computer.

Australian version and manufacturer warranty

3-year StarTech.com manufacturer warranty. This SV431DUSBU is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com 3-year manufacturer warranty in Australia. Retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

How many computers can SV431DUSBU control?

Up to four USB/VGA computers.

Does it have an on-screen display?

Yes. OSD is supported for computer selection and control.

What maximum VGA resolution is supported?

Up to 1920 × 1440 at 60Hz, with 1920 × 1200 widescreen support.

How can I switch between computers?

By front-panel push buttons, keyboard hotkeys or the on-screen display.

Are KVM cables included?

No. The product requires compatible 2-in-1 VGA/USB KVM cables, sold separately.

Can it be rack mounted?

Yes, with the optional StarTech SV431RACK 1U rackmount bracket.

Does it require drivers?

No. The supplied specification lists OS-independent operation with no software or drivers required.

What warranty applies in Australia?

The Australian version supplied by DeviceDeal is covered by the official StarTech.com 3-year manufacturer warranty in Australia, subject to StarTech.com terms and product assessment.

(SV431DUSBU)

Features and highlights

On-screen display

OSD provides an additional way to identify and select connected computers.

1920 × 1440 VGA

Supports up to 1920 × 1440 at 60Hz, with 1920 × 1200 widescreen support.

Multiple switching methods

Choose computers by push button, keyboard hotkeys or the on-screen display.

Server-rack option

The slim design can be rack mounted with the optional SV431RACK bracket.

Key highlights

On-screen display
1920 × 1440 VGA
Multiple switching methods
Server-rack option

Warranty confidence

3-year manufacturer warranty
Official StarTech.com manufacturer warranty in Australia for this DeviceDeal-supplied Australian version, subject to StarTech.com warranty terms and product assessment.

Specifications

Technical specifications for StarTech SV431DUSBU. Values and conditions are organised from the supplied exact-product information and verified exact-SKU StarTech source where required.

Warranty Information

Warranty	3 Years

Hardware

Audio	No
Cables Included	No
Daisy-Chain	Yes
KVM Ports	4
Number of Monitors Supported	1
PC Interface	USB
PC Video Type	VGA
Rack-Mountable	Optional

Performance

DVI Support	No
Hot-Key Selection	Yes
IP Control	No
Maximum Analog Resolutions	1920 x 1440@60Hz (1920 x 1200@60Hz - Wide Screen)
Maximum Number of Users	1
MTBF	143000 hours
On-Screen Display	Yes
Port Selection Support	Push Button, Hotkeys, and OSD (On Screen Display)
Wide Screen Supported	Yes

Connector(s)

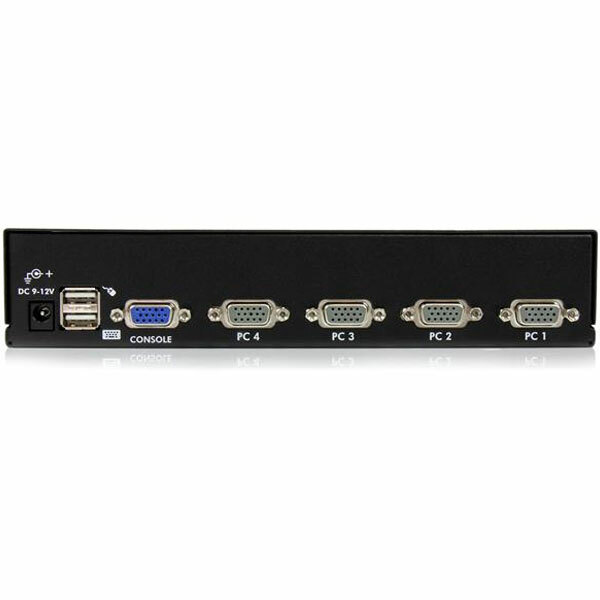

Console Interface(s)	1 - VGA (15 pin, High Density D-Sub) Female 2 - USB Type-A (4 pin) USB 2.0 Female
Host Connectors	4 - VGA (15 pin, High Density D-Sub) Female

Software

OS Compatibility	OS independent; No software or drivers required

Indicators

LED Indicators	1 - Green - Power 4 - Green - Online PC 4 - Red - Selected PC

Power

Center Tip Polarity	Positive
Input Current	0.2A
Input Voltage	100 - 240 AC
Output Current	0.6A
Output Voltage	9 DC
Plug Type	M
Power Consumption (In Watts)	5.4
Power Source	AC Adapter Included

Environmental

Humidity	80% RH
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)

Physical Characteristics

Color	Black
Enclosure Type	Steel
Product Depth	5.1 in [130 mm]
Product Height	1.7 in [4.3 cm]
Product Width	8.7 in [22 cm]
Weight of Product	33.8 oz [957 g]

Packaging Information

Package Height	3.5 in [89 mm]
Package Length	8.5 in [21.5 cm]
Package Width	16.2 in [41.1 cm]
Shipping (Package) Weight	3.5 lb [1.6 kg]

What's in the Box

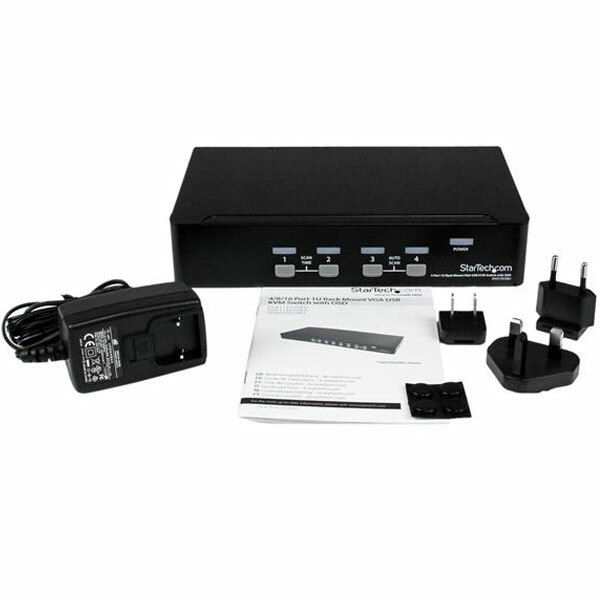

Included in Package	1 - 4-port KVM switch 4 - foot pads 1 - universal power adapter (NA/EU/UK/AU) 1 - instruction manual

SKU	SV431DUSBU
Barcode #	65030837231
Brand	STARTECH
Shipping Weight	1.6200kg
Shipping Width	0.210m
Shipping Height	0.090m
Shipping Length	0.412m
Shipping Cubic	0.007787000m3
