ATEN SKU CS17916

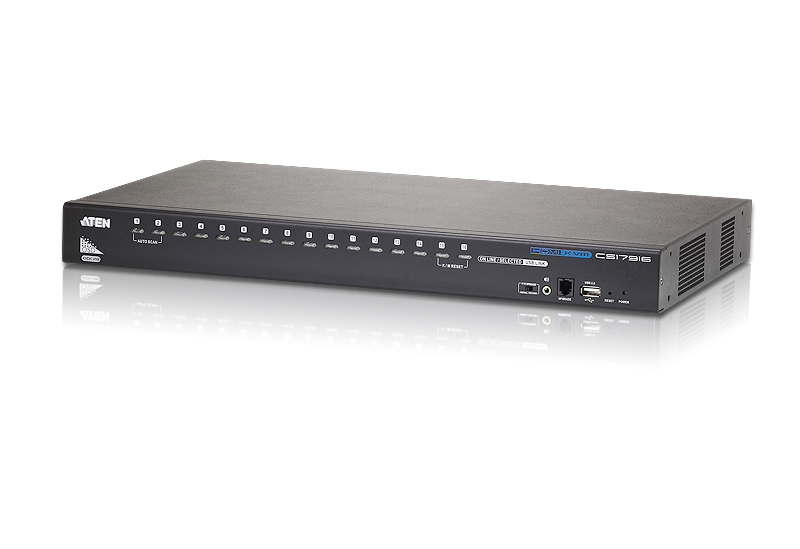

ATEN CS17916 16-Port Rackmount HDMI KVM Switch

The ATEN CS17916 consolidates keyboard, mouse, HDMI video and audio access to as many as 16 computers from one USB console.

Two-level cascading supports up to 256 computers, while multi-display stacking allows up to eight switches to coordinate computers fitted with multiple video cards.

16 HDMI computersCascade up to 256Multi-display stacking3-year warrantyDeviceDeal authorised ATEN reseller

ATEN CS17916 16-Port Rackmount HDMI KVM Switch

Product overview

Sixteen HDMI computers

One USB keyboard, USB mouse and HDMI monitor console can access up to 16 directly connected computers.

Cascade to 256

The supplied description lists two cascade levels for control of up to 256 computers.

Multi-display installations

Up to eight switches can be stacked using standard USB cables when each computer has multiple video cards.

Source review: The supplied record does not provide a separate structured connector, video-resolution or physical-dimensions table for this SKU.

Frequently asked questions

How many computers connect directly to the CS17916?

The supplied source lists 16 direct HDMI computer connections.

How many computers can be controlled through cascading?

The source lists up to 256 computers through two cascade levels.

What does the multi-display feature do?

The source states that up to eight switches can be stacked for computers equipped with multiple video cards.

How are computers selected?

The supplied description identifies ATEN on-screen display access and OSD configuration backup and restore.

What warranty is supplied?

The source lists a three-year limited ATEN manufacturer warranty.

(CS17916)

Features

ATEN CS17916 16-Port Rackmount HDMI KVM Switch

Computer control

16 direct HDMI computers
Single USB keyboard and mouse console
Two cascade levels
Up to 256 computers

Multi-display

Stack up to 8 switches
Uses standard USB cables
Designed for computers with multiple video cards

Management and audio

On-screen display
OSD configuration backup and restore
Multimedia keyboard support
Audio enabled
2 custom KVM cables included

Confirm the required HDMI KVM cables, cascade layout and display resolution before purchase because those details are not supplied in a structured specification table.

Technical specifications

ATEN CS17916 16-Port Rackmount HDMI KVM Switch

Product details
Brand	ATEN
Model / SKU	CS17916
Product type	16-port rackmount USB HDMI KVM switch
Control capacity
Direct computer connections	16
Maximum via cascade	256
Cascade levels	2
Console	USB keyboard; USB mouse; HDMI monitor
Multi-display and management
Multi-display stacking	Up to 8 switches
Stacking connection stated	Standard USB cables
Management	OSD with configuration backup and restore
Audio	Supported; two speaker sets stated, one at a time
Included cables
KVM cables	2 custom KVM cables included, as stated in the supplied product name

SKU	CS17916
Barcode #	672792005572
Brand	Aten
Shipping Weight	3.4900kg

Warranty information

ATEN CS17916 16-Port Rackmount HDMI KVM Switch

3-Year Limited ATEN Manufacturer Warranty

DeviceDeal is an authorised ATEN reseller. This product is covered by a three-year limited ATEN manufacturer warranty in Australia, as listed in the supplied product information.
