ATEN SKU CS782DP-AT

ATEN CS782DP-AT 2-Port USB 4K DisplayPort Audio KVM

The ATEN CS782DP-AT lets one USB keyboard, USB mouse, DisplayPort display and audio console access two DisplayPort computers.

Video up to 4096 x 2160 at 60Hz, premium audio and hotkey, mouse or remote-selector switching suit graphics, animation and video-editing workstations.

2 DisplayPort computers4K @ 60HzThree switching methods2-year warrantyDeviceDeal authorised ATEN reseller

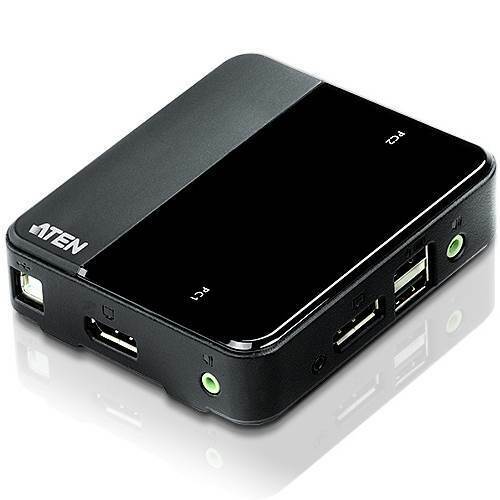

ATEN CS782DP-AT 2-Port USB 4K DisplayPort Audio KVM shown in the supplied second product image

Product overview

4K DisplayPort switching

The supplied specification lists video up to 4096 x 2160 at 60Hz.

Three selection methods

Switch between the two computers using hotkeys, mouse control or the wired remote selector.

Compact multimedia console

The streamlined switch shares a DisplayPort video console with USB keyboard/mouse and audio.

Source review: The supplied source states that cables are included but does not list their quantity, connector breakdown or length.

Frequently asked questions

How many computers does the CS782DP-AT control?

The supplied source lists two DisplayPort computers.

What maximum video is listed?

The source lists 4096 x 2160 at 60Hz.

How can ports be selected?

The supplied specification lists hotkeys, mouse switching and a remote port selector.

Is audio supported?

Yes. The supplied description identifies premium audio support.

What warranty is supplied?

The source lists a two-year limited ATEN manufacturer warranty.

(CS782DP-AT)

Features

ATEN CS782DP-AT 2-Port USB 4K DisplayPort Audio KVM

Console sharing

2 computer connections
DisplayPort console
USB keyboard and mouse
Audio support
Cables included

Video

4096 x 2160 @ 60Hz
4K UHD support
Designed for visually intensive applications

Operation

Hotkey switching
Mouse switching
Remote port selector
Scan intervals: 3, 5, 10 or 20 seconds

Confirm the supplied cable types and lengths against the intended computer and desk layout before purchase.

Technical specifications

ATEN CS782DP-AT 2-Port USB 4K DisplayPort Audio KVM

Product details
Brand	ATEN
Model / SKU	CS782DP-AT
Product type	2-port USB DisplayPort/audio KVM switch
Computer connections	2
Video and operation
Video	4096 x 2160 @ 60Hz
Port selection	Hotkey; mouse; remote port selector
Keyboard / mouse emulation	USB
Scan interval	3, 5, 10 or 20 seconds; default 5 seconds
Power and environment
Power consumption	DC 5V; 4W
Operating temperature	050°C
Storage temperature	-2060°C
Humidity	080% RH, non-condensing
Physical properties
Weight	0.12kg
Dimensions (L x W x H)	9.37 x 9.30 x 2.68cm

SKU	CS782DP-AT
Barcode #	672792006722
Brand	ATEN
Shipping Weight	0.8000kg
Shipping Width	0.060m
Shipping Height	0.170m
Shipping Length	0.240m
Shipping Cubic	0.002448000m3

Warranty information

ATEN CS782DP-AT 2-Port USB 4K DisplayPort Audio KVM

2-Year Limited ATEN Manufacturer Warranty

DeviceDeal is an authorised ATEN reseller. This product is covered by a two-year limited ATEN manufacturer warranty in Australia, as listed in the supplied product information.
