StarTech.com | SV411KUSB

4-port USB VGA KVM switch kit with audio

Control up to four USB computers from one VGA monitor, keyboard and mouse, with audio switching, hotkey control and four sets of host cables included.

4 computers2048 × 1536 VGAAudio switching2-year warranty

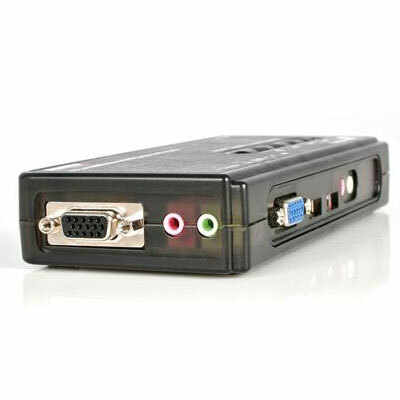

StarTech SV411KUSB 4-port USB VGA KVM switch kit with audio

Key capabilities

Four-computer control

Switch one VGA/USB console between up to four connected computers.

Audio switching

3.5 mm speaker and microphone connections are included for multimedia switching.

2048 × 1536 video

Supports analog resolutions up to 2048 × 1536.

USB-powered design

Draws power from the connected computers, so no external AC adapter is required.

What to know before buying

This is a single-monitor VGA KVM. The kit includes four 4 ft VGA/USB KVM cables and four 4 ft 3.5 mm audio cables, and switching is available by push button or keyboard hotkeys.

Australian version and manufacturer warranty

2-year StarTech.com manufacturer warranty. This SV411KUSB is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com 2-year manufacturer warranty in Australia. Retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

How many computers can SV411KUSB control?

Up to four USB-enabled computers.

What display connection does it use?

It uses VGA for the shared monitor connection.

What maximum resolution is supported?

The maximum listed analog resolution is 2048 × 1536.

Does it switch audio as well?

Yes. The KVM supports audio and includes 3.5 mm speaker/microphone cabling.

How can I switch between computers?

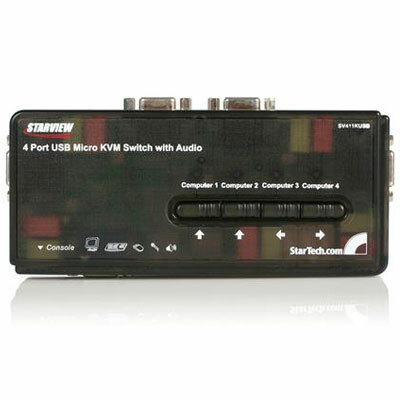

Port selection is supported by the top-panel push button and keyboard hotkeys.

Are host cables included?

Yes. The package includes four 4 ft VGA/USB KVM cables and four 4 ft audio cables.

Does it need a power adapter?

No. The supplied specification lists the KVM as USB-powered.

What warranty applies in Australia?

The Australian version supplied by DeviceDeal is covered by the official StarTech.com 2-year manufacturer warranty in Australia, subject to StarTech.com terms and product assessment.

(SV411KUSB)

Features and highlights

Four-computer control

Switch one VGA/USB console between up to four connected computers.

Audio switching

3.5 mm speaker and microphone connections are included for multimedia switching.

2048 × 1536 video

Supports analog resolutions up to 2048 × 1536.

USB-powered design

Draws power from the connected computers, so no external AC adapter is required.

Key highlights

Four-computer control
Audio switching
2048 × 1536 video
USB-powered design

Warranty confidence

2-year manufacturer warranty
Official StarTech.com manufacturer warranty in Australia for this DeviceDeal-supplied Australian version, subject to StarTech.com warranty terms and product assessment.

Specifications

Technical specifications for StarTech SV411KUSB. Values and conditions are organised from the supplied exact-product information and verified exact-SKU StarTech source where required.

Warranty Information

Warranty	2 Years

Hardware

Audio	Yes
Cables Included	Yes
Daisy-Chain	No
KVM Ports	4
Number of Monitors Supported	1
PC Interface	USB
PC Video Type	VGA
Rack-Mountable	No

Performance

DVI Support	No
Hot-Key Selection	Yes
IP Control	No
Maximum Analog Resolutions	2048 x 1536 pixels
Maximum Number of Users	1
On-Screen Display	No
Port Selection Support	Push Button and Hotkeys

Connector(s)

Console Interface(s)	1 - VGA (15 pin, High Density D-Sub) Female 2 - 3.5 mm Mini-Jack (3 Position) Female 2 - USB Type-A (4 pin) USB 2.0 Female

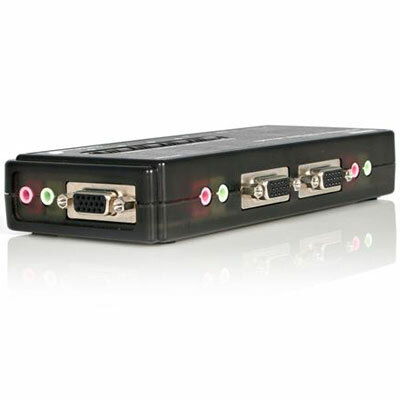

Host Connectors	4 - VGA (15 pin, High Density D-Sub) Female 8 - 3.5 mm Mini-Jack (3 Position) Female

Software

OS Compatibility	OS independent; No software or drivers required

Power

Power Source	USB-Powered

Physical Characteristics

Cable Length	4 ft [1.2 m]
Color	Black
Enclosure Type	Plastic
Product Depth	2.4 in [61 mm]
Product Height	1 in [2.5 cm]
Product Width	3.7 in [95 mm]
Weight of Product	6.7 oz [189 g]

Packaging Information

Package Height	5.7 in [14.5 cm]
Package Length	8.3 in [21 cm]
Package Width	7.1 in [18 cm]
Shipping (Package) Weight	3.1 lb [1.4 kg]

What's in the Box

Included in Package	1 - 4 Port KVM Switch 4 - 4ft. Audio Cable (3.5mm speaker/mic) 4 - 4ft. VGA USB KVM Cable 1 - Driver CD 1 - Instruction Manual

SKU	SV411KUSB
Barcode #	65030822480
Brand	Startech
Shipping Weight	1.4100kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.200m
Shipping Cubic	0.001000000m3
