StarTech.com | SV431DPUA

4-port DisplayPort USB KVM with audio and USB 2.0 hub

Control four DisplayPort computers from one DisplayPort display, USB keyboard and mouse, with shared USB 2.0 peripherals and digital or 3.5 mm audio.

4 computers2560 × 1600 @ 60HzUSB 2.0 hub3-year warranty

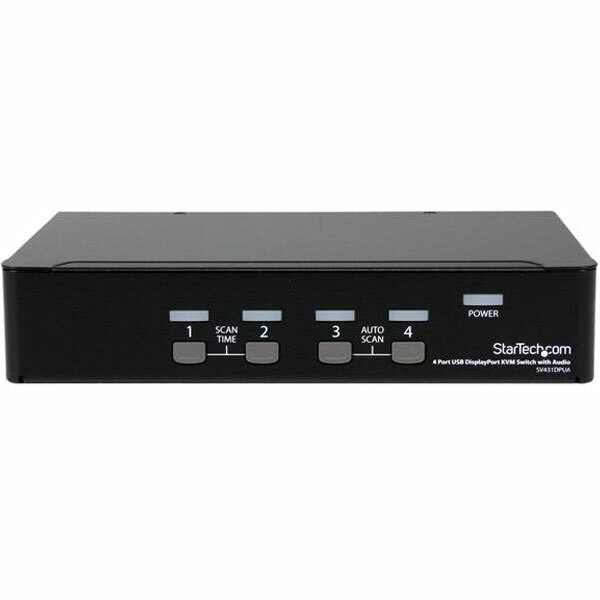

StarTech SV431DPUA 4-port DisplayPort USB KVM with audio and USB 2.0 hub

Key capabilities

2560 × 1600 at 60Hz

Supports DisplayPort resolutions up to 2560 × 1600 at 60Hz.

USB 2.0 peripheral sharing

An integrated hub lets two additional USB 2.0 peripherals follow the selected host.

Digital and analog audio

Supports 7.1 HD digital audio with compatible sources/displays plus separate 3.5 mm stereo audio.

PC and Mac support

OS-independent operation supports mixed compatible PC and Mac environments without KVM software.

What to know before buying

The normal maximum resolution listed in the dedicated specifications is 2560 × 1600 at 60Hz. The product description also notes 3840 × 2400 support for high-quality static imaging at reduced refresh rates. KVM cables are not included.

Australian version and manufacturer warranty

3-year StarTech.com manufacturer warranty. This SV431DPUA is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com 3-year manufacturer warranty in Australia. Retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

How many computers can SV431DPUA control?

Up to four DisplayPort computers.

How many monitors are supported?

One DisplayPort monitor.

What resolution is supported at 60Hz?

Up to 2560 × 1600 at 60Hz.

Does it include a USB hub?

Yes. It includes an integrated USB 2.0 hub for sharing two additional peripherals.

What audio formats are supported?

The product description lists 7.1 HD digital audio with compatible displays and sources, plus separate 3.5 mm stereo audio.

Does it require software or drivers?

No. The supplied specification lists OS-independent operation with no software or drivers required.

Are the KVM cables included?

No. The supplied specification lists cables as not included.

What warranty applies in Australia?

The Australian version supplied by DeviceDeal is covered by the official StarTech.com 3-year manufacturer warranty in Australia, subject to StarTech.com terms and product assessment.

(SV431DPUA)

Features and highlights

2560 × 1600 at 60Hz

Supports DisplayPort resolutions up to 2560 × 1600 at 60Hz.

USB 2.0 peripheral sharing

An integrated hub lets two additional USB 2.0 peripherals follow the selected host.

Digital and analog audio

Supports 7.1 HD digital audio with compatible sources/displays plus separate 3.5 mm stereo audio.

PC and Mac support

OS-independent operation supports mixed compatible PC and Mac environments without KVM software.

Key highlights

2560 × 1600 at 60Hz
USB 2.0 peripheral sharing
Digital and analog audio
PC and Mac support

Warranty confidence

3-year manufacturer warranty
Official StarTech.com manufacturer warranty in Australia for this DeviceDeal-supplied Australian version, subject to StarTech.com warranty terms and product assessment.

Specifications

Technical specifications for StarTech SV431DPUA. Values and conditions are organised from the supplied exact-product information and verified exact-SKU StarTech source where required.

Warranty Information

Warranty	3 Years

Hardware

Audio	Yes
Cables Included	No
Daisy-Chain	No
KVM Ports	4
Number of Monitors Supported	1
PC Interface	USB
PC Video Type	DisplayPort
Rack-Mountable	Optional

Performance

DVI Support	No
Hot-Key Selection	Yes
IP Control	No
Maximum Digital Resolutions	2560 x 1600 @ 60Hz
Maximum Number of Users	1
MTBF	136000 hours
On-Screen Display	No
Port Selection Support	Push Button and Hotkeys
Wide Screen Supported	Yes

Connector(s)

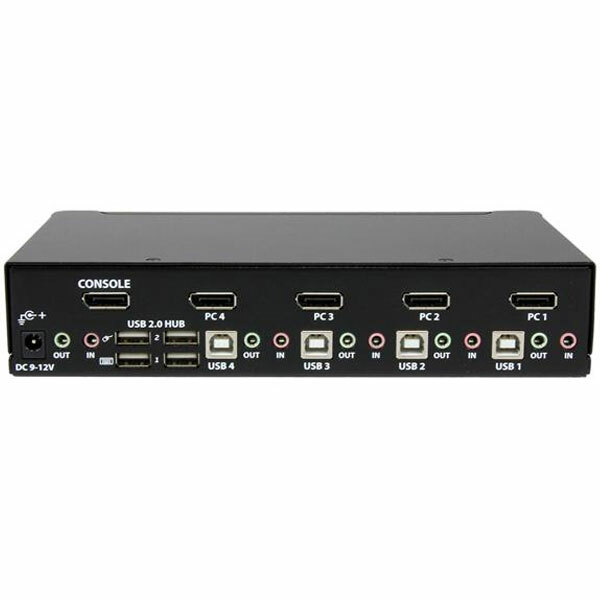

Console Interface(s)	1 - DisplayPort (20 pin) Female 2 - 3.5 mm Mini-Jack (3 Position) Female 4 - USB Type-A (4 pin) USB 2.0 Female
Host Connectors	4 - DisplayPort (20 pin) Female 4 - USB B (4 pin) Female 8 - 3.5 mm Mini-Jack (3 Position) Female

Software

OS Compatibility	OS independent; No software or drivers required

Indicators

LED Indicators	1 - Power 4 - Green - Online indicator (One LED per port) 4 - Red - Select indicator (One LED per port)

Power

Center Tip Polarity	Positive
Input Current	0.8A
Input Voltage	100 - 240 AC
Output Current	1.5A
Output Voltage	12 DC
Plug Type	M
Power Consumption (In Watts)	18
Power Source	AC Adapter Included

Environmental

Humidity	0~80% RH
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)

Physical Characteristics

Color	Black
Enclosure Type	Steel
Product Depth	5.1 in [130.6 mm]
Product Height	1.7 in [4.4 cm]
Product Width	8.7 in [22.1 cm]
Weight of Product	2.3 lb [1 kg]

Packaging Information

Package Height	3.4 in [87 mm]
Package Length	16.2 in [41.1 cm]
Package Width	8.4 in [21.4 cm]
Shipping (Package) Weight	3.6 lb [1.6 kg]

What's in the Box

Included in Package	1 - 4-port DisplayPort KVM switch 4 - foot pads 1 - universal power adapter (NA/UK/EU/AU) 1 - instruction manual

SKU	SV431DPUA
Barcode #	65030837545
Brand	STARTECH
Shipping Weight	1.6400kg
Shipping Width	0.220m
Shipping Height	0.090m
Shipping Length	0.410m
Shipping Cubic	0.008118000m3
