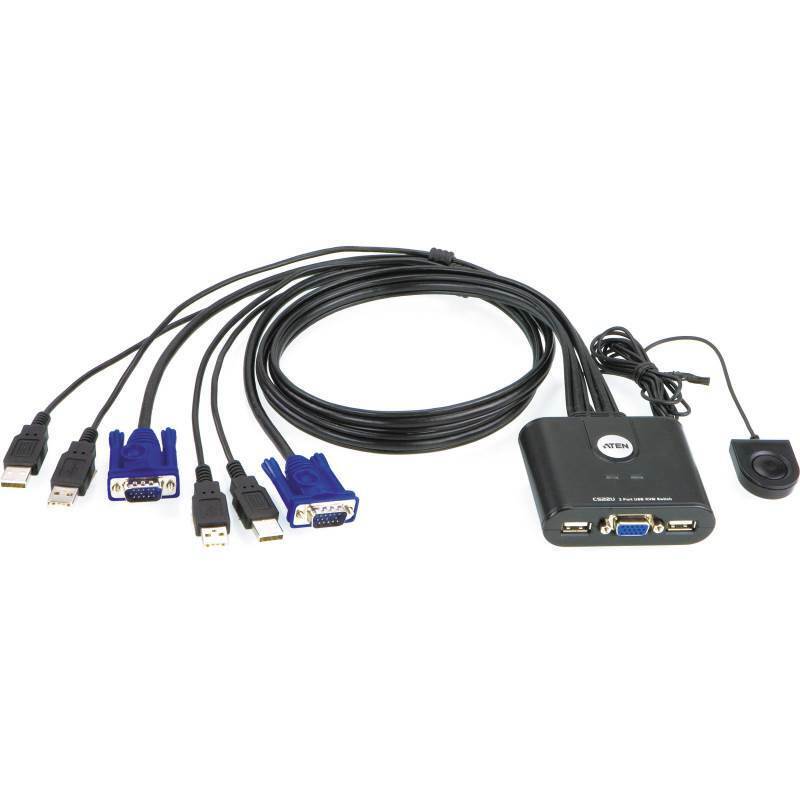

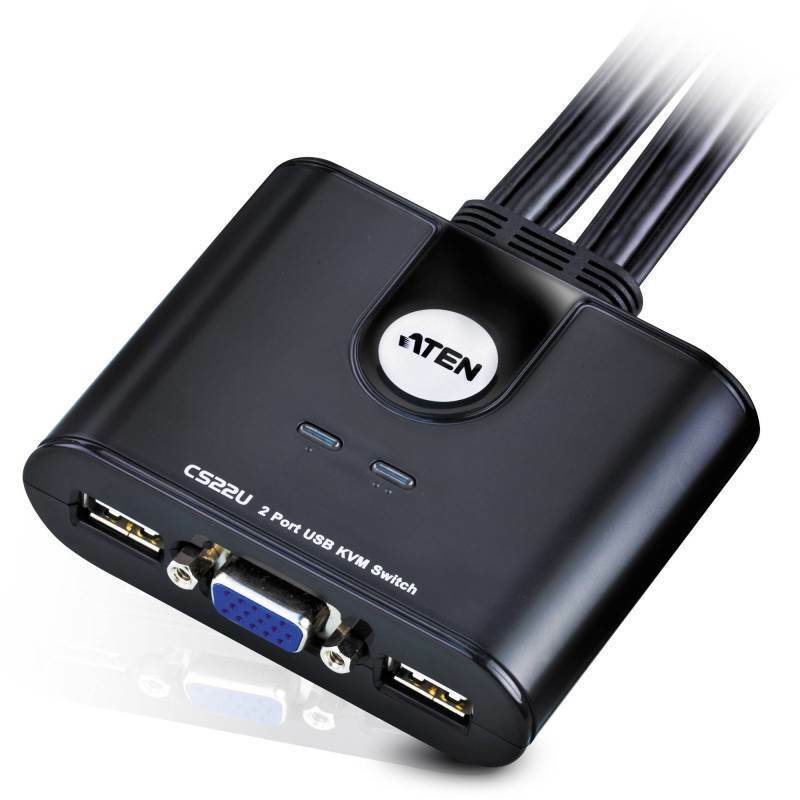

The CS22U is a 2-port USB Cable KVM Switch that provides a simple and quick method of selecting computers - a built-in remote port selector. This allows the CS22U unit to be hidden from sight, while the remote port selector can be placed conveniently on the desktop.
The CS22U's compact all-in-one design makes it ideal for multiplatform desktop applications that require high resolution video.

Package Contents

  • 1x CS22U 2-Port USB Cable KVM Switch with Remote Port Selector
  • 1x User Instructions
  • One USB console controls two USB computers
  • Supports multifunction mice
  • Multiplatform support - Windows, Mac, Linux and Sun
  • USB mouse port can be used for USB 1.1 hub ad USB 1.1 peripheral sharing
  • Superior video quality - up to 2048 x 1536; DDC2B
  • Non-powered

2-Port USB Cable KVM Switch


Computer Connections 2
Port Selection Remote Port Selector
Connectors
Console Ports 1 x HDB-15 Female (Blue)
2 x USB Type A Female
KVM Ports 2 x HDB-15 Male (Blue)
4 x USB Type A Male (Black)
LEDs
Selected 2
Cable Length
Computer 2 x 0.9 m
Remote Port Selector 1.8 m
Video 2048 x 1536, DDC2B
Environmental
Operating Temperature 0-50°C
Storage Temperature -20-60°C
Humidity 0-80% RH, Non-condensing
Physical Properties
Housing Plastic
Weight 0.30 kg ( 0.66 lb )
Dimensions (L x W x H) 8.24 x 7.01 x 2.46 cm
(3.24 x 2.76 x 0.97 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

(CS22U-AT)

Computer Connections 2
Port Selection Remote Port Selector
Connectors
Console Ports 1 x HDB-15 Female (Blue)
2 x USB Type A Female
KVM Ports 2 x HDB-15 Male (Blue)
4 x USB Type A Male (Black)
LEDs
Selected 2
Cable Length
Computer 2 x 0.9 m
Remote Port Selector 1.8 m
Video 2048 x 1536, DDC2B
Power Consumption DC5V:0.14W:13BTU
Environmental
Operating Temperature 0-50°C
Storage Temperature -20-60°C
Humidity 0-80% RH, Non-condensing
Physical Properties
Housing Plastic
Weight 0.30 kg ( 0.66 lb )
Dimensions (L x W x H) 8.24 x 7.01 x 2.46 cm
(3.24 x 2.76 x 0.97 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
SKU CS22U-AT
Barcode # 672792398018
Brand Aten
Shipping Weight 0.4200kg
Shipping Width 0.060m
Shipping Height 0.220m
Shipping Length 0.160m
Shipping Cubic 0.002112000m3

Manufacturer Warranty: 2 Years Limited Warranty
