StarTech 2 Port Professional USB DisplayPort KVM Switch with Audio - SV231DPUA
Model # SV231DPUA
-
SKU: SV231DPUA
- Pick Up Available
- Australian Warranty
- Checkout Securely
The SV231DPUA 2-Port USB DisplayPort KVM Switch delivers dual computer KVM control, for demanding high definition multimedia applications. Supporting DisplayPort connections with a native resolution of 2560 x 1600, and support for both 7.1 HD digital audio (when connected to supporting displays and sources) and 3.5mm stereo analog audio/mic.

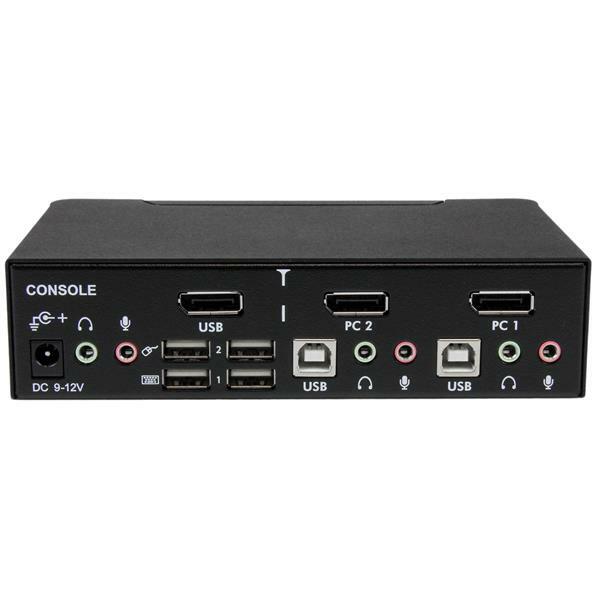

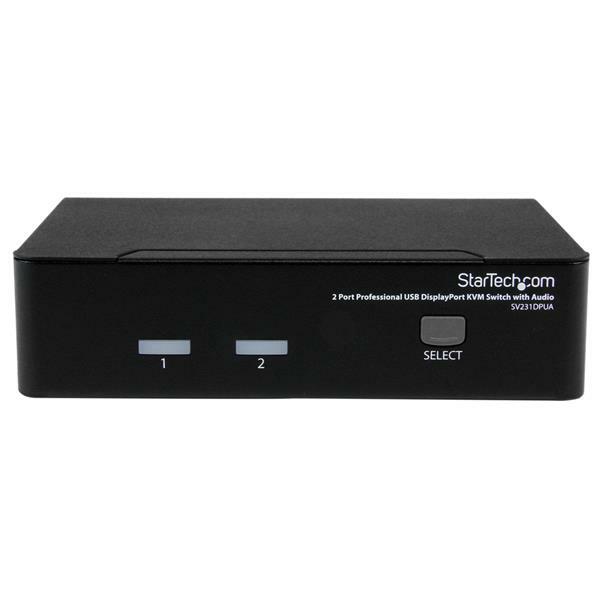

A simple, yet comprehensive KVM solution, the 2-port switch features both front-panel push-buttons and hotkey switching, and offers a small form factor design with connection ports situated on the rear panel. A Plug-and-Play USB 2.0 hub port allows you to share an additional USB peripheral between the 2 connected computers, avoiding the expense of purchasing duplicate peripheral devices.
A suitable solution for medical applications (MRI, X-ray diagnostics etc.), the KVM switch supports a maximum resolution of 3840 x 2400 at a reduced refresh rate.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
(SV231DPUA)
| Warranty Information | ||
|---|---|---|
| Warranty | 3 Years | |
| Hardware | ||
| Audio | Yes | |
| Cables Included | No | |
| Daisy-Chain | No | |
| KVM Ports | 2 | |
| Number of Monitors Supported | 1 | |
| PC Interface | USB | |
| PC Video Type | DisplayPort | |
| Rack-Mountable | No | |
| Performance | ||
| DVI Support | No | |
| Hot-Key Selection | Yes | |
| IP Control | No | |
| Maximum Digital Resolutions | 2560 x 1600 @ 60Hz | |
| Maximum Number of Users | 1 | |
| MTBF | 127000 hours | |
| On-Screen Display | No | |
| Port Selection Support | Push Button and Hotkeys | |
| Wide Screen Supported | Yes | |
| Connector(s) | ||
| Console Interface(s) | 1 - DisplayPort (20 pin) Female | |
| 2 - 3.5 mm Mini-Jack (3 Position) Female | ||
| 4 - USB Type-A (4 pin) USB 2.0 Female | ||
| Host Connectors | 2 - DisplayPort (20 pin) Female | |
| 2 - USB B (4 pin) Female | ||
| 4 - 3.5 mm Mini-Jack (3 Position) Female | ||
| Software | ||
| OS Compatibility | OS independent; No software or drivers required | |
| Indicators | ||
| LED Indicators | 2 - Green - Online indicator (One LED per port) | |
| 2 - Red - Select indicator (One LED per port) | ||
| Power | ||
| Center Tip Polarity | Positive | |
| Input Current | 0.8A | |
| Input Voltage | 100 - 240 AC | |
| Output Current | 2A | |
| Output Voltage | 12 DC | |
| Plug Type | M | |
| Power Consumption (In Watts) | 24 | |
| Power Source | AC Adapter Included | |
| Environmental | ||
| Humidity | 0~80% RH | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) | |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) | |
| Physical Characteristics | ||
| Color | Black | |
| Enclosure Type | Steel | |
| Product Depth | 5.1 in [130 mm] | |
| Product Height | 1.7 in [4.4 cm] | |
| Product Width | 8.7 in [22 cm] | |
| Weight of Product | 2.4 lb [1.1 kg] | |
| Packaging Information | ||
| Package Height | 7.1 in [18.1 cm] | |
| Package Length | 9.8 in [25 cm] | |
| Package Width | 3.9 in [10 cm] | |
| Shipping (Package) Weight | 2.9 lb [1.3 kg] | |
| What's in the Box | ||
| Included in Package | 1 - 2-port DisplayPort KVM switch | |
| 4 - foot pads | ||
| 1 - universal power adapter (NA/UK/EU/AU) | ||
| 1 - instruction manual | ||
| SKU | SV231DPUA |
| Barcode # | 65030839952 |
| Brand | STARTECH |
| Shipping Weight | 1.1000kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.250m |
| Shipping Cubic | 0.001250000m3 |
