StarTech.com SV231DPDDUA

2-port dual-DisplayPort KVM with audio and USB 2.0 hub

Control two dual-DisplayPort computers with two displays, USB keyboard/mouse, shared USB 2.0 peripherals and digital or analogue audio using push-button or hotkey switching.

2 DisplayPort monitors2560×1600 @ 60HzUSB 2.0 hub + audio3-year warranty

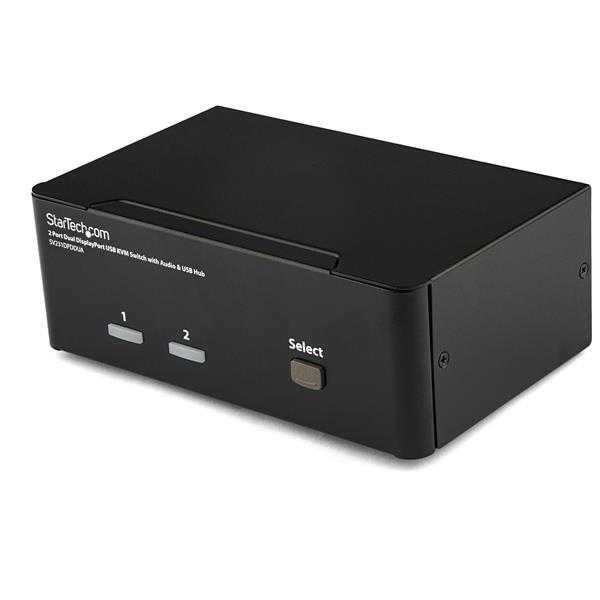

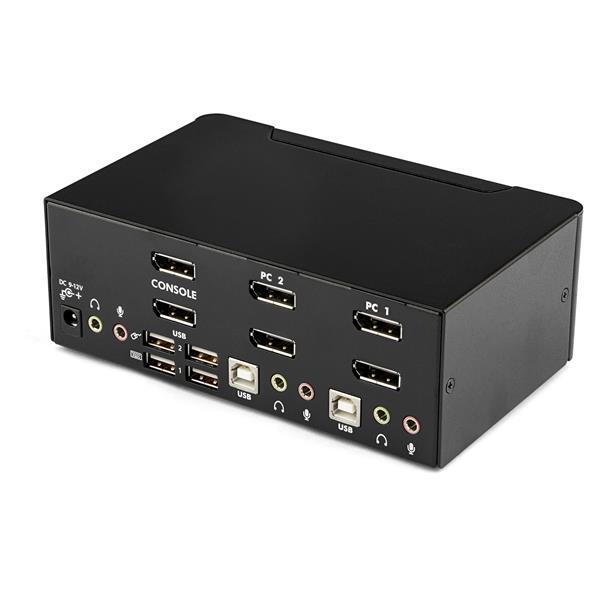

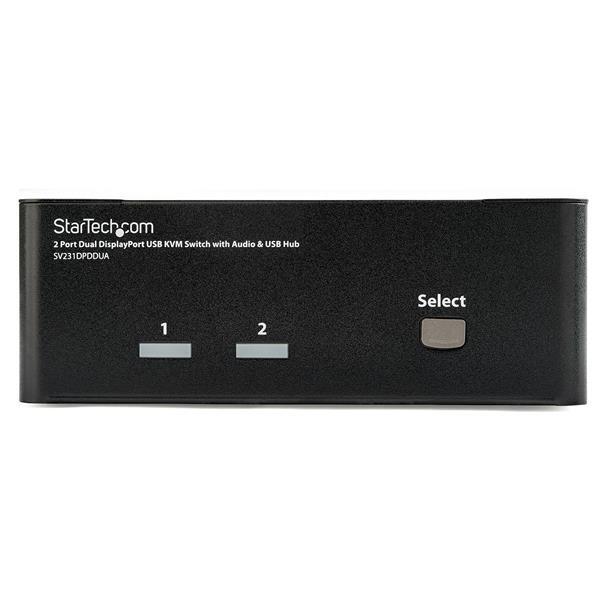

StarTech SV231DPDDUA dual DisplayPort two-monitor KVM switch

Key capabilities

Dual DisplayPort control

Switch between two computers equipped for dual-display DisplayPort output.

2560×1600 at 60Hz

Supports WQXGA-class dual-display operation; higher 3840×2400 is supported only at reduced refresh rates.

Digital and analogue audio

Supports DisplayPort HD audio plus 3.5mm stereo and microphone connections.

Shared USB 2.0 hub

Additional USB peripherals follow the selected host.

What to know before buying

For normal high-resolution desktop use, use the specified 2560×1600 at 60Hz operating point. The 3840×2400 figure is only supported at reduced refresh rates.

Australian version and manufacturer warranty

This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com 3-year manufacturer warranty in Australia.

Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

How many computers can SV231DPDDUA control?

Two.

How many monitors are supported?

Two DisplayPort monitors.

What native high-resolution mode is supported?

2560×1600 at 60Hz.

Can it reach 3840×2400?

Yes, but only at reduced refresh rates.

Does it switch audio?

Yes, DisplayPort digital audio and analogue stereo/microphone.

Does it include a USB peripheral hub?

Yes, USB 2.0.

How can hosts be selected?

Push buttons or hotkeys.

What warranty applies in Australia?

The current official StarTech.com warranty for this exact model is 3 years, subject to StarTech.com terms and product assessment.

(SV231DPDDUA)

Features and highlights

Dual DisplayPort control

Switch between two computers equipped for dual-display DisplayPort output.

2560×1600 at 60Hz

Supports WQXGA-class dual-display operation; higher 3840×2400 is supported only at reduced refresh rates.

Digital and analogue audio

Supports DisplayPort HD audio plus 3.5mm stereo and microphone connections.

Shared USB 2.0 hub

Additional USB peripherals follow the selected host.

2 DisplayPort monitors
2560×1600 @ 60Hz
USB 2.0 hub + audio
3-year warranty

Warranty confidence: Official StarTech.com 3-year manufacturer warranty in Australia, subject to StarTech.com terms and assessment.

Specifications

Verified specifications for StarTech SV231DPDDUA.

Warranty Information

Warranty	3 Years

Hardware

KVM Ports	2
Monitors Supported	2
PC Video Type	DisplayPort
PC Interface	USB
Audio	Yes
Cables Included	No
Rack-Mountable	No
TAA Compliant	Yes

Performance

Maximum Digital Resolution	2560 × 1600 @ 60Hz
Maximum Reduced-Refresh Resolution	3840 × 2400
Hot-Key Selection	Yes
Port Selection	Push Button and Hotkeys
OSD	No
IP Control	No

Audio

Digital	DisplayPort HD audio
Analogue	3.5mm stereo and microphone

Power

Input	100240V AC
Output	12V DC / 1.5A
Power Consumption	18W

Physical Characteristics

Colour	Black
Enclosure	Steel
Product Length	3.9in [100mm]
Product Width	6.3in [161mm]
Product Height	2.3in [57.6mm]
Weight	734g [25.9oz]

Packaging Information

Package Width	7.4in [188mm]
Package Depth	9.9in [252mm]
Package Height	3.9in [100mm]
Shipping Weight	1182g

SKU	SV231DPDDUA
Barcode #	65030839266
Brand	Startech
Shipping Weight	1.1800kg
Shipping Width	0.190m
Shipping Height	0.100m
Shipping Length	0.248m
Shipping Cubic	0.004712000m3
