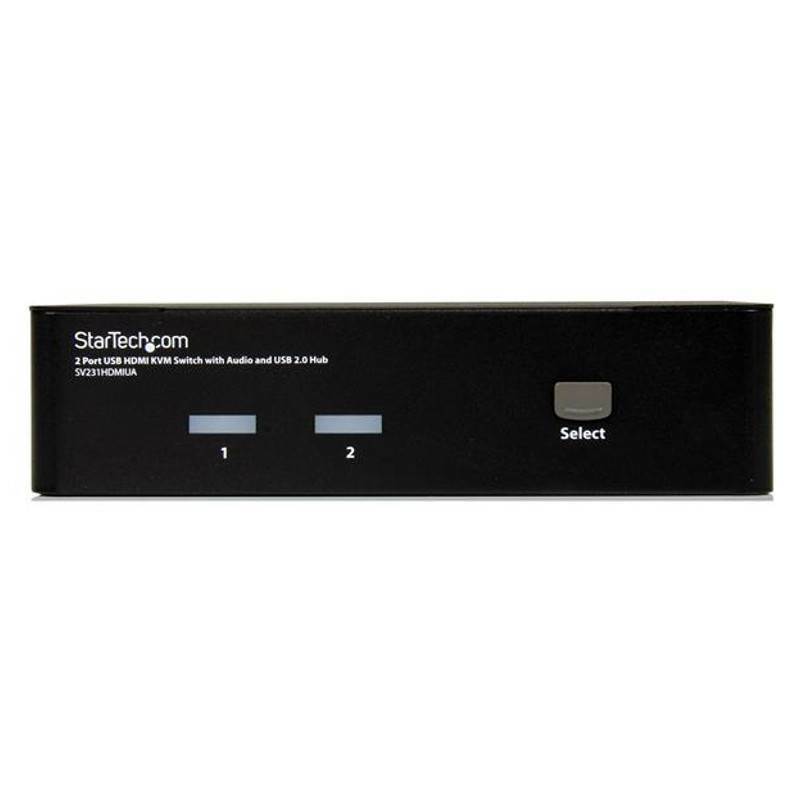

StarTech 2 Port USB HDMI KVM Switch with Audio and USB 2.0 Hub - SV231HDMIUA
Model # SV231HDMIUA
-
SKU: SV231HDMIUA
Stock Availability
🟢Live
Allow 1–2 business days for stock transfer
- Pick Up Available
- Australian Warranty
- Checkout Securely
2-port HDMI KVM with audio and integrated USB 2.0 hub
Control two HDMI/USB computers from one monitor, keyboard and mouse while sharing USB 2.0 peripherals, speakers and microphone, with independent or simultaneous switching.
Key capabilities
1920×1200 HDMI video
Supports Full HD and WUXGA-class digital resolutions.
Integrated USB 2.0 hub
Share two additional USB peripherals between the selected computers.
Independent audio and USB switching
Computer, USB hub and audio channels can be switched together or independently.
Push-button and hotkey control
Use front-panel controls or keyboard hotkeys for quick host selection.
What to know before buying
This is a 1920×1200/1080p-class HDMI KVM rather than a 4K model. StarTechs current datasheet contains an internally suspect height field, so that specific current height value is not promoted here.
Australian version and manufacturer warranty
This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com 3-year manufacturer warranty in Australia.
Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
Frequently asked questions
How many computers can SV231HDMIUA control?
What maximum resolution is supported?
Does it include a USB peripheral hub?
Does it switch audio and microphone connections?
Can audio and USB be switched independently from the computer?
How can hosts be selected?
Is it TAA compliant?
What warranty applies in Australia?
(SV231HDMIUA)
Features and highlights
1920×1200 HDMI video
Supports Full HD and WUXGA-class digital resolutions.
Integrated USB 2.0 hub
Share two additional USB peripherals between the selected computers.
Independent audio and USB switching
Computer, USB hub and audio channels can be switched together or independently.
Push-button and hotkey control
Use front-panel controls or keyboard hotkeys for quick host selection.
- 2 HDMI hosts
- 1920×1200
- 2-port USB 2.0 hub
- 3-year warranty
Specifications
Verified specifications for StarTech SV231HDMIUA.
Warranty Information
| Warranty | 3 Years |
|---|
Hardware
| Audio | Yes |
|---|---|
| Cables Included | No |
| Daisy-Chain | No |
| KVM Ports | 2 |
| Number of Monitors Supported | 1 |
| PC Interface | USB |
| PC Video Type | HDMI |
| Rack-Mountable | No |
Performance
| Hot-Key Selection | Yes |
|---|---|
| IP Control | No |
| Maximum Digital Resolutions | 1920 x 1200 |
| Maximum Number of Users | 1 |
| MTBF | 126813 hours |
| On-Screen Display | No |
| Port Selection Support | Push Button and Hotkeys |
| Wide Screen Supported | Yes |
Connector(s)
| Console Interface(s) | 1 - HDMI (19 pin) Female |
|---|---|
| Console Interface(s) | 2 - 3.5 mm Mini-Jack (3 Position) Female |
| Console Interface(s) | 4 - USB Type-A (4 pin) USB 2.0 Female |
| Host Connectors | 2 - HDMI (19 pin) Female |
| Host Connectors | 2 - USB B (4 pin) Female |
| Host Connectors | 4 - 3.5 mm Mini-Jack (3 Position) Female |
Software
| OS Compatibility | OS independent; No software or drivers required |
|---|
Indicators
| LED Indicators | 2 - Online/Active (Green - Connected PC is online, Red - PC is selected) |
|---|
Power
| Center Tip Polarity | Positive |
|---|---|
| Input Current | 0.8A |
| Input Voltage | 100 - 240 AC |
| Output Current | 1.5A |
| Output Voltage | 12 DC |
| Plug Type | M |
| Power Consumption (In Watts) | 18 |
| Power Source | AC Adapter Included |
Environmental
| Humidity | 0~80% RH |
|---|---|
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
Physical Characteristics
| Color | Black |
|---|---|
| Enclosure Type | Steel |
| Product Depth | 2.8 in [70 mm] |
| Product Height | 1.6 in [4 cm] |
| Product Width | 4.9 in [12.5 cm] |
| Weight of Product | 22.4 oz [634 g] |
Packaging Information
| Package Height | 3.9 in [10 cm] |
|---|---|
| Package Length | 9.8 in [25 cm] |
| Package Width | 7.4 in [18.8 cm] |
| Shipping (Package) Weight | 2.4 lb [1.1 kg] |

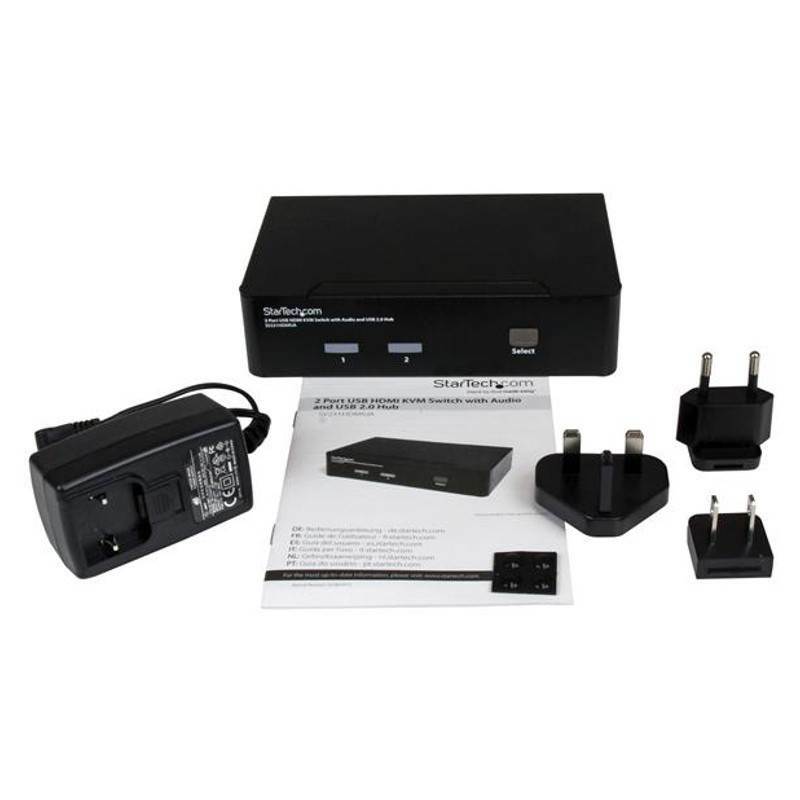

What's in the Box
| Included in Package | 1 - 2 Port HDMI KVM |
|---|---|
| Included in Package | 1 - Package of Rubber feet |
| Included in Package | 1 - Power Adapter |
| Included in Package | 1 - User Manual |
| SKU | SV231HDMIUA |
| Barcode # | 65030837521 |
| Brand | Startech |
| Shipping Weight | 1.1000kg |
| Shipping Width | 0.190m |
| Shipping Height | 0.100m |
| Shipping Length | 0.245m |
| Shipping Cubic | 0.004655000m3 |
