StarTech.com | SV431DHD4KU

4-port dual-HDMI 4K 30Hz KVM switch

Control four HDMI computers across two HDMI displays at up to 4K 30Hz, with USB 5Gbps peripheral sharing and 3.5 mm audio.

Dual HDMI displays4K 30HzUSB 5Gbps hub2-year warranty

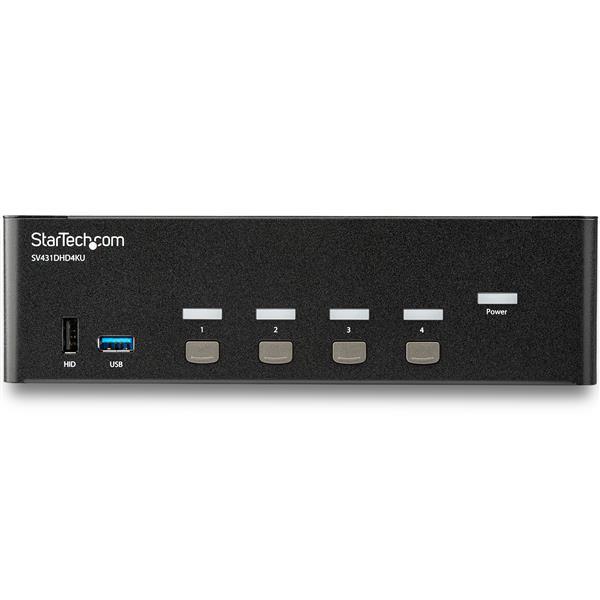

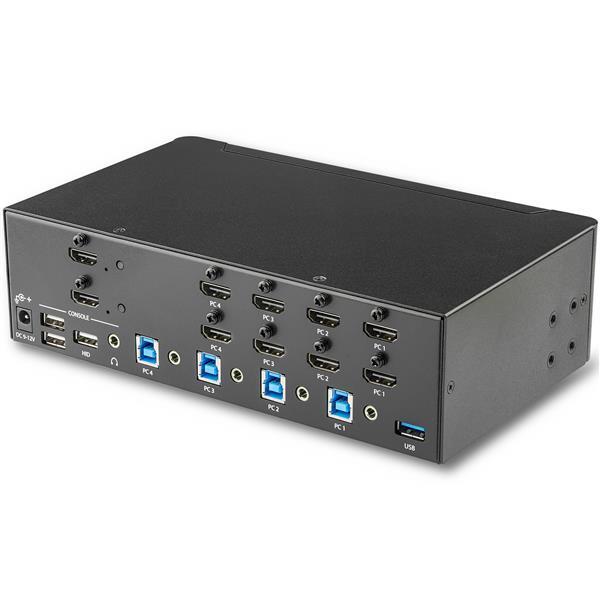

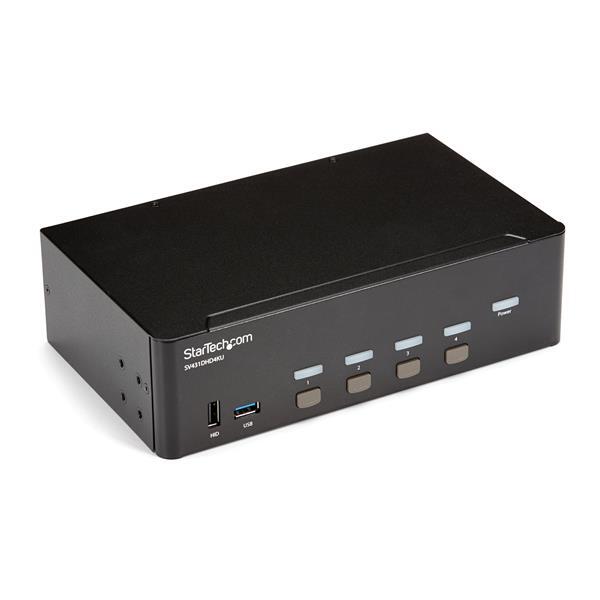

StarTech SV431DHD4KU 4-port dual-HDMI 4K 30Hz KVM switch

Key capabilities

Dual 4K displays

Supports two HDMI displays at up to 3840 × 2160 30Hz.

USB 5Gbps sharing

Built-in USB 3.x peripheral ports support transfer rates up to 5Gbps.

Multimedia switching

3.5 mm audio ports support shared audio devices alongside the HDMI video.

Flexible host selection

Switch computers using front-panel push buttons or keyboard hotkeys.

What to know before buying

This model is specified for 4K at 30Hz, not 4K at 60Hz. To achieve 4K30, the connected computers, displays and HDMI cabling must support the required resolution and refresh rate.

Product video

Australian version and manufacturer warranty

2-year StarTech.com manufacturer warranty. This SV431DHD4KU is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com 2-year manufacturer warranty in Australia. Retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

How many computers can SV431DHD4KU control?

Up to four HDMI computers.

How many monitors are supported?

Two HDMI monitors.

What maximum resolution is supported?

Up to 3840 × 2160 4K at 30Hz.

What USB peripheral speed is supported?

The built-in USB peripheral hub supports data rates up to 5Gbps.

Does it support audio?

Yes. It includes 3.5 mm audio connections for multimedia switching.

How can I select a computer?

Port selection is supported by front-panel push buttons and keyboard hotkeys.

Is a power adapter included?

Yes. A universal 12V DC power adapter is included.

What warranty applies in Australia?

The Australian version supplied by DeviceDeal is covered by the official StarTech.com 2-year manufacturer warranty in Australia, subject to StarTech.com terms and product assessment.

(SV431DHD4KU)

Features and highlights

Dual 4K displays

Supports two HDMI displays at up to 3840 × 2160 30Hz.

USB 5Gbps sharing

Built-in USB 3.x peripheral ports support transfer rates up to 5Gbps.

Multimedia switching

3.5 mm audio ports support shared audio devices alongside the HDMI video.

Flexible host selection

Switch computers using front-panel push buttons or keyboard hotkeys.

Key highlights

Dual 4K displays
USB 5Gbps sharing
Multimedia switching
Flexible host selection

Warranty confidence

2-year manufacturer warranty
Official StarTech.com manufacturer warranty in Australia for this DeviceDeal-supplied Australian version, subject to StarTech.com warranty terms and product assessment.

Specifications

Technical specifications for StarTech SV431DHD4KU. Values and conditions are organised from the supplied exact-product information and verified exact-SKU StarTech source where required.

Warranty Information

Warranty	2 Years

Connector(s)

Console Interface(s)	3.5mm Stereo Female 3 pos HDMI USB 3.1 USB Type-A (9 pin, Gen 1, 5 Gbps) USB Type-A (4 pin; HID Port) USB 1.1
Host Connectors	3.5mm Stereo Female 3 pos HDMI USB 3.1 USB Type-B (9 pin, Gen 1, 5 Gbps)

Environmental

Humidity	0%~80%
Operating Temperature	0°C~40°C
Storage Temperature	-10°C~60°C

Hardware

Audio	Yes
KVM Ports	4
Number of Monitors Supported	2
PC Interface	USB
PC Video Type	HDMI
Rack-Mountable	Yes

Indicators

LED Indicators	LED for Source Status and Selected PC power LED

Packaging Information

Package Height	85 mm [3.3 in]
Package Length	29.5 cm [11.6 in]
Package Width	12.4 cm [4.9 in]
Shipping (Package) Weight	1.8 kg [4 lb]

Performance

Auto Scan	3, 8, 15 & 30 seconds
Hot-Key Selection	Yes
IP Control	No
Maximum Data Transfer Rate	5Gbps
Maximum Digital Resolutions	3840 x2160 @ 30Hz
MTBF	168000 hours
Port Selection Support	Push Button and Hotkeys
Wide Screen Supported	Yes

Physical Characteristics

Color	Black
Enclosure Type	Steel
Product Height	6.3 cm [2.5 in]
Product Length	22 cm [8.7 in]
Product Width	13 cm [5.1 in]
Weight of Product	1.2 kg [2.7 lb]

Power

Center Tip Polarity	Positive
Input Current	0.6 A
Input Voltage	100 - 240 AC
Output Current	1.5 A
Output Voltage	12 DC
Plug Type	M
Power Consumption (In Watts)	18W
Power Source	AC Adapter Included

What's in the Box

Included in Package	KVM Switch quick-start guide rubber feet universal power adapter (NA/JP, UK, EU, ANZ)

SKU	SV431DHD4KU
Barcode #	65030840095
Brand	STARTECH
Shipping Weight	1.8100kg
Shipping Width	0.240m
Shipping Height	0.080m
Shipping Length	0.292m
Shipping Cubic	0.005606000m3
