ATEN CL1316N-ATA-AU 16-Port 19-inch LCD KVM Switch

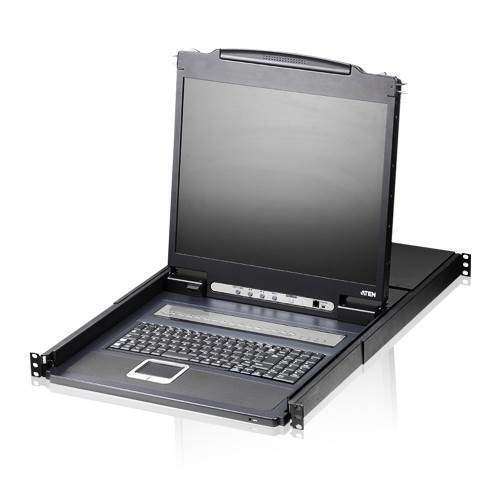

The ATEN CL1316N-ATA-AU combines a 19-inch LED-backlit LCD, keyboard, touchpad and 16-port PS/2-USB VGA KVM switch in a 1U sliding rack console.

The supplied source lists 16 direct computer connections, cascading to a maximum of 256 computers, and port selection through pushbuttons, hotkeys or a multilingual on-screen display.

16 direct portsUp to 256 computers19-inch LCD2-year warrantyDeviceDeal authorised ATEN reseller

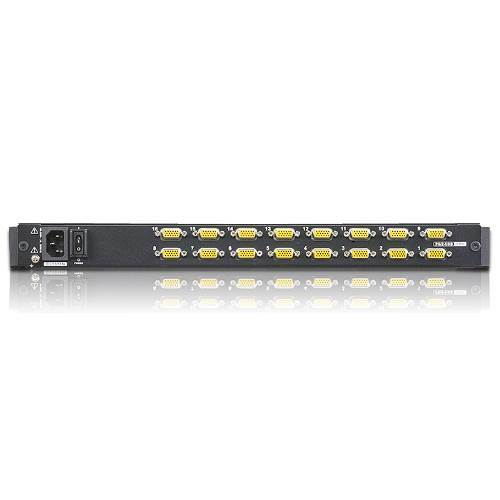

ATEN CL1316N-ATA-AU 16-Port 19-inch LCD KVM Switch shown in the supplied second product image

Product overview

16 ports in 1U

The integrated rack console provides 16 SPHD KVM ports with front-panel online and selected-port indicators.

Cascade to 256 computers

The source states that up to 16 additional switches can be cascaded for control of up to 256 computers.

Three switching methods

Administrators can select computers using front-panel pushbuttons, keyboard hotkeys or the multilingual OSD.

Source review: The panel is listed at 1280 x 1024 at 75Hz, while supported input video is listed up to 1920 x 1200 at 60Hz. These describe the LCD panel and accepted input signal respectively.

Frequently asked questions

How many computers connect directly to the CL1316N-ATA-AU?

The supplied specification lists 16 direct computer connections.

How many computers can be controlled through cascading?

The source lists a maximum of 256 computers through cascaded switches.

How are ports selected?

The source lists OSD, keyboard hotkeys and front-panel pushbuttons.

Does it support both PS/2 and USB computers?

Yes. The supplied record lists PS/2 and USB keyboard/mouse emulation.

What warranty is supplied?

The source lists a two-year limited ATEN manufacturer warranty.

(CL1316N-ATA-AU)

Features

ATEN CL1316N-ATA-AU 16-Port 19-inch LCD KVM Switch

KVM control

16 direct SPHD KVM ports
Maximum 256 computers via cascade
OSD selection
Keyboard hotkeys
16 front-panel port buttons

Integrated console

19-inch TFT LCD
Keyboard and touchpad
1U single-rail housing

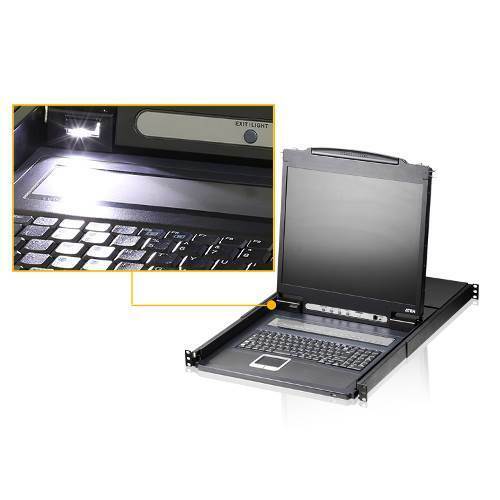

LED illumination light
Multilingual OSD

Video and platform

Panel: 1280 x 1024 @ 75Hz
Input video up to 1920 x 1200 @ 60Hz
PS/2 and USB emulation
1255 second scan interval

Confirm the required KVM cables, cascade design, rack depth and target computer interfaces before purchase.

Technical specifications

ATEN CL1316N-ATA-AU 16-Port 19-inch LCD KVM Switch

Product details
Brand	ATEN
Model / SKU	CL1316N-ATA-AU
Product type	16-port PS/2-USB VGA LCD KVM switch
Rail type	Single rail
Rack format	1U
Computer connections and control
Direct connections	16
Maximum via cascade	256
Port selection	OSD; hotkey; pushbutton
KVM ports	16 x SPHD female
Firmware upgrade	1 x RJ-11 female
Scan interval	1255 seconds
Keyboard / mouse emulation	PS/2; USB
Display
LCD module	19-inch TFT LCD
Panel resolution	1280 x 1024 @ 75Hz
Response time	5ms
Viewing angle	170° horizontal; 160° vertical
Pixel pitch	0.294 x 0.294mm
Colours	16.77 million
Contrast ratio	1000:1
Luminance	250cd/m²
Input video	Up to 1920 x 1200 @ 60Hz; 1280 x 1024 @ 75Hz DDC2B
Power and environment
Power input	1 x IEC 60320 C14
Maximum input power rating	100240V AC; 5060Hz; 1A
Power consumption	AC 110V: 25.9W / 121BTU; AC 220V: 26.1W / 122BTU
Operating temperature	050°C
Storage temperature	-2060°C
Humidity	080% RH, non-condensing
Physical properties
Housing	Metal and plastic
Weight	12.77kg
Dimensions (L x W x H)	48.30 x 68.92 x 4.40cm

SKU	CL1316N-ATA-AU
Barcode #	672792005831
Brand	Aten
Shipping Weight	17.8000kg
Shipping Width	0.670m
Shipping Height	0.130m
Shipping Length	0.830m
Shipping Cubic	0.072293000m3

Warranty information

ATEN CL1316N-ATA-AU 16-Port 19-inch LCD KVM Switch

2-Year Limited ATEN Manufacturer Warranty

DeviceDeal is an authorised ATEN reseller. This product is covered by a two-year limited ATEN manufacturer warranty in Australia, as listed in the supplied product information.
