StarTech.com | SV231USB

2-port USB VGA KVM kit with cables

Control two USB/VGA computers from one VGA monitor, keyboard and mouse, with two 2-in-1 USB/VGA KVM cables included and shared USB peripheral support.

2 computers1920 × 1440 VGAKVM cables included3-year warranty

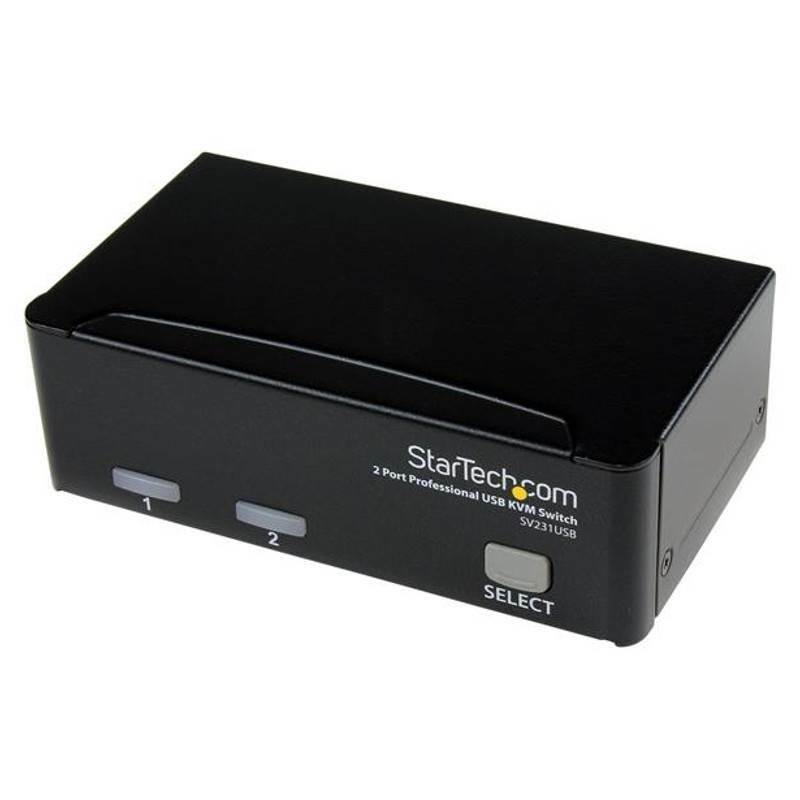

StarTech SV231USB 2-port USB VGA KVM kit with cables

Key capabilities

Complete two-computer kit

Includes two 2-in-1 USB/VGA KVM cables for an out-of-box two-computer setup.

1920 × 1440 VGA

Supports analog video resolutions up to 1920 × 1440.

Shared USB peripherals

The integrated USB hub lets connected USB peripherals be shared between the two computers.

OS-independent operation

No software or drivers are required for normal KVM operation.

What to know before buying

Computer selection is by the front-panel push button; hot-key selection is not listed for this model. The supplied specification lists a 15 ft (4.6 m) maximum cable length and separately notes that longer VGA runs require active USB extension to maintain USB connectivity.

Australian version and manufacturer warranty

3-year StarTech.com manufacturer warranty. This SV231USB is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com 3-year manufacturer warranty in Australia. Retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

How many computers can SV231USB control?

Two USB/VGA computers can be controlled from one keyboard, mouse and VGA monitor.

What is the maximum video resolution?

The maximum listed analog resolution is 1920 × 1440.

Are KVM cables included?

Yes. The package includes two 2-in-1 USB/VGA KVM cables.

Does SV231USB support keyboard hotkey switching?

No. The supplied specification lists push-button port selection and does not list hot-key selection.

Does it require drivers?

No. It is OS independent and requires no software or drivers for normal operation.

Can it share USB peripherals?

Yes. The product description states that an integrated USB hub allows connected USB peripherals to be shared between the two computers.

How is the KVM powered?

A 5V DC power adapter is included.

What warranty applies in Australia?

The Australian version supplied by DeviceDeal is covered by the official StarTech.com 3-year manufacturer warranty in Australia, subject to StarTech.com terms and product assessment.

(SV231USB)

Features and highlights

Complete two-computer kit

Includes two 2-in-1 USB/VGA KVM cables for an out-of-box two-computer setup.

1920 × 1440 VGA

Supports analog video resolutions up to 1920 × 1440.

Shared USB peripherals

The integrated USB hub lets connected USB peripherals be shared between the two computers.

OS-independent operation

No software or drivers are required for normal KVM operation.

Key highlights

Complete two-computer kit
1920 × 1440 VGA
Shared USB peripherals
OS-independent operation

Warranty confidence

3-year manufacturer warranty
Official StarTech.com manufacturer warranty in Australia for this DeviceDeal-supplied Australian version, subject to StarTech.com warranty terms and product assessment.

Specifications

Technical specifications for StarTech SV231USB. Values and conditions are organised from the supplied exact-product information and verified exact-SKU StarTech source where required.

Warranty Information

Warranty	3 Years

Hardware

Audio	No
Cables Included	Yes
Daisy-Chain	No
KVM Ports	2
Number of Monitors Supported	1
PC Interface	USB
PC Video Type	VGA
Rack-Mountable	No
U Height	1U

Performance

Auto Scan	3, 8, 15 & 30 seconds
DVI Support	No
Hot-Key Selection	No
IP Control	No
Maximum Analog Resolutions	1920 x 1440
Maximum Cable Length	15 ft [4.6 m]
Maximum Number of Users	1
MTBF	111,000 Hours
On-Screen Display	No
Port Selection Support	Push Button

Connector(s)

Console Interface(s)	1 - VGA (15 pin, High Density D-Sub) Female 3 - USB Type-A (4 pin) USB 2.0 Female
Host Connectors	2 - USB B (4 pin) Female 2 - VGA (15 pin, High Density D-Sub) Male

Software

OS Compatibility	OS independent; No software or drivers required

Special Notes / Requirements

Note	This KVM supports the use of VGA cables up to 100ft in length - active extension required for USB to achieve that distance

Power

Center Tip Polarity	Positive
Input Current	0.4A
Input Voltage	100 - 240 AC
Output Current	2A
Output Voltage	5 DC
Plug Type	N
Power Consumption (In Watts)	10
Power Source	AC Adapter Included

Physical Characteristics

Cable Length	6 ft [1.8 m]
Color	Black
Enclosure Type	Steel
Product Height	1.6 in [4 cm]
Product Length	4.9 in [12.4 cm]
Product Width	2.8 in [70 mm]
Weight of Product	14.9 oz [421 g]

Packaging Information

Package Height	3.6 in [92 mm]
Package Length	9.4 in [23.8 cm]
Package Width	7.4 in [18.7 cm]
Shipping (Package) Weight	2.5 lb [1.1 kg]

What's in the Box

Included in Package	1 - 2 Port USB KVM Switch 2 - 2 IN 1 USB/VGA Cables 1 - Power Adapter 1 - Manual

SKU	SV231USB
Barcode #	65030789196
Brand	STARTECH
Shipping Weight	1.1500kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.230m
Shipping Cubic	0.001150000m3

3-year StarTech.com manufacturer warranty

Australian warranty information

SV231USB is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com 3-year manufacturer warranty in Australia.

Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
