StarTech.com | SV431DDVDUA

4-port DVI + VGA dual-monitor USB KVM

Share one USB keyboard and mouse, one DVI display and one VGA display across four computers, with audio switching and a shared USB 2.0 hub.

4 computersDVI + VGA dual displayUSB 2.0 hub3-year warranty

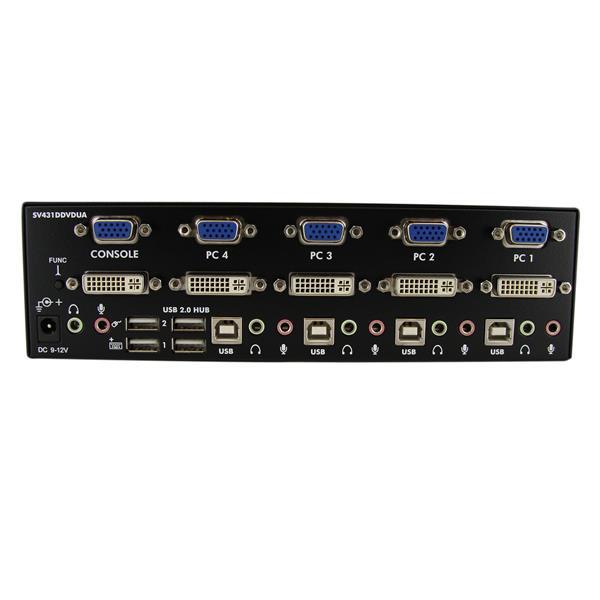

StarTech SV431DDVDUA 4-port DVI + VGA dual-monitor USB KVM

Key capabilities

Dual-monitor switching

Provides one DVI-I and one VGA display path for each connected computer.

High-resolution video

Supports up to 1920 × 1200 digital and 1920 × 1440 analog video.

Shared USB 2.0 hub

Two additional USB 2.0 peripherals can be shared with the active computer.

Audio support

3.5 mm audio connections allow audio to switch with the selected computer.

What to know before buying

For reliable DVI switching, the source computers must output the same DVI signal type. StarTech recommends using DVI-D cables throughout where possible. KVM cables are not included, and rack mounting requires the optional SV431RACK bracket.

Australian version and manufacturer warranty

3-year StarTech.com manufacturer warranty. This SV431DDVDUA is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com 3-year manufacturer warranty in Australia. Retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

How many computers can SV431DDVDUA control?

Up to four computers.

How many monitors does it support?

Two monitors: one DVI display and one VGA display.

What maximum resolutions are supported?

The official StarTech datasheet lists up to 1920 × 1200 digital and 1920 × 1440 analog.

Does it include a USB hub?

Yes. It includes a 2-port USB 2.0 hub for sharing additional USB peripherals.

Does it support audio switching?

Yes. The KVM includes 3.5 mm audio connections.

Is there an important DVI compatibility requirement?

Yes. Source computers must output the same DVI signal type for proper switching; DVI-D cabling is recommended where possible.

Are the KVM cables included?

No. The supplied specifications list cables as not included.

What warranty applies in Australia?

The Australian version supplied by DeviceDeal is covered by the official StarTech.com 3-year manufacturer warranty in Australia, subject to StarTech.com terms and product assessment.

(SV431DDVDUA)

Features and highlights

Dual-monitor switching

Provides one DVI-I and one VGA display path for each connected computer.

High-resolution video

Supports up to 1920 × 1200 digital and 1920 × 1440 analog video.

Shared USB 2.0 hub

Two additional USB 2.0 peripherals can be shared with the active computer.

Audio support

3.5 mm audio connections allow audio to switch with the selected computer.

Key highlights

Dual-monitor switching
High-resolution video
Shared USB 2.0 hub
Audio support

Warranty confidence

3-year manufacturer warranty
Official StarTech.com manufacturer warranty in Australia for this DeviceDeal-supplied Australian version, subject to StarTech.com warranty terms and product assessment.

Specifications

Technical specifications for StarTech SV431DDVDUA. Values and conditions are organised from the supplied exact-product information and verified exact-SKU StarTech source where required.

Warranty Information

Warranty	3 Years

Connector(s)

Console Interface(s)	3.5 mm Mini-Jack (3 Position) Female DVI-I (29 pin) Female USB Type-A (4 pin) USB 2.0 Female VGA (15 pin, High Density D-Sub) Female
Host Connectors	3.5 mm Mini-Jack (3 Position) Female DVI-I (29 pin) Female USB B (4 pin) Female VGA (15 pin, High Density D-Sub) Female

Environmental

Humidity	80% RH
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)

Hardware

Audio	Yes
Cables Included	No
Daisy-Chain	No
KVM Ports	4
Number of Monitors Supported	2
PC Interface	USB
PC Video Type	DVI+VGA
Rack-Mountable	Optional

Indicators

LED Indicators	Green - PC Detected Green - Power Red - PC Indicator

Packaging Information

Package Height	86 mm [3.4 in]
Package Length	24.9 cm [9.8 in]
Package Width	29.5 cm [11.6 in]
Shipping (Package) Weight	1.8 kg [3.9 lb]

Performance

DVI Support	Yes - Single Link
Hot-Key Selection	Yes
IP Control	No
Maximum Analog Resolutions	1920 x 1440
Maximum Digital Resolutions	1920 x 1200
Maximum Number of Users	1
MTBF	140000 hours
On-Screen Display	No
Port Selection Support	Push Button and Hotkeys

Physical Characteristics

Color	Black
Enclosure Type	Steel
Product Depth	130 mm [5.1 in]
Product Height	6 cm [2.4 in]
Product Length	16.3 cm [6.4 in]
Product Width	22 cm [8.7 in]
Weight of Product	1.3 kg [2.8 lb]

Power

Center Tip Polarity	Positive
Input Current	0.8A
Input Voltage	100 - 240 AC
Output Current	1.5A
Output Voltage	12 DC
Plug Type	M
Power Consumption (In Watts)	18
Power Source	AC Adapter Included

Software

OS Compatibility	OS independent; No software or drivers required

Special Notes / Requirements

Note	While both DVI-I (analog mode) and DVI-D (digital only) are supported by the KVM, both source PCs must output the same signal type for proper switching. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to Console connections. Please contact technical support for assistance identifying your source.

What's in the Box

Included in Package	4-port KVM switch foot pads instruction manual universal power adapter (NA/EU/UK/AU)

SKU	SV431DDVDUA
Barcode #	65030835701
Brand	Startech
Shipping Weight	1.8000kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.290m
Shipping Cubic	0.001450000m3

3-year StarTech.com manufacturer warranty

Australian warranty information

SV431DDVDUA is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com 3-year manufacturer warranty in Australia.

Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
