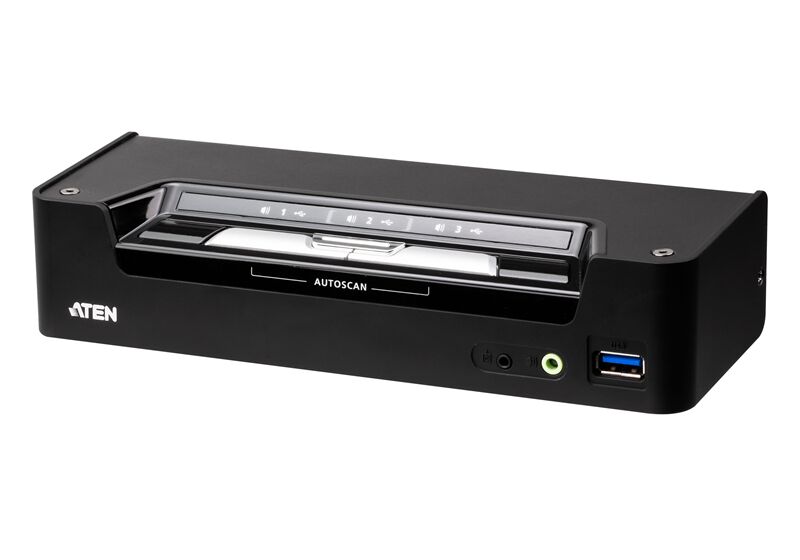

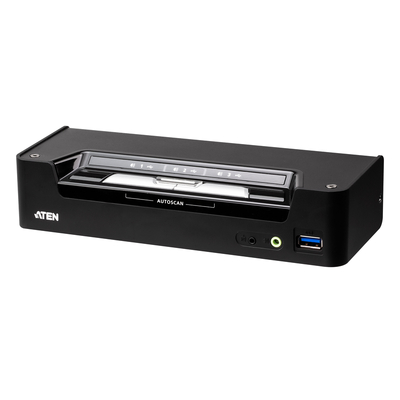

ATEN CS1953-AT-U 3-Port USB-C DisplayPort Hybrid KVMP

The ATEN CS1953-AT-U integrates two DisplayPort computers and one USB-C device into a single DisplayPort desktop console with shared USB peripherals.

USB-C DP Alt Mode, 45W USB Power Delivery 3.0, 4K DCI video at 60Hz and a two-port USB 3.1 Gen 1 hub combine display, data, audio and charging in one hybrid KVMP switch.

2 DisplayPort PCs + 1 USB-C4K DCI @ 60Hz45W USB PD 3.0Manufacturer warrantyDeviceDeal authorised ATEN reseller

ATEN CS1953-AT-U 3-Port USB-C DisplayPort Hybrid KVMP

Product overview

Hybrid three-port control

One console controls two DisplayPort computers and one USB-C device.

USB-C video and charging

The USB-C channel supports DisplayPort Alt Mode and charging up to 45W through USB Power Delivery 3.0.

4K60 and fast USB

The source lists 4096 x 2160 at 60Hz and USB 3.1 Gen 1 data transfer up to 5Gbps.

Source review: The supplied warranty field names a manufacturer warranty but does not provide a duration. The warranty tab therefore uses the applicable ATEN manufacturer-warranty wording without inventing a term.

Frequently asked questions

Which computers can connect to the CS1953-AT-U?

The source lists two DisplayPort computers and one USB-C device.

How much USB-C charging power is listed?

The source lists USB Power Delivery 3.0 charging up to 45W.

What maximum video is listed?

The supplied description lists 4K DCI 4096 x 2160 at 60Hz.

Does the USB-C port support video?

Yes. The source lists DisplayPort Alternate Mode for the USB-C channel.

What warranty applies?

The product is supplied under the applicable ATEN manufacturer warranty in Australia through DeviceDeal as an authorised ATEN reseller.

(CS1953-AT-U)

Features

ATEN CS1953-AT-U 3-Port USB-C DisplayPort Hybrid KVMP

Hybrid connections

2 DisplayPort computers
1 USB-C device
Single DisplayPort monitor console
Shared USB keyboard and mouse

USB-C and video

DP Alt Mode
USB Power Delivery 3.0 up to 45W
4K DCI 4096 x 2160 @ 60Hz
DisplayPort 1.2
HDCP 1.4

USB and switching

2-port USB 3.1 Gen 1 hub
Up to 5Gbps
Pushbutton, hotkey, mouse and remote-selector switching
Independent KVM, USB and audio focus
Bus powered

Confirm that the USB-C device supports DisplayPort Alt Mode and that 45W charging meets its power requirement.

Technical specifications

ATEN CS1953-AT-U 3-Port USB-C DisplayPort Hybrid KVMP

Product details
Brand	ATEN
Model / SKU	CS1953-AT-U
Product type	3-port USB-C DisplayPort hybrid KVMP switch
Computer connections	2 DisplayPort computers; 1 USB-C device
Video and USB-C
Maximum video	4096 x 2160 @ 60Hz
DisplayPort	Version 1.2; DP++
HDCP	1.4
USB-C video	DisplayPort Alt Mode
USB Power Delivery	Version 3.0; up to 45W
USB and switching
USB hub	2-port USB 3.1 Gen 1
Data rate	Up to 5Gbps
Port selection	Pushbuttons; hotkeys; mouse; remote port selector
Power design	Bus powered

SKU	CS1953-AT-U
Brand	ATEN
Shipping Weight	0.5000kg
Shipping Width	0.044m
Shipping Height	0.206m
Shipping Length	0.075m

Warranty information

ATEN CS1953-AT-U 3-Port USB-C DisplayPort Hybrid KVMP

ATEN Manufacturer Warranty

DeviceDeal is an authorised ATEN reseller. This product is supplied under the applicable ATEN manufacturer warranty in Australia. Please contact DeviceDeal to confirm the warranty period and conditions for SKU CS1953-AT-U.
