StarTech.com RKCONS1708K

1U 17-inch 8-port VGA KVM console

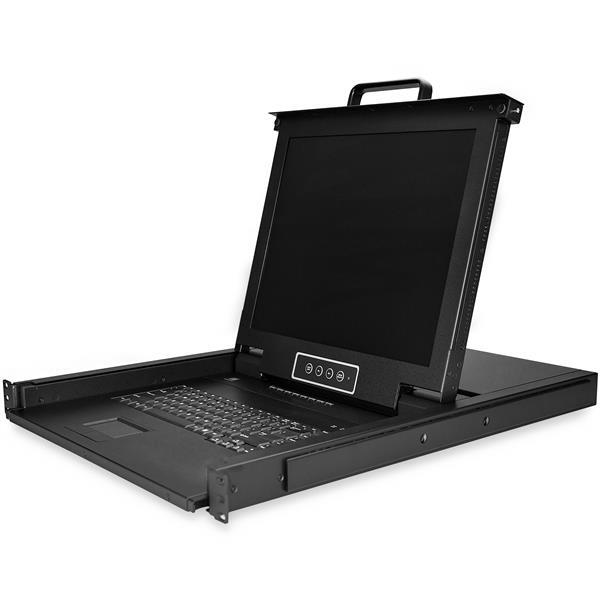

A 1U rackmount console with a 17-inch Active Matrix TFT LCD, QWERTY keyboard, touchpad and integrated eight-port KVM switch for centralized VGA/USB server control.

8 KVM ports17-inch TFT LCD1280 x 10242-year warranty

StarTech RKCONS1708K 1U 17-inch 8-port VGA KVM console

Key capabilities

Eight-server direct access

Integrated eight-port KVM switch provides direct access to up to eight compatible VGA/USB systems.

17-inch rack console

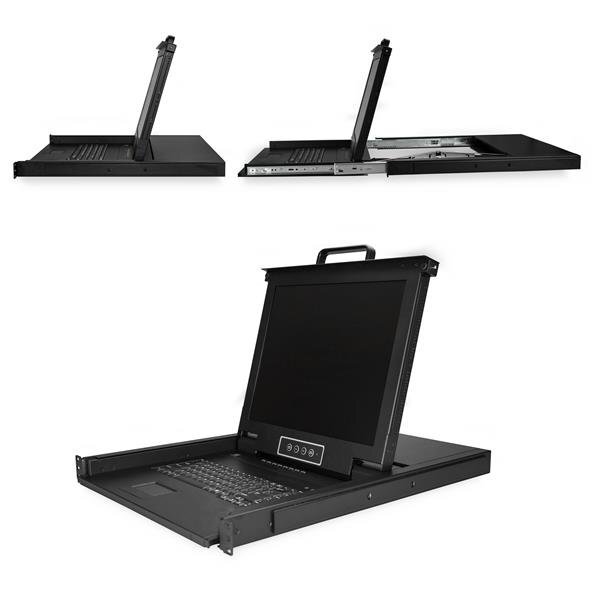

Combines a 17-inch LCD, QWERTY keyboard and touchpad in a 1U sliding rack drawer.

OSD, hotkeys and buttons

Port selection is supported through front controls, keyboard hotkeys and the on-screen display.

Eight KVM cables included

Includes eight 6-foot KVM cables, two mounting rails, M5 rack hardware and regional power cords including ANZ.

What to know before buying

This console is designed for VGA video and USB computer interfaces. Its integrated switch provides eight direct server ports and does not include IP-based remote control. Check the rack mounting depth range of 22 to 35.4 inches (56 to 90 cm).

Australian version and manufacturer warranty

This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com 2-year manufacturer warranty in Australia.

Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

What is the StarTech RKCONS1708K?

It is a 1U rackmount KVM console with an integrated 17-inch LCD, QWERTY keyboard, touchpad and 8-port KVM switch.

What maximum display resolution is supported?

It supports resolutions up to 1280 x 1024 at 60Hz.

How much rack space does the console use?

It installs in 1U of rack space.

Which computer interfaces does it use?

It uses VGA for video and USB for the computer interface.

Does it include the rack mounting hardware?

Yes. Mounting rails plus M5 cage nuts and screws are included.

What is included for server connections?

Eight 6-foot KVM cables are included, matching the console's eight integrated KVM ports.

How are servers selected?

The integrated KVM switch provides direct access to the connected server ports using the supported selection controls.

What warranty applies to the StarTech RKCONS1708K in Australia?

The Australian version supplied by DeviceDeal is covered by the official StarTech.com 2-year manufacturer warranty in Australia, subject to StarTech.com terms and product assessment.

(RKCONS1708K)

Features and highlights

Eight-server direct access

Integrated eight-port KVM switch provides direct access to up to eight compatible VGA/USB systems.

17-inch rack console

Combines a 17-inch LCD, QWERTY keyboard and touchpad in a 1U sliding rack drawer.

OSD, hotkeys and buttons

Port selection is supported through front controls, keyboard hotkeys and the on-screen display.

Eight KVM cables included

Includes eight 6-foot KVM cables, two mounting rails, M5 rack hardware and regional power cords including ANZ.

8 KVM ports
17-inch TFT LCD
1280 x 1024
2-year warranty

Warranty confidence: Official StarTech.com 2-year manufacturer warranty in Australia, subject to StarTech.com warranty terms and assessment.

Specifications

Verified specifications for StarTech RKCONS1708K.

Hardware

Warranty	2 Years
Audio	No
Cables included	Yes
Daisy-chain	No
Display size	17 in
KVM ports	8
Monitors supported	1
Panel type	Active Matrix TFT LCD
PC interface	USB
PC video type	VGA
Rack-mountable	Yes
U height	1U

Display and Performance

Aspect ratio	5:4
Brightness	250 cd/m²
Colour depth	8-bit, 16.7M colours
Contrast ratio	1000:1
IP control	No
Maximum analog resolution	1280 x 1024
Maximum users	1
MTBF	50,000 hours
On-screen display	Yes
Port selection	Push button, Hotkeys and OSD
Pixel pitch	0.264 x 0.264 mm
Response time	5 ms
Supported resolution	Up to 1280 x 1024 @ 60Hz
Viewing angle	170° horizontal / 160° vertical

Connectors and Indicators

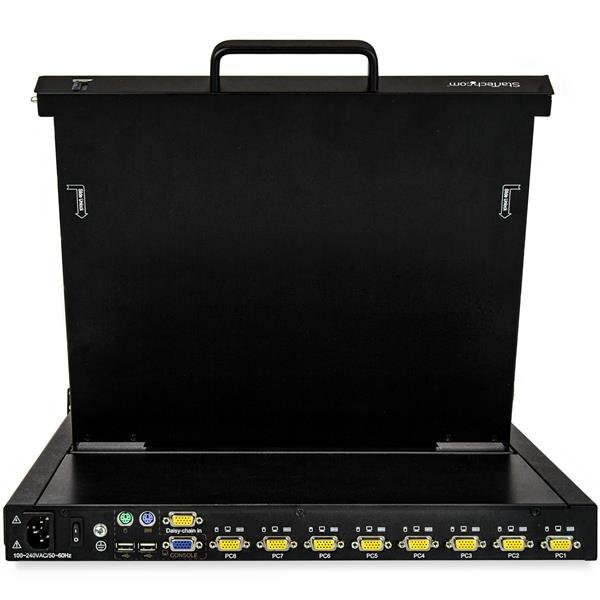

Console interfaces	1 × VGA female output; 2 × USB Type-A female; 2 × PS/2 female
Host connectors	8 × VGA (15-pin High Density D-Sub) female input
Other interface	1 × 15-pin High Density D-Sub female input
LED indicators	8 × Green/Red Online/Selected LEDs

Power and Environmental

Input current	1.5A
Input voltage	100 - 240 AC
Power consumption	13W
Power source	International power cords
Operating temperature	0°C to 40°C
Storage temperature	-20°C to 60°C
Humidity	10 - 80% RH

Physical Characteristics

Cable length	6 ft
Colour	Black
Enclosure type	Steel
Minimum mounting depth	22 in [56 cm]
Maximum mounting depth	35.4 in [90 cm]
Product height	1.7 in [4.3 cm]
Product length	20.7 in [52.6 cm]
Product width	17.6 in [44.8 cm]
Weight of product	29.4 lb [13.3 kg]

Packaging and In the Box

Package height	7.3 in [18.5 cm]
Package length	30.1 in [76.5 cm]
Package width	24.2 in [61.5 cm]
Shipping weight	42 lb [19 kg]
KVM console	1
KVM cables	8
M5 cage nuts	8
M5 screws	8
Regional power cords	5 - NA, JP, UK, EU, ANZ
Mounting rails	2
Quick-start guide	1

SKU	RKCONS1708K
Barcode #	65030872485
Brand	Startech
Shipping Weight	20.0000kg
Shipping Width	0.620m
Shipping Height	0.180m
Shipping Length	0.770m
Shipping Cubic	0.085932000m3
