StarTech.com | SV431DPDDUA2

4-port dual-DisplayPort 4K 60Hz KVM

Switch four DisplayPort computers across two DisplayPort monitors at up to 4K 60Hz, with shared USB 2.0 peripherals and separate 3.5 mm audio.

Dual DisplayPort4K 60HzUSB 2.0 hub2-year warranty

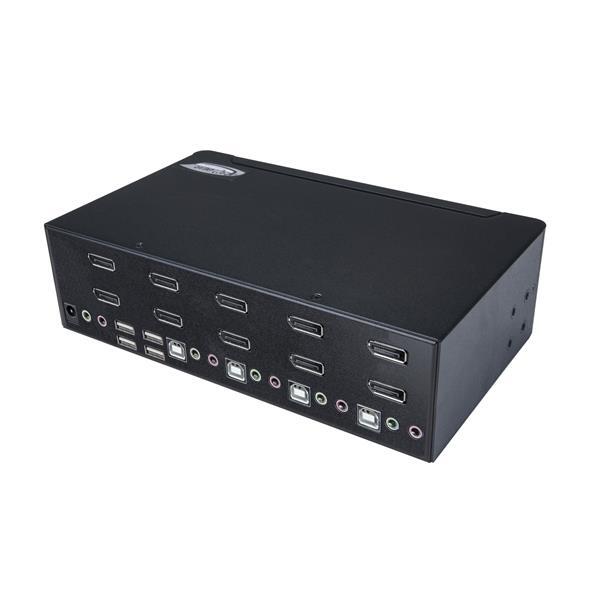

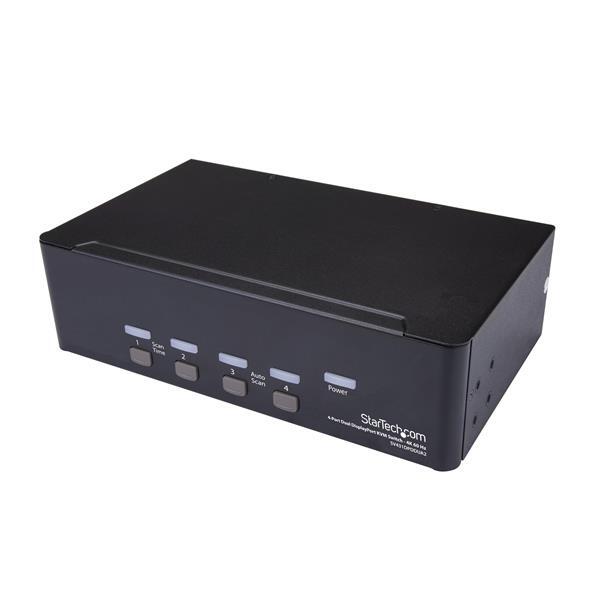

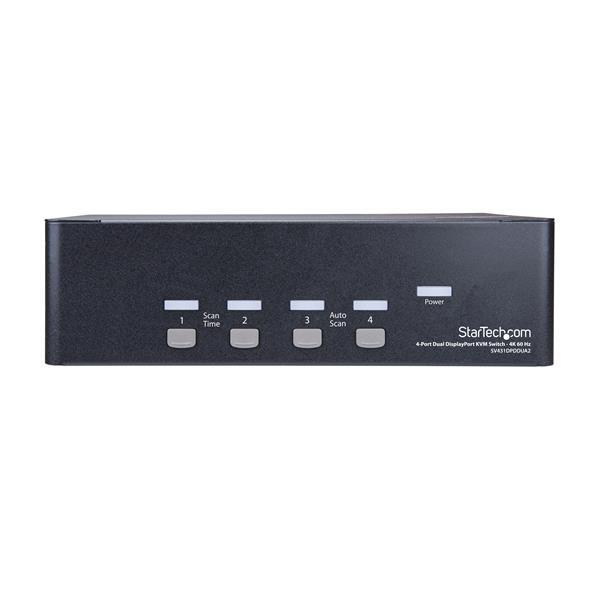

StarTech SV431DPDDUA2 4-port dual-DisplayPort 4K 60Hz KVM

Key capabilities

Dual 4K 60Hz displays

Supports two DisplayPort displays at up to 3840 × 2160 60Hz.

Four-computer access

Switch one dual-monitor console between four connected computers.

Shared USB 2.0 peripherals

A built-in 2-port USB 2.0 hub shares additional peripherals with the selected host.

Separate audio switching

3.5 mm microphone and speaker connections provide independent analog audio support.

What to know before buying

The official StarTech datasheet lists this model as not rack-mountable. It is a dual-monitor DisplayPort KVM with USB 2.0 peripheral sharing, so the shared USB hub is limited to 480/500Mbps-class USB 2.0 speeds rather than USB 5Gbps.

Australian version and manufacturer warranty

2-year StarTech.com manufacturer warranty. This SV431DPDDUA2 is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com 2-year manufacturer warranty in Australia. Retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

How many computers can SV431DPDDUA2 control?

Up to four DisplayPort computers.

How many monitors are supported?

Two DisplayPort monitors.

What maximum resolution is supported?

Up to 3840 × 2160 4K at 60Hz.

What USB speed does the shared hub support?

The supplied and official specifications list USB 2.0-class transfer rates up to 500Mbps.

Does it support audio switching?

Yes. It provides separate 3.5 mm microphone and speaker connections.

How can I switch between computers?

Port selection is supported by push buttons and keyboard hotkeys.

Is SV431DPDDUA2 rack-mountable?

The current official StarTech datasheet lists Rack-Mountable as No.

What warranty applies in Australia?

The Australian version supplied by DeviceDeal is covered by the official StarTech.com 2-year manufacturer warranty in Australia, subject to StarTech.com terms and product assessment.

(SV431DPDDUA2)

Features and highlights

Dual 4K 60Hz displays

Supports two DisplayPort displays at up to 3840 × 2160 60Hz.

Four-computer access

Switch one dual-monitor console between four connected computers.

Shared USB 2.0 peripherals

A built-in 2-port USB 2.0 hub shares additional peripherals with the selected host.

Separate audio switching

3.5 mm microphone and speaker connections provide independent analog audio support.

Key highlights

Dual 4K 60Hz displays
Four-computer access
Shared USB 2.0 peripherals
Separate audio switching

Warranty confidence

2-year manufacturer warranty
Official StarTech.com manufacturer warranty in Australia for this DeviceDeal-supplied Australian version, subject to StarTech.com warranty terms and product assessment.

Specifications

Technical specifications for StarTech SV431DPDDUA2. Values and conditions are organised from the supplied exact-product information and verified exact-SKU StarTech source where required.

Warranty Information

Warranty	2 Years

Connector(s)

Console Interface(s)	3.5 mm Mini-Jack (3 Position) Female DisplayPort (20 pin) Female USB Type-A (4 pin) USB 2.0 Female USB Type-A (4 pin; HID Port) USB 1.1 Female
Host Connectors	3.5 mm Mini-Jack (3 Position) Female DisplayPort (20 pin) Female USB B (4 pin) Female

Environmental

Humidity	0% - 80%
Operating Temperature	0°C - 40°C
Storage Temperature	-10°C - 60°C

Hardware

Audio	Yes
Cables Included	No
Daisy-Chain	No
KVM Ports	4
Number of Monitors Supported	2
PC Interface	USB
PC Video Type	DisplayPort
Rack-Mountable	No
U Height	2U

Indicators

LED Indicators	Green - Online indicator (One LED per port) Power Red - Select indicator (One LED per port)

Packaging Information

Package Height	87 mm [3.4 in]
Package Length	29.7 cm [11.7 in]
Package Width	24.3 cm [9.6 in]
Shipping (Package) Weight	1.8 kg [3.9 lb]

Performance

Aspect Ratio	16:9
Auto Scan	3, 8, 15 & 30 seconds
DVI Support	No
Hot-Key Selection	Yes
IP Control	No
Maximum Data Transfer Rate	500 Mbps (USB 2.0)
Maximum Digital Resolutions	3840 x 2160 (Ultra HD 4K) @ 60hz
Maximum Number of Users	1
MTBF	142000 hours
On-Screen Display	No
Port Selection Support	Push Button and Hotkeys
Supported Resolutions	1024x768 1280x720 (High-definition 720p) 1920x1080 (High-definition 1080p) 1920x1200 2560x1600 3840 x 2160 (4K)@ 60hz
Wide Screen Supported	Yes

Physical Characteristics

Color	Black
Enclosure Type	Steel
Product Height	6.3 cm [2.5 in]
Product Length	12.7 cm [5 in]
Product Width	21.6 cm [8.5 in]
Weight of Product	1.2 kg [2.7 lb]

Power

Center Tip Polarity	Positive
Input Current	0.6 A
Input Voltage	100 - 240 AC
Output Current	1.5 A
Output Voltage	12 DC
Plug Type	M
Power Consumption (In Watts)	18 W
Power Source	AC Adapter Included

What's in the Box

Included in Package	KVM switch quick start guide rubber feet universal power adapter (NA/JP, EU, UK, ANZ)

SKU	SV431DPDDUA2
Barcode #	65030867863
Brand	STARTECH
Shipping Weight	1.7300kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.290m
Shipping Cubic	0.001450000m3
