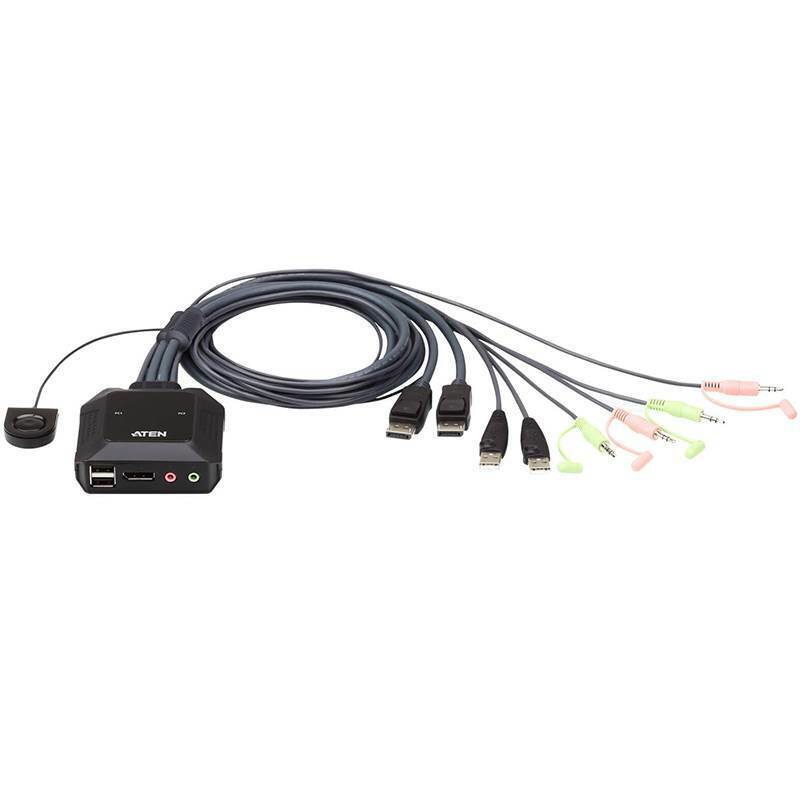

The CS22DP 2-Port USB DisplayPort Cable KVM Switch is a control unit that allows access to two computers from a single USB and DisplayPort console (keyboard, video and mouse) with audio. With the CS22DP, you can quickly and effortlessly switch between two DisplayPort computers using a convenient remote port selector pushbutton.

The CS22DP supports multiplatform operations allowing you to switch between two PC’s running different operating systems. Moreover, the compact design allows for an efficient and tidy installation, providing an ideal space-saving solution to keep your desk well-organized.

It’s fast and easy to set up the CS22DP. Simply plug the KVM cables into their respective ports on the CS22DP and on the computers. There is no need to install software or configure devices – just plug and play.

Package Contents

  • 1x CS22DP 2-Port USB DisplayPort Cable KVM Switch
  • 1x User Instructions
  • One KVM console controls two USB DisplayPort computers
  • Superior video quality – up to 4096 x 2160 @ 30Hz
  • Computer selection via Remote Port Selector
  • OS Support: Windows, Mac and Linux
  • Supports DisplayPort Dual-Mode (DP++)* for directly outputting single-link HDMI and/or DVI signals via an externally powered DisplayPort-to-HDMI/DVI DP++ adapter
  • Supports microphone and speakers
  • The USB ports can be used for USB peripheral sharing**
  • Supports USB hot-plugging
  • HDCP Compatible
  • Bus-powered

    *DisplayPort Dual-Mode (DP++) requires the use of a powered DP++ adapter. The graphics source must be DP++ compliant.
    ** The CS22DP may require an external power supply via a micro USB port


Computer Connections2
Port SelectionRemote Port Selector
Connectors
Console Ports1 x DisplayPort Female
2 x USB Type A Female
1 x 3.5mm Audio Jack Female (Green)
1 x 3.5mm Audio Jack Female (Pink)

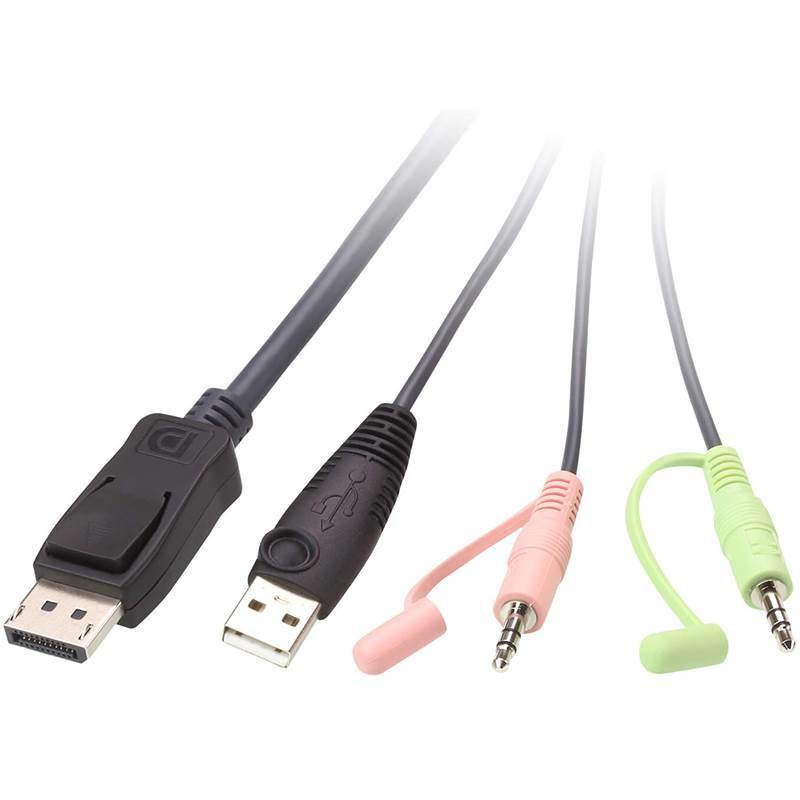

KVM (Computer) Ports2 x DisplayPort Male
2 x USB Type A Male
2 x 3.5mm Audio Jack Male (Green)
2 x 3.5mm Audio Jack Male (Pink)

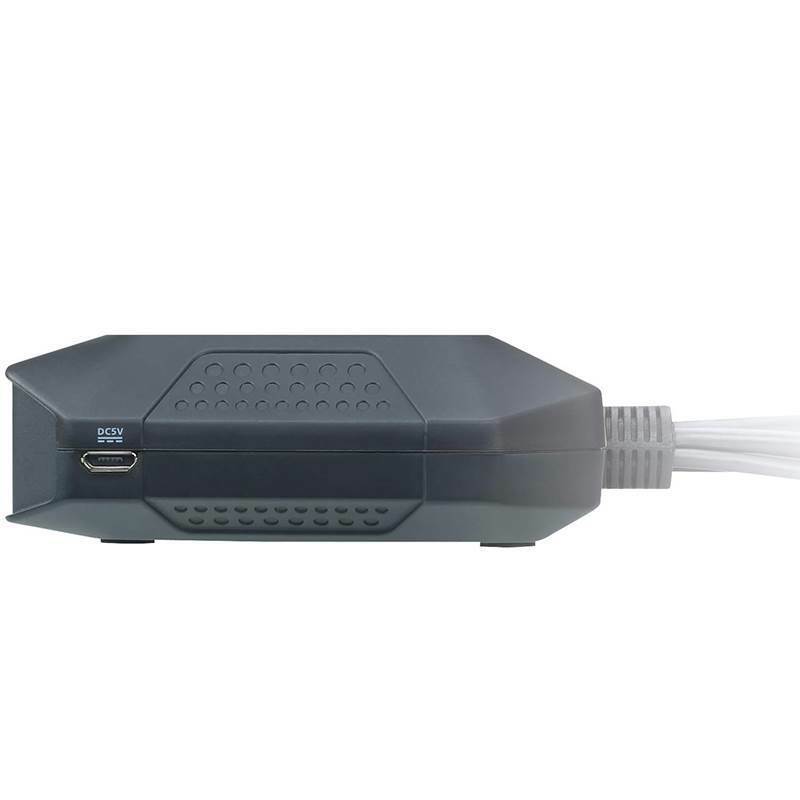

Power (Optional)1 x USB Micro Type B Female
LEDs
KVM Port (On Line /Selected)2 (White)
Cable Length
KVM2 x 1.2 m
Remote Port Selector1.8 m
Emulation
Keyboard / MouseN/A
Video4096 x 2160 @ 30Hz
Power ConsumptionDC5V:1.38W:28BTU
Environmental
Operating Temperature0 - 50°C
Storage Temperature-20 - 60°C
Humidity0-80% RH, Non-condensing
Physical Properties
HousingPlastic
Weight0.35 kg ( 0.77 lb )
Dimensions (L x W x H)8.34 x 8.42 x 3.04 cm
(3.28 x 3.31 x 1.2 in.)
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

(CS22DP-AT)

ATEN 2-Port USB DisplayPort Cable KVM Switch with Remote Port Selector - Console Ports: 2x USB Type A Female, 1x DisplayPort Female, 1x 3.5mm Audio Jack Female (Green), 1x 3.5mm Audio Jack Female (Pink) - Computer Ports: 2x USB Type A Male, 2x DisplayPort Male, 2x 3.5mm Audio Plug Male (Green), 2x 3.5mm Audio Plug Male (Pink) - CS22DP - 2 Years Limited Warranty
SKU CS22DP-AT
Barcode # 672792007408
Brand Aten
Shipping Weight 1.0000kg
Manufacturer Warranty: 2 Years Limited Warranty
