STARTECH P4A20132-KM-SWITCH 4-Port USB/KM Switch with Mouse Roaming

Four-port keyboard and mouse switch with mouse roaming, USB 5Gbps sharing, audio and preset monitor layouts.

Quick answer: Move one keyboard and mouse across four computers by mouse roaming, hotkeys or push button, without switching video through the unit.

Best forMulti-computer control desks, network operations, server rooms and mixed-platform workstations with one screen per computer.

Check before orderingHost cables are not included. On a multi-monitor host, mouse roaming is limited to that computers primary display.

Answers before you buy

Frequently asked questions

What does P4A20132-KM-SWITCH do?

Move one keyboard and mouse across four computers by mouse roaming, hotkeys or push button, without switching video through the unit.

Who is this product best for?

Multi-computer control desks, network operations, server rooms and mixed-platform workstations with one screen per computer.

What should I check before ordering?

Host cables are not included. On a multi-monitor host, mouse roaming is limited to that computers primary display.

Does it require drivers or software?

No special driver is required for normal operation; compatibility still depends on the connected computers and peripherals.

What is included in the package?

The switch, power components and guide are included as specified; host connection cables are not included.

What is the key installation requirement?

Host cables are not included. On a multi-monitor host, mouse roaming is limited to that computers primary display.

Is it suitable for an Australian setup?

Yes. DeviceDeal supplies the Australian-market version; always confirm the available ports, power and system compatibility for your installation.

What warranty applies?

P4A20132-KM-SWITCH carries a StarTech.com 2 years manufacturer warranty, subject to the manufacturers terms and eligibility requirements.

Planning a broader setup? Browse the DeviceDeal buying guides. View the DeviceDeal product page.

(P4A20132-KM-SWITCH)

Features & highlights

Why choose P4A20132-KM-SWITCH?

?Four-computer controlShare one keyboard and mouse across up to four computers.

?Mouse roamingMove the pointer between screens to change the active host.

?Four layout presetsMatch common physical arrangements for smoother pointer movement.

?Universal switchingHotkey and push-button methods remain available.

?USB and audio sharingIncludes USB 5Gbps, USB audio and 3.5mm stereo connectivity.

?No driver requiredDesigned for supported Windows, macOS and Linux environments.

Compatibility reminder: Host cables are not included. On a multi-monitor host, mouse roaming is limited to that computers primary display.

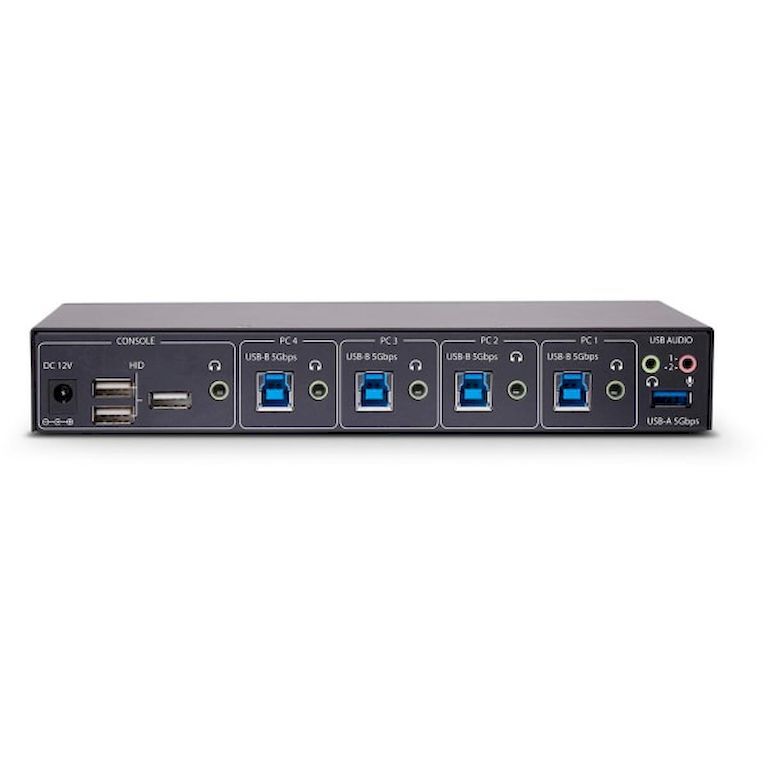

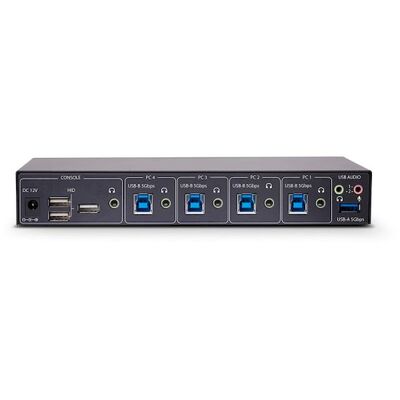

STARTECH P4A20132-KM-SWITCH 4-Port USB/KM Switch with Mouse Roaming product image

Technical specifications

P4A20132-KM-SWITCH specifications

Exact-model specifications for compatibility checking.

Warranty Information
Warranty	2 Years
Connectors
Console Interfaces	2 - USB-A 5Gbps; 3 - USB 2.0 Type-A; 3 - 3.5mm stereo
Host Connectors	4 - USB-B 5Gbps; 4 - 3.5mm stereo
Hardware
KM Ports	4
PC Interface	USB 3.2 Gen 1 (5Gbps)
Audio	Yes
Chipset ID	GL3523
Enclosure	Steel
Cables Included	No
Performance
Maximum Data Rate	5Gbps
Port Selection	Push button, hotkeys and Mouse Switching
Monitor Layouts	Four preset physical layouts
Audio Specification	Analogue stereo, 2 channel
MTBF	156,000 hours
Software
OS Compatibility	No drivers or software required; works with supported Windows, macOS and Linux systems
Power
Power Source	AC adapter included
Input	100240V AC, 0.6A
Output	12V DC, 1.5A
Power Consumption	18W
Environmental
Operating Temperature	0°C to 40°C
Storage Temperature	-10°C to 60°C
Humidity	0% to 80% RH
Physical Characteristics
Colour / Material	Black / Steel
Dimensions	22.0 x 13.0 x 3.4cm
Weight	0.8kg
What's in the Box
Included	1 - KM switch; 1 - universal NA/EU/UK/ANZ power adapter; 1 - rubber feet set; 1 - quick-start guide

Sources: supplied product file, DeviceDeal product page and official StarTech.com specifications. Product appearance and specifications may change; confirm critical deployment requirements before ordering.

SKU	P4A20132-KM-SWITCH
Barcode #	65030902250
Brand	Startech
Shipping Weight	1.2400kg
Shipping Width	0.006m
Shipping Height	0.030m
Shipping Length	0.025m
