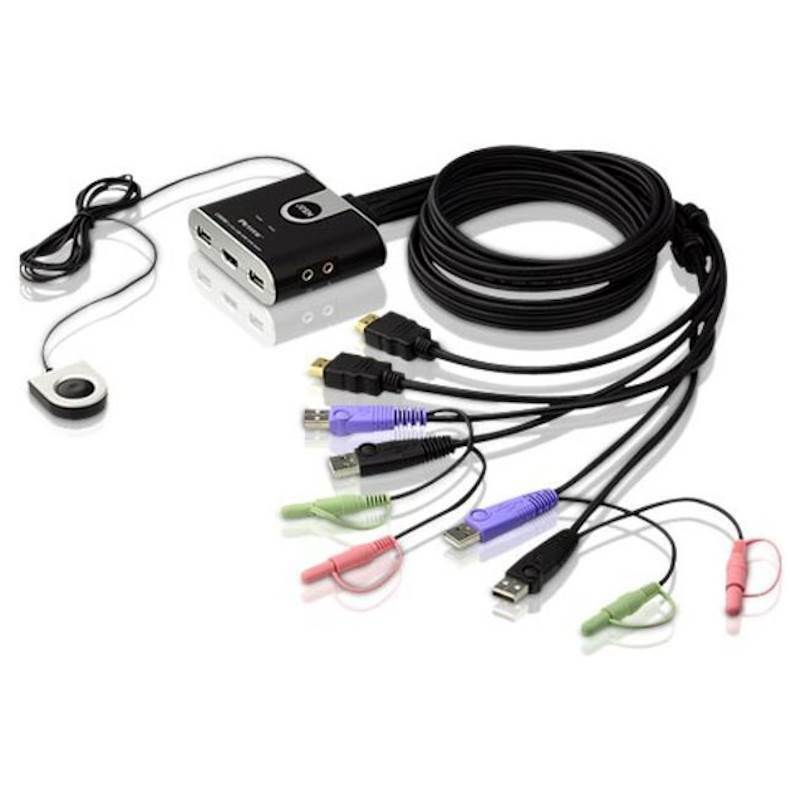

The CS692 HD USB KVM Switch links two HD-enabled PCs or devices to a single USB keyboard, USB mouse, and HD display console. The CS692 Switch takes a giant step forward from prior cable KVM models in the Petite series, by offering full HDMI functionality, USB 2.0 peripheral sharing (via a USB hub attached to the USB mouse port), and a firmware upgrade function that allows you to keep up with latest available versions.



Featuring an unbeatable combination of HDMI functionality, USB 2.0 peripheral sharing convenience, gaming keyboard support, and enhanced user-friendly operations, the CS692 allows users to keep up with the latest innovations in desktop multimedia applications.

Package Contents

  • 1x CS692 2-Port USB HD Audio/Video KVM Switch with Remote Port Selector
  • 1x User Instructions
  • 2x Hotkey Stickers
  • One KVM console controls two USB HDMI computers
  • HDMI compatible; HDCP compatible
  • Computer selection via remote port selector, hotkeys, and USB mouse
  • Audio-enabled - full bass response provides a rich experience for 2.1 channel surround sound systems
  • Independent switching of the KVM and Audio focus - one computer has the KVM focus and the other the Audio focus*
  • Multiplatform support - Windows, Mac, Linux
  • Compact design, built-in all-in-one cables (2 x 1.2 m)
  • Superior video quality - up to 1920 x 1200; 1080p
  • Compatible with widescreen LCD monitors
  • Video DynaSync™ - exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
  • Power on detection - if one computers is powered off, the CS692 will automatically switch to the other computer
  • Supports gaming and multimedia keyboards
  • Supports multifunction and wireless keyboards and mice
  • Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
  • Mac keyboard support and emulation**
  • USB 2.0 mouse port can be used for USB hub and USB peripheral sharing***
  • Non-Powered
  • Firmware upgradable

    Note: * HD audio through the HD monitor's built-in speakers cannot be switched independently.
    ** PC keyboard combinations emulate Mac keyboards. Mac keyboards work only with their own computers.
    *** May require an additional power adapter. To use the USB 2.0 mouse port as a USB hub, you must first disable mouse emulation mode.

2-Port USB HD Audio/Video KVM Switch


Computer Connections 2
Port Selection Hotkey, Remote Port Selector, Mouse
Connectors
Console Ports 1 x HDMI Female (Black)
2 x USB Type A Female
1 x 3.5mm Audio Jack Female (Green)
1 x 3.5mm Audio Jack Female (Pink)
KVM Ports 2 x HDMI Male (Black)
2 x USB Type A Male (Purple)
2 x USB Type A Male (Black)
2 x 3.5mm Audio Jack Male (Green)
2 x 3.5mm Audio Jack Male (Pink)
LEDs
KVM 2 (Green)
Cable Length
KVM 2 x 1.2 m
Remote Port Selector 1.8 m
Emulation
Keyboard / Mouse USB
Video 1920 x 1080 @ 60 Hz;
1920 x 1200 @ 60Hz
Scan Interval 3, 5, 10, 20 secs. (default 5 secs.)
Power Consumption DC5V:1.76W:21BTU
Environmental
Operating Temperature 0 - 50°C
Storage Temperature -20 - 60°C
Humidity 0-80% RH, Non-condensing
Physical Properties
Housing Plastic
Weight 0.48 kg ( 1.06 lb )
Dimensions (L x W x H) 8.24 x 6.65 x 2.52 cm
(3.24 x 2.62 x 0.99 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.



Description Ver. Release Date File Name
Firmware Upgrade v1.2.115 cs692_v1.2.115.zip
Firmware Upgrade v1.2.114 cs692_v1.2.114.zip
Firmware Upgrade v1.2.113 cs692_v1.2.113.zip
Firmware Upgrade v1.2.112 cs692_v1.2.112.zip
Firmware Upgrade v1.1.104 cs692_v1.1.104.zip
Firmware Upgrade v1.1.103 cs692_v1.1.103.zip
Firmware Upgrade v1.1.101 cs692_v1.1.101.zip
Firmware Upgrade v1.0.067 cs692_v1.0.067.zip
Firmware Upgrade v1.0.066 cs692_v1.0.066.zip





(CS692-AT)

Computer Connections 2
Port Selection Hotkey, Remote Port Selector, Mouse
Connectors
Console Ports 1 x HDMI Female (Black)
2 x USB Type A Female
1 x 3.5mm Audio Jack Female (Green)
1 x 3.5mm Audio Jack Female (Pink)
KVM Ports 2 x HDMI Male (Black)
2 x USB Type A Male (Purple)
2 x USB Type A Male (Black)
2 x 3.5mm Audio Jack Male (Green)
2 x 3.5mm Audio Jack Male (Pink)
LEDs
KVM 2 (Green)
Cable Length
KVM 2 x 1.2 m
Remote Port Selector 1.8 m
Emulation
Keyboard / Mouse USB
Video 1920 x 1080 @ 60 Hz;
1920 x 1200 @ 60Hz
Scan Interval 3, 5, 10, 20 secs. (default 5 secs.)
Power Consumption DC5V:0.72W:8BTUBTU
Environmental
Operating Temperature 0 - 50°C
Storage Temperature -20 - 60°C
Humidity 0-80% RH, Non-condensing
Physical Properties
Housing Plastic
Weight 0.48 kg ( 1.06 lb )
Dimensions (L x W x H) 8.24 x 6.65 x 2.52 cm
(3.24 x 2.62 x 0.99 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
SKU CS692-AT
Barcode # 672792002182
Brand Aten
Shipping Weight 0.6100kg
Shipping Width 0.070m
Shipping Height 0.235m
Shipping Length 0.163m
Shipping Cubic 0.002681000m3

Manufacturer Warranty: 2 Years Limited Warranty
