DisplayPort 1.4 video
Supports one display up to 7680 x 4320 at 60Hz or 4K at up to 144Hz when the complete signal chain supports the required DSC and bandwidth.
STARTECH D86A2-4-PORT-8K-KVM 4-PORT DISPLAYPORT KVM SWITCH 8K 60HZ
Model # D86A2-4-PORT-8K-KVM
-
SKU: D86A2-4-PORT-8K-KVM
- Pick Up Available
- Australian Warranty
- Checkout Securely
StarTech.com · D86A2-4-PORT-8K-KVM

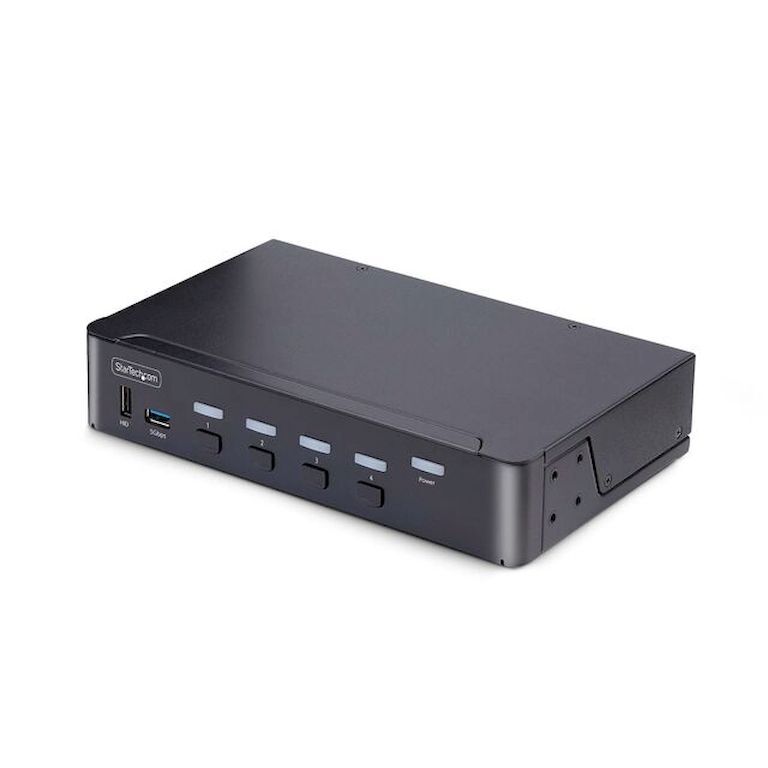

StarTech 4-Port DisplayPort 1.4 KVM Switch - 8K 60Hz
Control four DisplayPort and USB-A computers using one DisplayPort monitor, shared keyboard, mouse, audio and USB peripherals, with support up to 8K 60Hz.
4 computers8K 60Hz / 4K 144HzUSB 5Gbps hub2-year warranty
Product overview
D86A2-4-PORT-8K-KVM is a single-display, four-host KVM with push-button and hotkey switching. It adds two USB 5Gbps peripheral ports, four USB 2.0 HID/device ports and independent audio switching.
Features that matter
Four-host switching
Select computers using front push-buttons or keyboard hotkeys, with LEDs and an audible confirmation buzzer.
Shared USB peripherals
Provides two USB-A 5Gbps ports and four USB-A 480Mbps ports for keyboard, mouse and other supported devices.
Independent audio switching
Listen to audio from one computer while controlling another, using DisplayPort or 3.5mm stereo audio.
What to know before ordering
Cables sold separately
Four DisplayPort, USB-B and optional 3.5mm host cable sets are required and not included.
Maximum-resolution requirements
8K 60Hz requires a DisplayPort 1.4 host, DSC support and compatible display/cables; actual resolution follows the weakest component.
Single KVM display output
The KVM provides one DisplayPort console output. MST pass-through is supported, but downstream topology and operating-system support must be verified separately.
Warranty confidence in Australia
Australian version · Official StarTech.com warranty
This item is the Australian version supplied by DeviceDeal and is covered by the official two-year StarTech.com manufacturer warranty in Australia. Retain your DeviceDeal tax invoice as proof of purchase. Coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
Frequently asked questions
What is StarTech D86A2-4-PORT-8K-KVM?
D86A2-4-PORT-8K-KVM is a four-port, single-display DisplayPort 1.4 KVM switch with shared USB and audio peripherals.
What is the maximum resolution?
The verified maximum is 7680 x 4320 at 60Hz or 4K at up to 144Hz, subject to DisplayPort 1.4, DSC and complete signal-chain support.
How many computers and displays are supported?
It switches between four computers and provides one DisplayPort console output for the primary display.
Which USB ports are available?
The console side has two USB-A 5Gbps ports and four USB-A 480Mbps ports. Each host uses one USB-B 5Gbps connection.
Are KVM cables included?
No. Host DisplayPort, USB and optional analogue-audio cables are sold separately.
Which operating systems are supported?
The KVM is OS independent and supports Windows, macOS, ChromeOS and Linux on compatible hardware platforms.
What is included in the package?
The package contains the KVM switch, universal power adapter, four rubber feet and a quick-start guide. Host cables are not included.
What warranty applies in Australia?
D86A2-4-PORT-8K-KVM is the Australian version supplied by DeviceDeal and is covered by the official two-year StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms, eligibility and product assessment.
(D86A2-4-PORT-8K-KVM)
Features and highlights
D86A2-4-PORT-8K-KVM key capabilities
Product-specific highlights verified for this exact StarTech.com model.
DisplayPort 1.4 video
Supports one display up to 7680 x 4320 at 60Hz or 4K at up to 144Hz when the complete signal chain supports the required DSC and bandwidth.
Four-host switching
Select computers using front push-buttons or keyboard hotkeys, with LEDs and an audible confirmation buzzer.
Shared USB peripherals
Provides two USB-A 5Gbps ports and four USB-A 480Mbps ports for keyboard, mouse and other supported devices.
Independent audio switching
Listen to audio from one computer while controlling another, using DisplayPort or 3.5mm stereo audio.
Key highlights
- 4 host ports · 1 console display
- DP 1.4 · HDR10 · DSC
- 2 x USB 5Gbps + 4 x USB 2.0
- Hotkey / push-button switching
- Official two-year StarTech.com manufacturer warranty in Australia
Technical specifications
StarTech D86A2-4-PORT-8K-KVM
Verified specifications and package details for the exact model.
General and Video
KVM ports
4
Console monitors
1 primary DisplayPort output
Video revision
DisplayPort 1.4
Maximum resolution
7680 x 4320 at 60Hz
Other listed modes
4K 144Hz / 120Hz; ultrawide 5120 x 1440 at 60Hz
HDR / content protection
HDR10; HDCP 2.2 / 1.4; DSC
MST pass-through
Yes
Warranty
2 Years
UPC
065030893206
Host and Console Connections
Per host
DisplayPort; USB-B 5Gbps; 3.5mm TRS audio
Console video
1 x DisplayPort
Console USB 5Gbps
2 x USB-A
Console USB 480Mbps
4 x USB-A
Console audio
1 x 3.5mm TRS
Power
12V DC, 3A adapter; 36W listed consumption
Switching and Compatibility
Selection
Push-button and hotkeys
Independent audio switching
Yes
Auto scan
3, 8, 15 or 30 seconds
OS support
OS independent; Windows, macOS, ChromeOS, Linux
CAC / OSD / IP control
No / No / No
Cables included
No
Rack-mountable
No; SV431RACK accessory sold separately
Physical and Packaging
Material / colour
Black steel
Product dimensions (L x W x H)
220 x 130 x 44mm
Product weight
1038g
Operating temperature
040°C
Storage temperature
-2060°C
Humidity
085% RH, non-condensing
Package dimensions (W x D x H)
245 x 297 x 87mm
Shipping weight
1594g
Package contents
KVM; power adapter; 4 rubber feet; quick-start guide
| SKU | D86A2-4-PORT-8K-KVM |
| Barcode # | 65030893206 |
| Brand | STARTECH |
| Shipping Weight | 1.6000kg |
| Shipping Width | 0.009m |
| Shipping Height | 0.030m |
| Shipping Length | 0.025m |
Official StarTech.com manufacturer warranty
2 Years
This item is the Australian version supplied by DeviceDeal and is covered by the official two-year StarTech.com manufacturer warranty in Australia. Retain your DeviceDeal tax invoice as proof of purchase. Coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
This warranty statement applies to StarTech D86A2-4-PORT-8K-KVM.
