ATEN SKU CS22HF-AT

ATEN CS22HF-AT 2-Port USB Full HD HDMI Cable KVM Switch

The ATEN CS22HF-AT is a compact two-port USB HDMI cable KVM switch for controlling two computers from one HDMI display, USB keyboard and USB mouse.

Its integrated 1.2m computer cables, 1.8m remote port selector and support for 1920 x 1080 or 1920 x 1200 at 60Hz simplify Full HD desktop switching.

2 HDMI computersFull HD 1080pRemote port selector1-year warrantyDeviceDeal authorised ATEN reseller

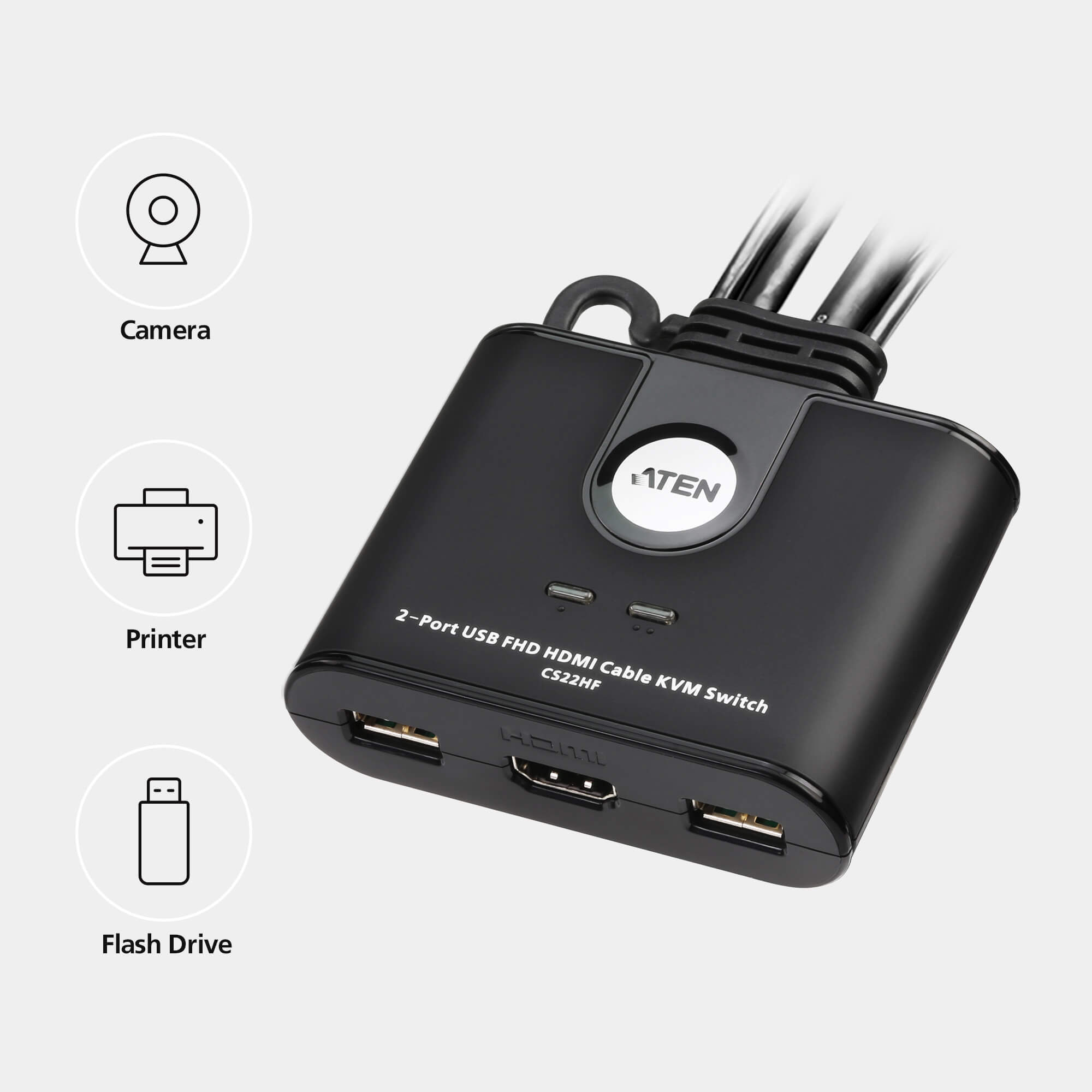

ATEN CS22HF-AT 2-Port USB Full HD HDMI Cable KVM Switch shown in the supplied second product image

Product overview

Two HDMI computers

The supplied specification lists two computer connections and two integrated HDMI and USB cable sets.

Full HD video

The source lists 1920 x 1080 at 60Hz and 1920 x 1200 at 60Hz.

Remote desktop switching

A 1.8m remote selector allows port changes while the KVM unit and its computer cables remain out of the way.

Source review: This SKU has no separate narrative description in the supplied record, so customer-facing claims are limited to the structured specifications and product name.

Frequently asked questions

How many computers connect to the CS22HF-AT?

The supplied specification lists two computer connections.

What video resolutions are listed?

The source lists 1920 x 1080 at 60Hz and 1920 x 1200 at 60Hz.

How long are the computer cables?

The supplied specification lists two 1.2m computer-side cable sets.

How long is the remote selector cable?

The source lists a 1.8m remote port selector cable.

What warranty is supplied?

The source lists a one-year ATEN manufacturer warranty.

(CS22HF-AT)

Features

ATEN CS22HF-AT 2-Port USB Full HD HDMI Cable KVM Switch

KVM connections

2 computer connections
1 HDMI console port
2 USB Type-A console ports
2 HDMI male KVM connections
2 USB Type-A male KVM connections

Video and cables

1920 x 1080 @ 60Hz
1920 x 1200 @ 60Hz
2 x 1.2m computer cables
1.8m remote selector cable

Physical and support

Plastic housing
Weight: 0.26kg
8.24 x 6.65 x 2.52cm
One-year manufacturer warranty

Confirm the integrated cable lengths are suitable for the desktop layout before purchase.

Technical specifications

ATEN CS22HF-AT 2-Port USB Full HD HDMI Cable KVM Switch

Product details
Brand	ATEN
Model / SKU	CS22HF-AT
Product type	2-port USB Full HD HDMI cable KVM switch
Computer connections	2
Port selection	Remote port selector
Connections
Console ports	1 x HDMI female; 2 x USB Type-A female
KVM ports	2 x HDMI male; 2 x USB Type-A male
Video and cables
Video	1920 x 1080 @ 60Hz; 1920 x 1200 @ 60Hz
Computer cables	2 x 1.2m
Remote selector cable	1.8m
Power and environment
Power consumption	DC 5V; 1.518W; 11BTU
Operating temperature	050°C
Storage temperature	-2060°C
Humidity	080% RH, non-condensing
Physical properties
Housing	Plastic
Weight	0.26kg
Dimensions (L x W x H)	8.24 x 6.65 x 2.52cm

SKU	CS22HF-AT
Barcode #	4710469341304
Brand	Aten
Shipping Weight	2.0000kg

Warranty information

ATEN CS22HF-AT 2-Port USB Full HD HDMI Cable KVM Switch

1-Year ATEN Manufacturer Warranty

DeviceDeal is an authorised ATEN reseller. This product is covered by a one-year ATEN manufacturer warranty in Australia, as listed in the supplied product information.
