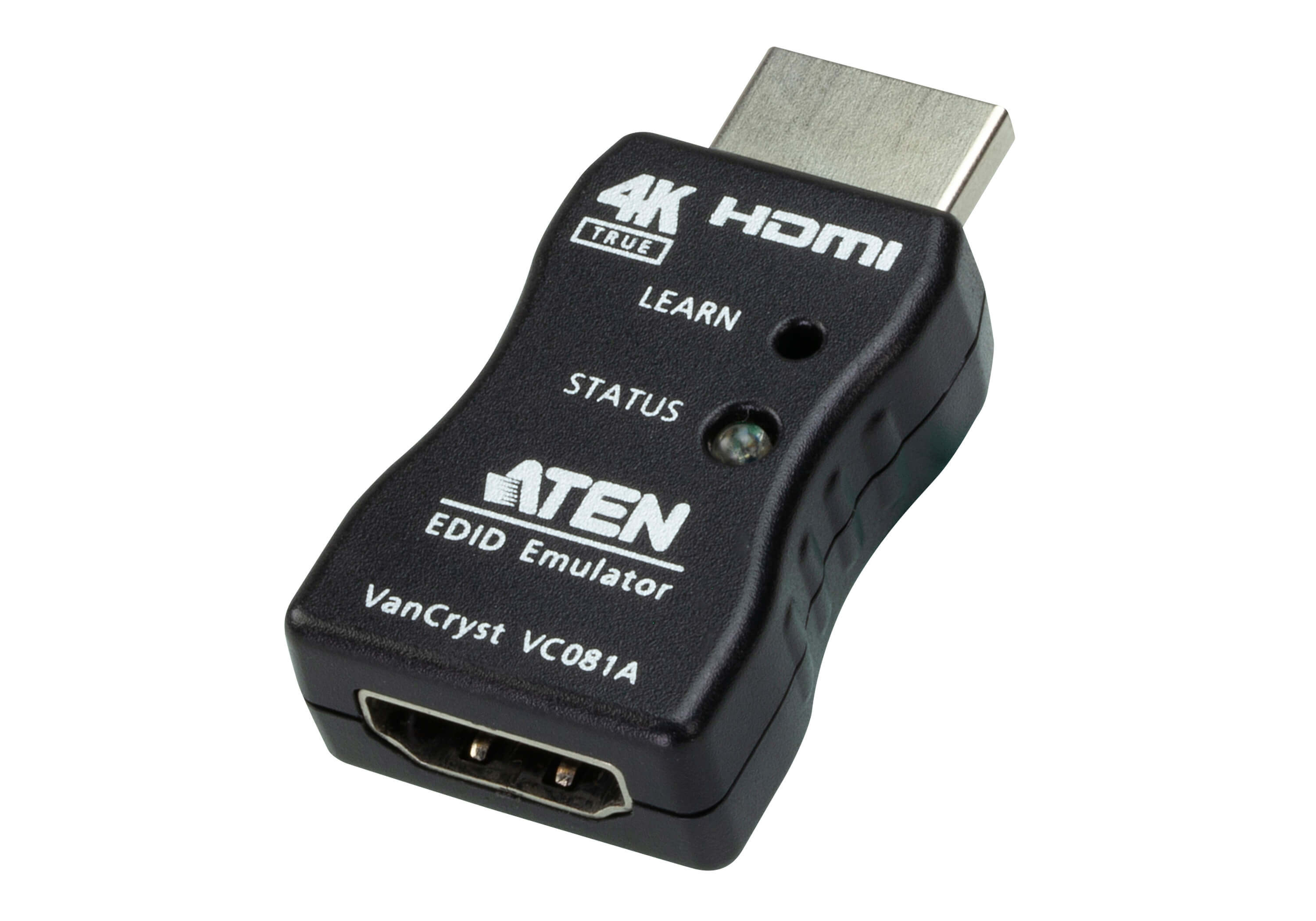

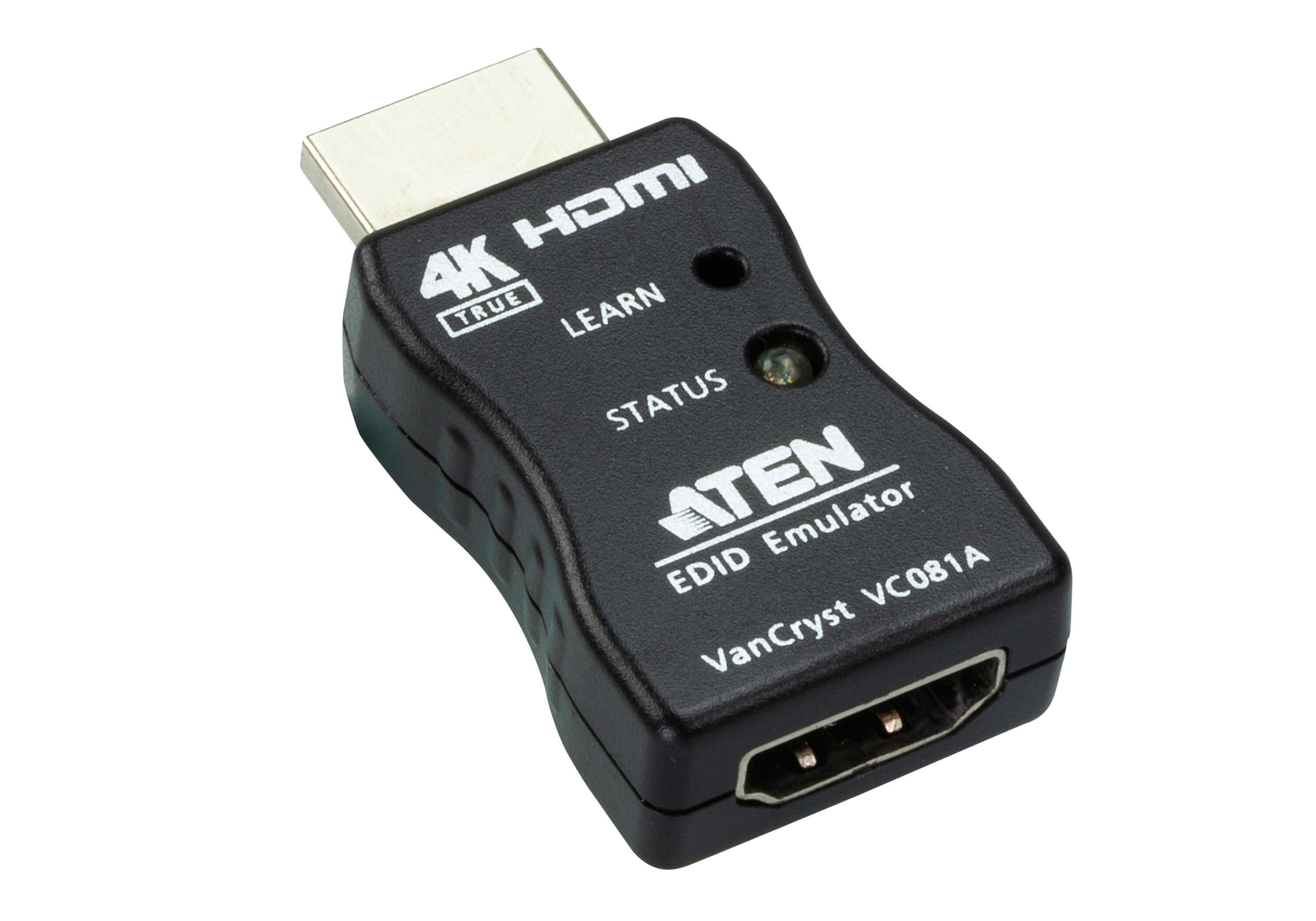

As a True 4K HDMI EDID Emulator Adapter , the VC081A is designed to emulate and store one set of the EDID from the connected display while facilitating 4K video transmission. By learning the EDID from the HDMI display and relaying it to the video source, the VC081A helps to eliminate video communication problems that occur due to the EDID data synchronization failure between the HDMI video source and the connected display.

This new member contains a unique “Learn Button Switch” to allow EDID to be effectively learned and saved. Once the EDID is learned, the VC081A can be used to keep a PC or server awake from a remote location over IP instead of the monitor. The VC081A is an ideal device for avoiding blank or blink display issues led by communication errors between sources and displays when integrating a Pro AV system.

Package Contents

1x VC081A HDMI EDID Emulator
1x user instructions

(VC081A-AT)

Video Input
Interfaces	1 x HDMI Type A Male (Black)
Impedance	100 ?
Video Output
Interfaces	1 x HDMI Type A Female (Black)
Impedance	100 ?
Video
Compliance	HDMI (3D, Deep Color, True 4K) HDCP 2.2 Compatible Consumer Electronic Control (CEC)
Max. Resolution	Default: 1080P@60Hz Learning: 3840x2160@60Hz 4:4:4 & 4096x2160@60Hz 4:4:4
EDID Settings	EDID Mode: Default / Learning
Connectors
Power	Bus-powered (5V DC from source device)
Switches
Mode Switch	EDID Learning
LEDs
Status	Learning (Blue x 1)
Power Consumption	DC5V:0.1WBTU
Environmental
Operating Temperature	0 - 50 ºC
Storage Temperature	-20 - 60 ºC
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Plastic
Weight	0.08 kg ( 0.18 lb )
Dimensions (L x W x H)	4.40 x 2.40 x 1.18 cm (1.73 x 0.94 x 0.46 in.)
Carton Lot	20 pcs
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
