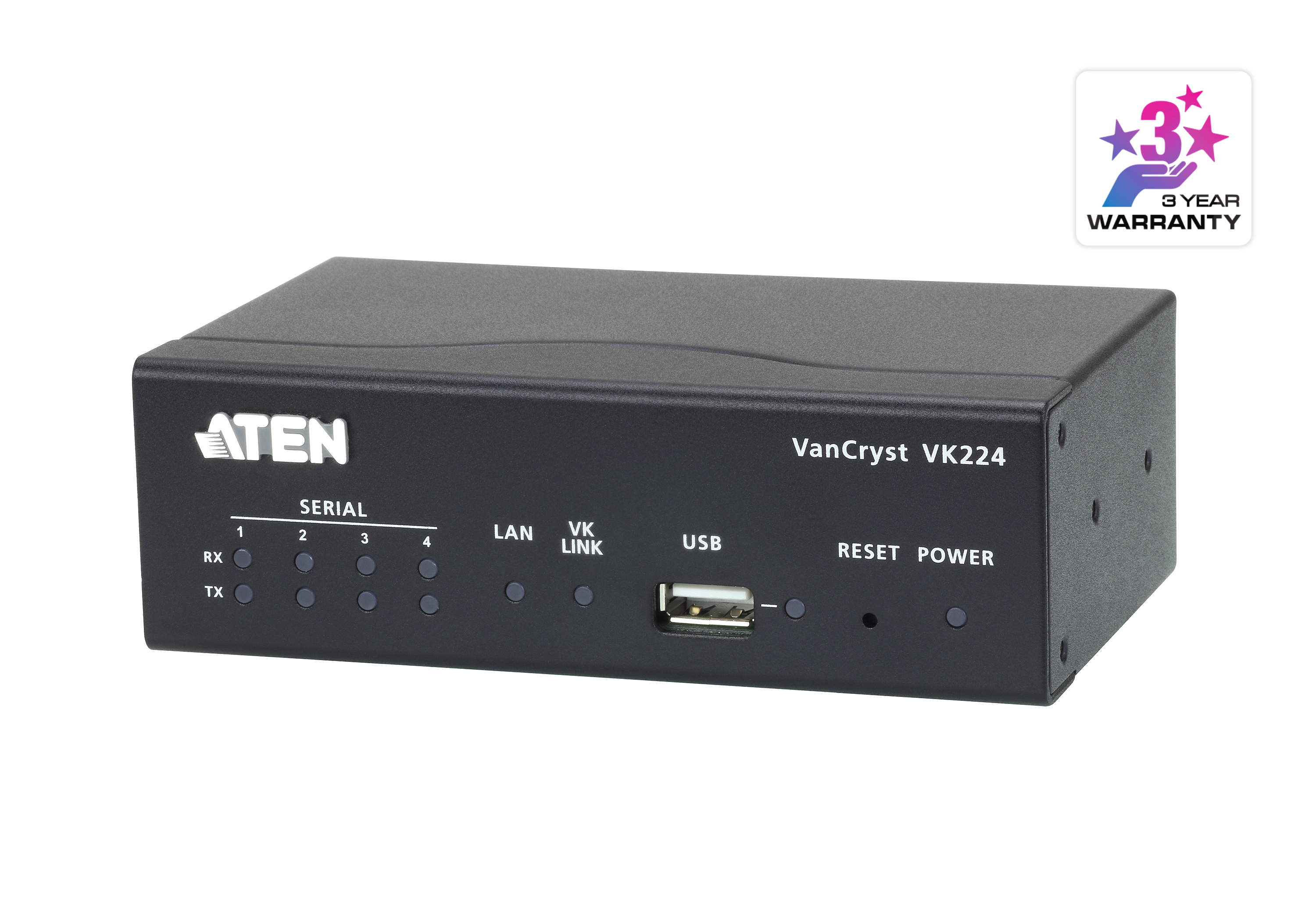

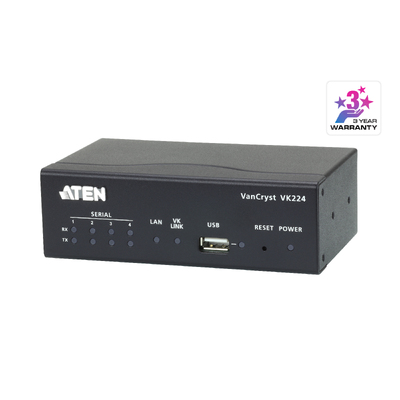

The VK224 4-Port Serial Expansion Box provides four additional bi-directional RS-232 / 422 / 485 serial ports for a flexible expansion of the ATEN Control System. This allows users to control additional serial devices in an environment where more serial devices are required. With the advantage of an Ethernet-based connection, the expansion box can be easily connected to the VK2100 Control Box via a LAN connection from a variety of locations across a network.

Package Contents

1x VK224 4-Port Serial Expansion Box
1x Mounting Kit
1x User Instructions

(VK224-AT)

Interfaces

Serial

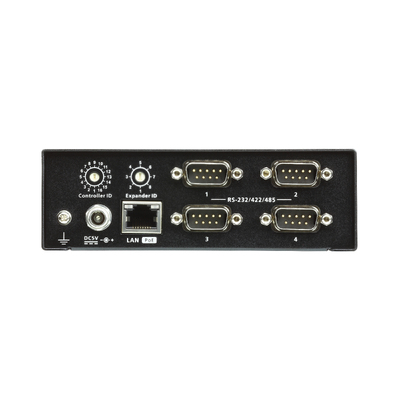

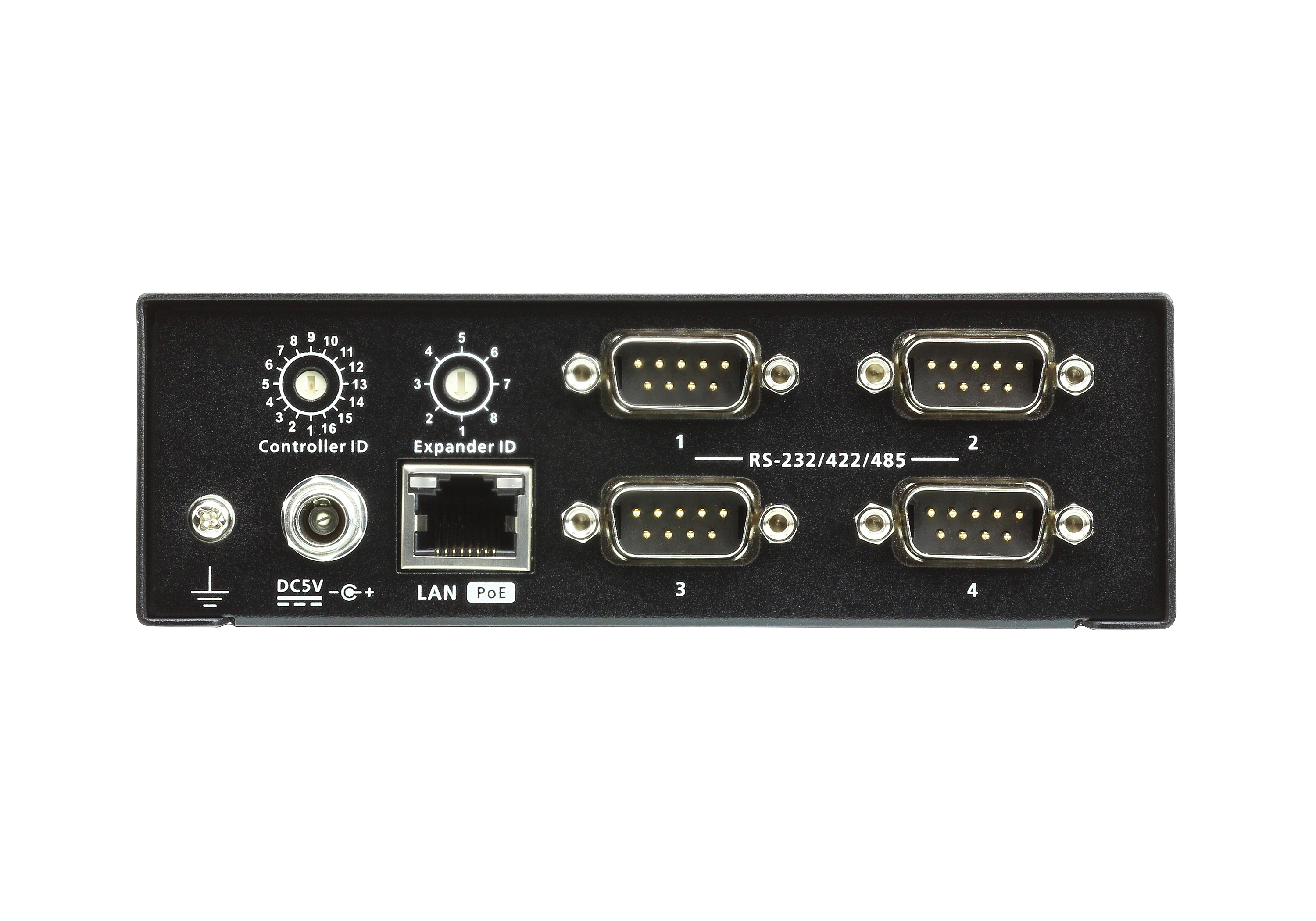

• 4 x Programmable Bi-directional RS-232/422/485 Port
(4 x DB9 Male Connector, configurable via pin assignments);
– Baud Rate: 300 to 115200 (default: 9600);
– Data Bit: 8 (default) or 7;
– Stop Bit: 1 (default) or 2;
– Parity: None (default), Even or Odd;
– Flow Control: None (default) RTS/CTS

RS-232	RS-422	RS-485
Pin2: RX	Pin 1:RX-	Pin3:D+
Pin3: TX	Pin 2: RX+	Pin 4:D-
Pin 5: GND	Pin 3: TX+
Pin 7: RTS	Pin 4: TX-
Pin 8: CTS	Pin 5: GND

Ethernet

• 1 x RJ-45 Female, 10/100Base-T
• Supported Protocol: ARP, ICMP, TCP/IP, DHCP, HTTPS, SSH
• DHCP-enabled. The following default IP settings will be used if no IP is assigned within 30 seconds:
IP: 192.168.0.60
Subnet Mask: 255.255.255.0

Switches

Controller ID

1 x 16-segment Switch

Expander ID

1 x 8-segment Switch

Reset Button

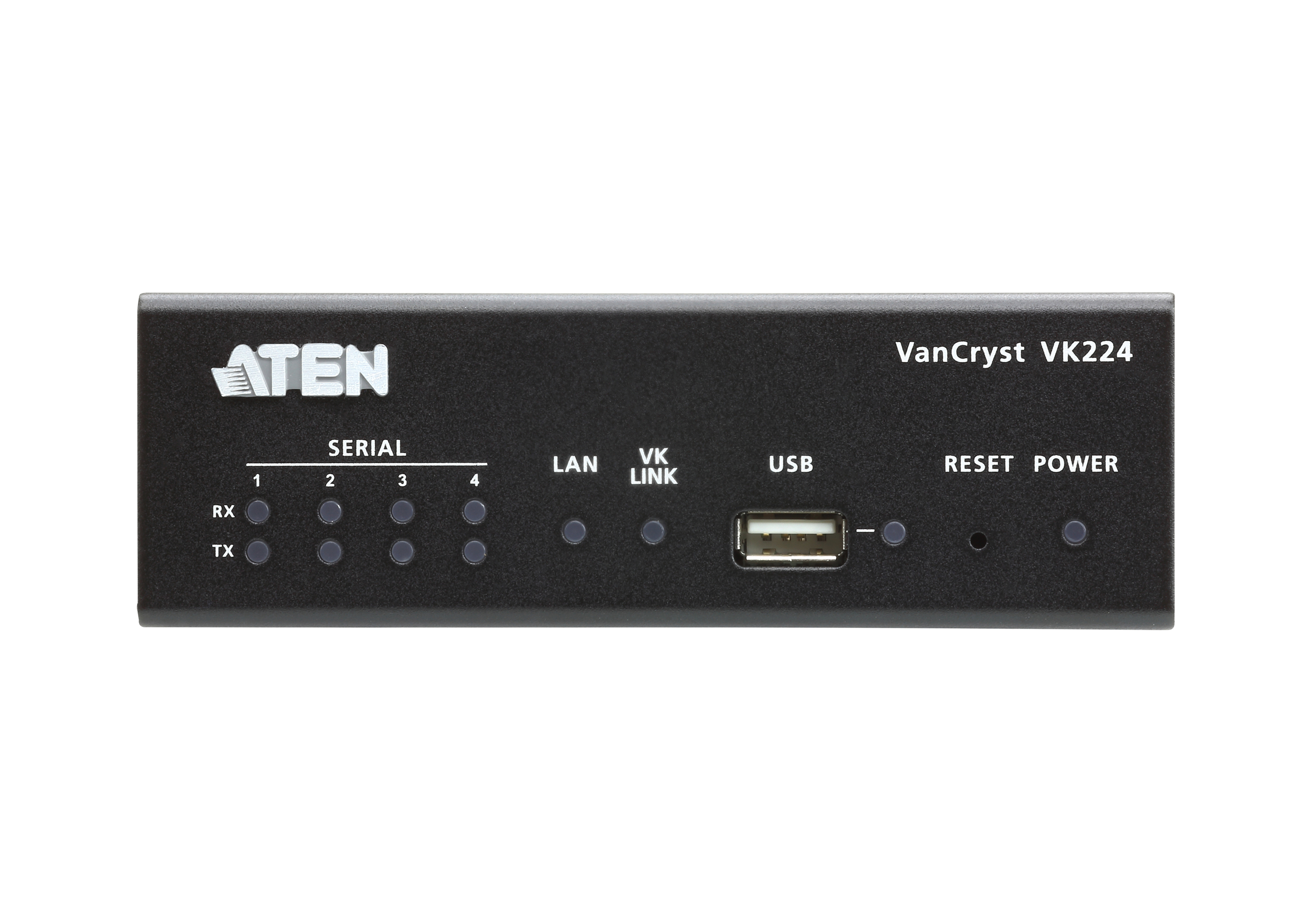

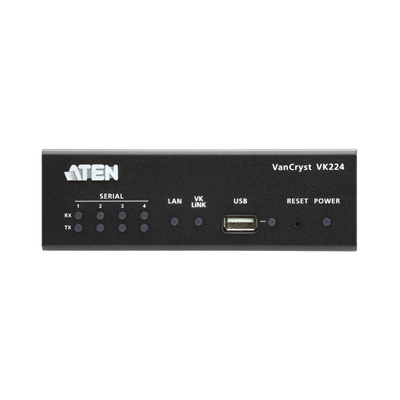

1 x Semi-recessed Pushbutton

USB

1 x USB Type A

Power Consumption

DC5V:3.8W:28BTU
DC48V:4.75W:33BTU
