ATEN VM7584K1-AT 4-Port 10G Optical Input Board (4K@300m (K1, MM) / 10km (K2, SM))
Model # VM7584K1-AT
-
SKU: VM7584K1-AT
- Pick Up Available
- Australian Warranty
- Checkout Securely

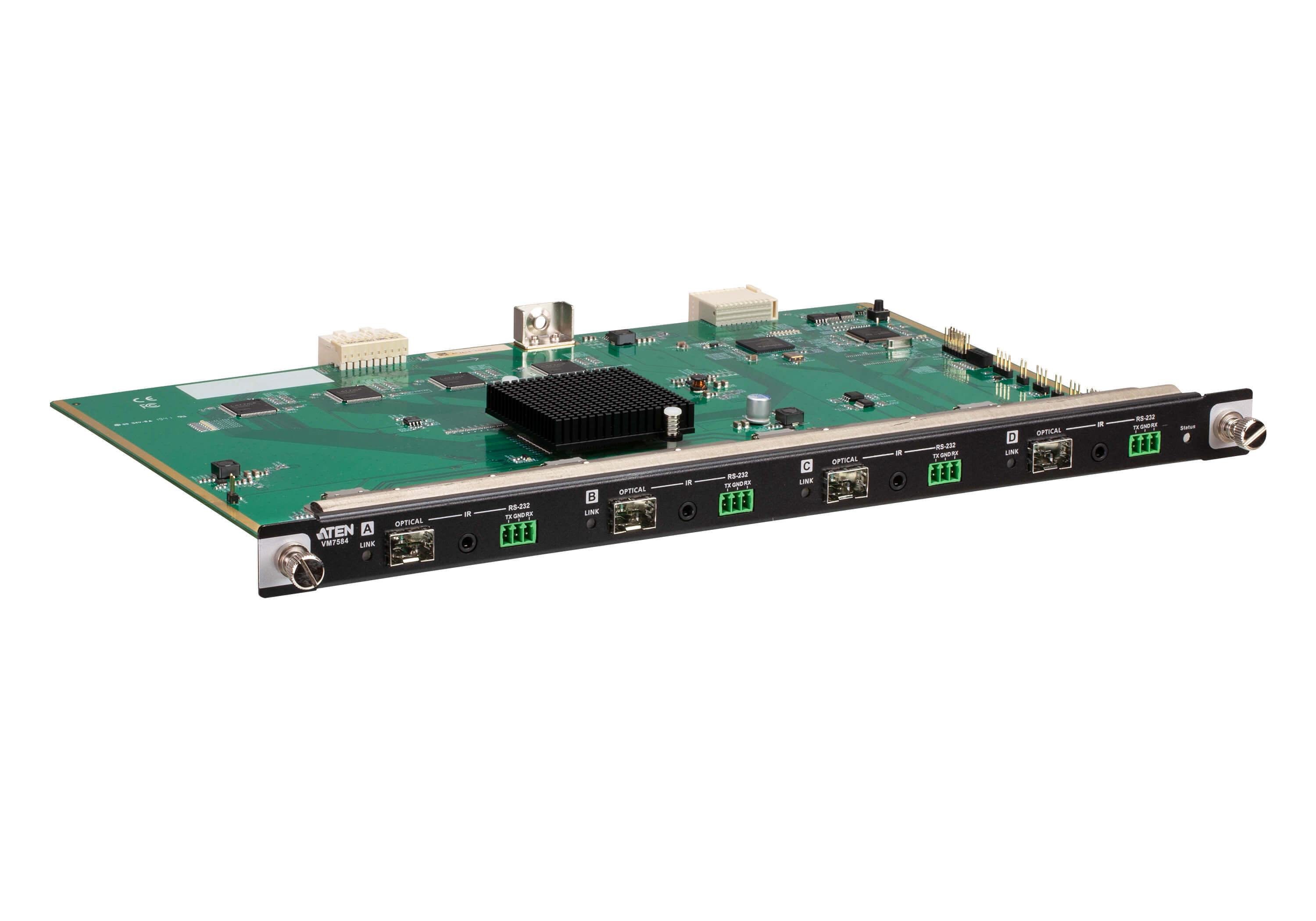

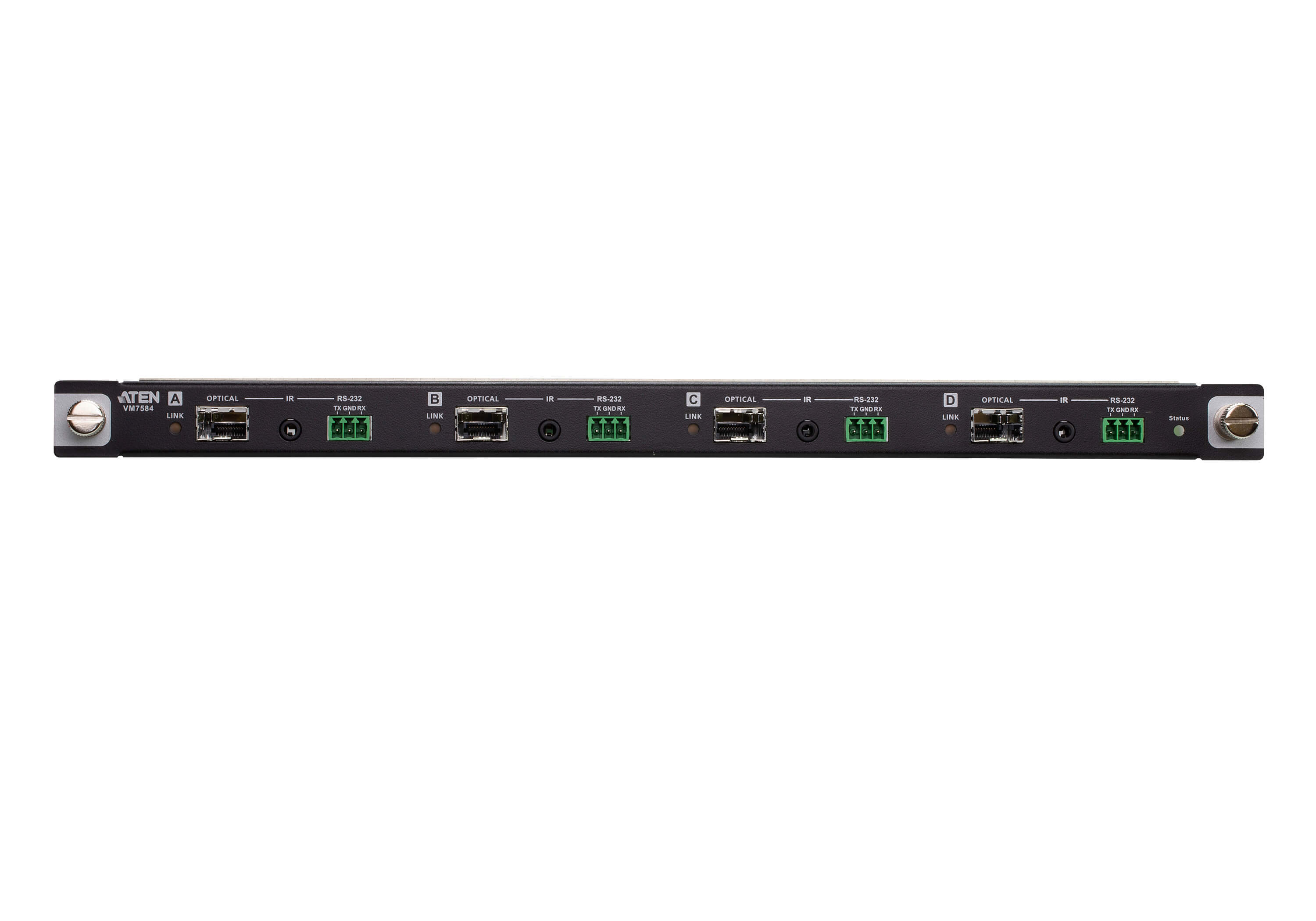

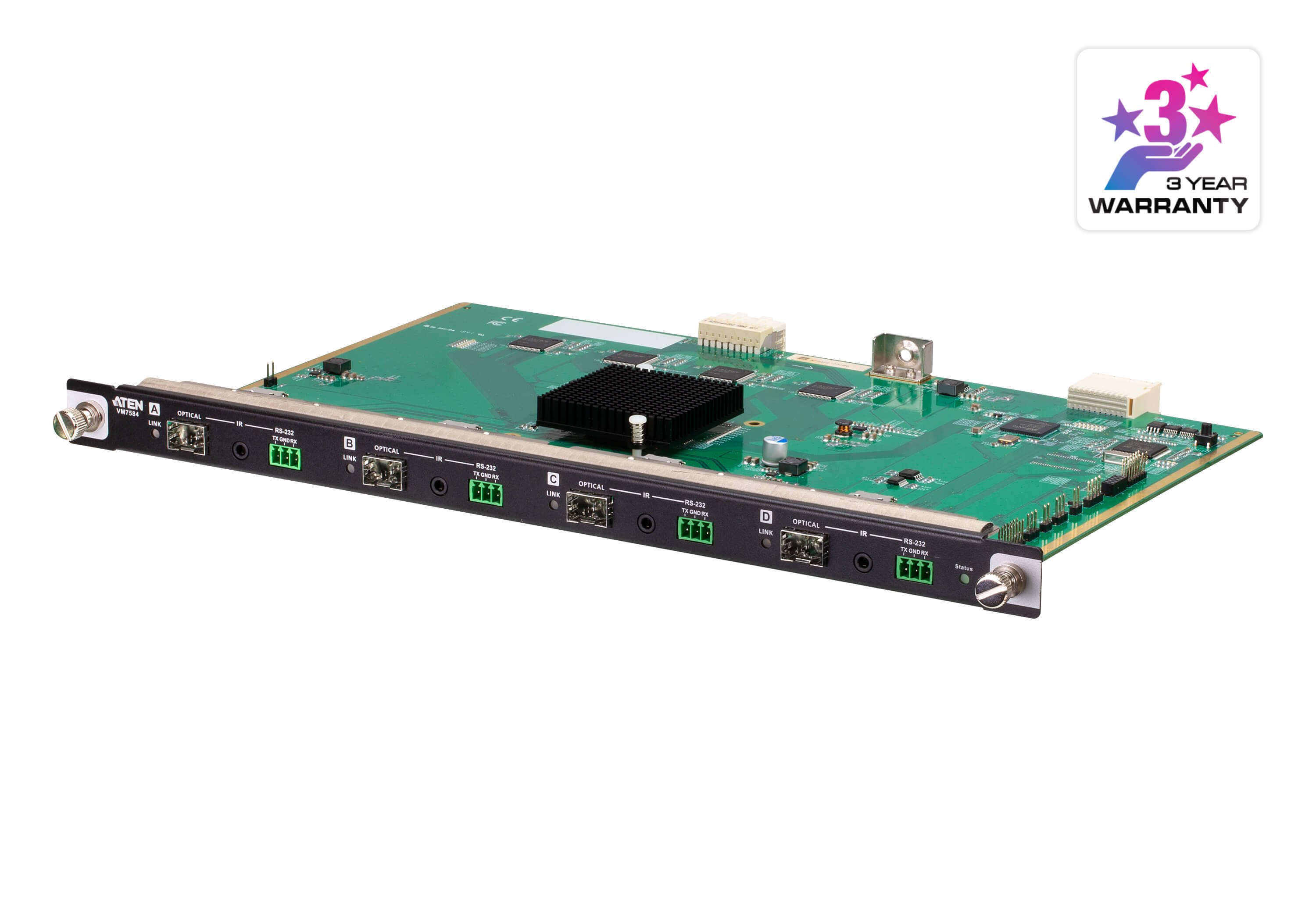

The VM7584 4-Port 10G Optical Input Board offers an easy way to route 4 HDMI sources to HDMI displays through optical extenders, and up to 16/32 input and 16/32 output connections on an ATEN Modular Matrix Switch through various AV interfaces. Designed with fiber optics technology for long-distance transmission, the VM7584 along with its SFP+ modules extends uncompressed 4K signal up to 300 m (using VM7584K1) or 10 km (using VM7584K2) over duplex fiber optic cables. The optical fiber simplifies cabling by guaranteeing an interference-free long-haul transmission of audio, video, IR, and RS-232 control signals over one single set of duplex cables that easily connects to the SFP+ slot. Moreover, the VM7584 supports a high data rate of 10.2 Gbps and meets HDMI Specifications that include 3D, Deep Color, and 4K to ensure superior video quality.
The ATEN VM input/output boards are hot-swappable which gives system integrators great flexibility and efficiency for installation and maintenance. The ATEN VM input/output boards along with ATEN Modular Matrix Switches offer ideal solutions that perfectly meet your demands for scalable video-critical applications.
Package Contents
- 1x VM7584 4-Port 10G Optical Input Board
- 4x SFP+ Modules
- 4x 3-Pole Terminal Blocks
- 1x IR Receiver
- 1x IR Emitter
- 1x User Instructions
(VM7584K1-AT)
| Fiber Optics | |
| Data Rate | 10.3 Gbps |
| Wavelength | VM7584K1: 850 nm VM7584K2: 1310 nm |
| Fiber Type | VM7584K1: Multimode(MM), OM3, LC Duplex Type VM7584K2: Singlemode(SM), LC Duplex Type |
| Video Input | |
| Interfaces | 4 x bi-directional SFP+ (LC) |
| Video | |
| Max. Data Rate | 10.2 Gbps (3.4 Gbps per lane) |
| Max. Pixel Clock | 340 MHz |
| Compliance | HDMI (3D, Deep Color, 4K) HDCP 2.2 compatible Consumer Electronics Control (CEC) |
| Max. Resolution | Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
| Max. Distance | VM7584K1: up to 300m (MM, OM3, Black) VM7584K2: up to 10km (SM, Blue) |
| Control | |
| RS-232 Channel | 4 x Captive Screw Connectors, 3 pole |
| IR Channel | 4 x Mini Stereo Jack Female (Black) |
| LEDs | |
| Status | 1 (Green) |
| Link | 4 (Orange) |
| Power Consumption | 10.54W:49BTU |
| Environmental | |
| Operating Temperature | 0–40°C |
| Storage Temperature | -20–60°C |
| Humidity | 0 - 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.57 kg ( 1.26 lb ) |
| Dimensions (L x W x H) | 35.20 x 23.80 x 2.33 cm (13.86 x 9.37 x 0.92 in.) |
| Carton Lot | 2 pcs |
| Note | 1. The operating distance may vary depending on the fiber type, network bandwidth, connector splicing, signal losses, modal or chromatic dispersion, environmental factors, and kinks. 2. ATEN recommends using single-mode optical fibers that conform to IEC60793-2-50 B1.1 or ITU-T G.652.B specifications; multimode optical fibers that conform to IEC11801 (OM3) specification. 3. The VM7584 is a class 1 laser product and complies with the safety regulations of IEC-60825, FDA 21 CFR 1040.10, and FDA 21 CFR 1040.11. |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
| SKU | VM7584K1-AT |
| Barcode # | 4719264649486 |
| Brand | ATEN |
| Shipping Weight | 0.5700kg |
