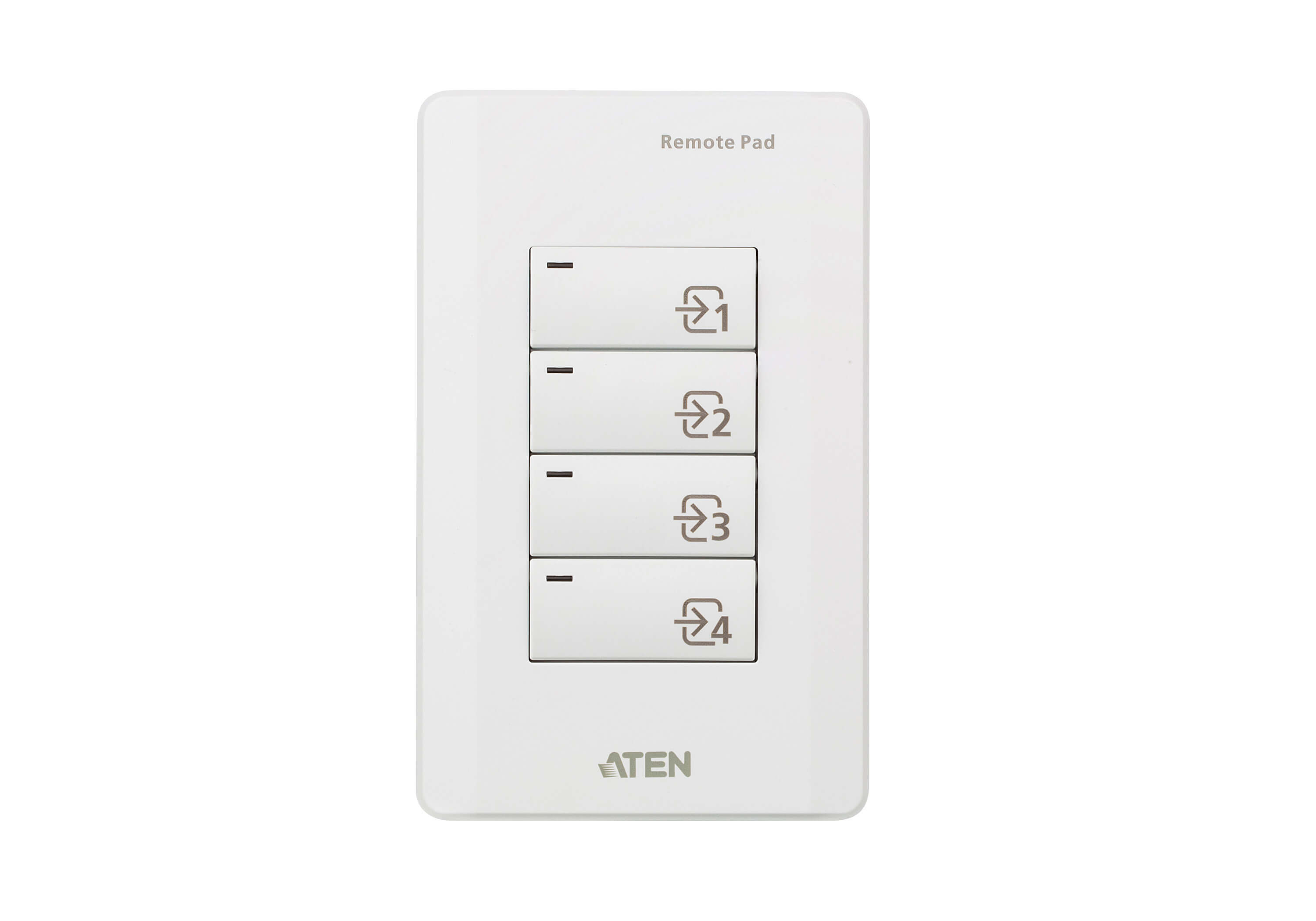

The VPK104 is a 4-button contact closure remote pad designed for use with VP1420/VP1421 Presentation Matrix Switch. By connecting the contact closure ports between the remote pad and a presentation switch, the VPK104 provides a convenient interface to switch the input sources for a video presentation switch from a wall-mounted faceplate. The VPK104 is an easy and affordable solution, perfect to serve as the control interface in a meeting room, class room, or lecture room.

Package Contents

1x VPK104 4-Key Contact Closure Remote Pad
4x 4-pole Terminal Blocks
1x User Instructions

(VPK104-AT)

Interfaces
Keypad Layout	4 buttons
Control

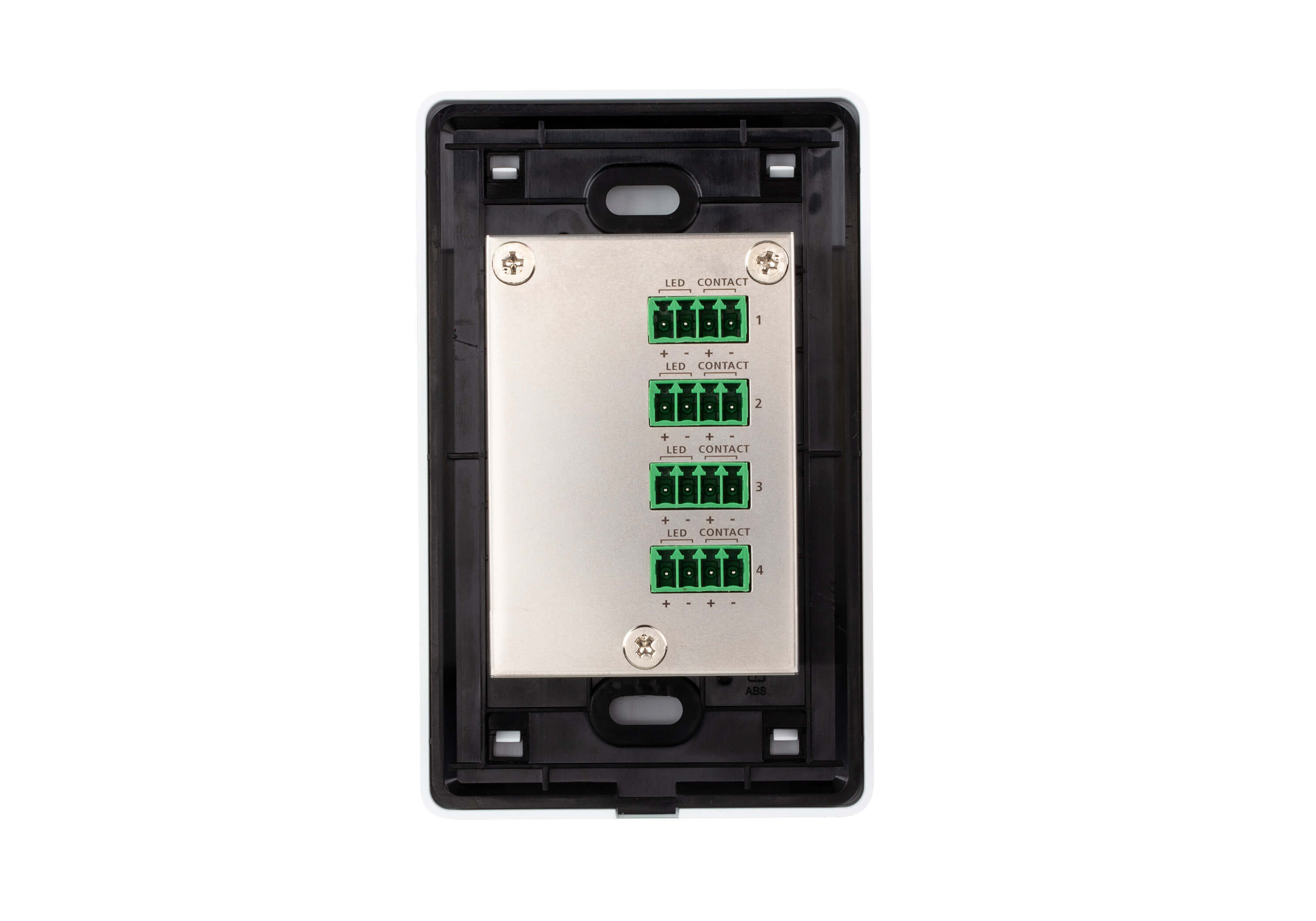

Contact Out	4 xCaptive Screw Connector, 2 pole
LED In	4 xCaptive Screw Connector, 2 pole
Environmental
Operating Temperature	0 – 50°C
Storage Temperature	–20 – 60°C
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Plastic
Weight	0.13 kg ( 0.29 lb )

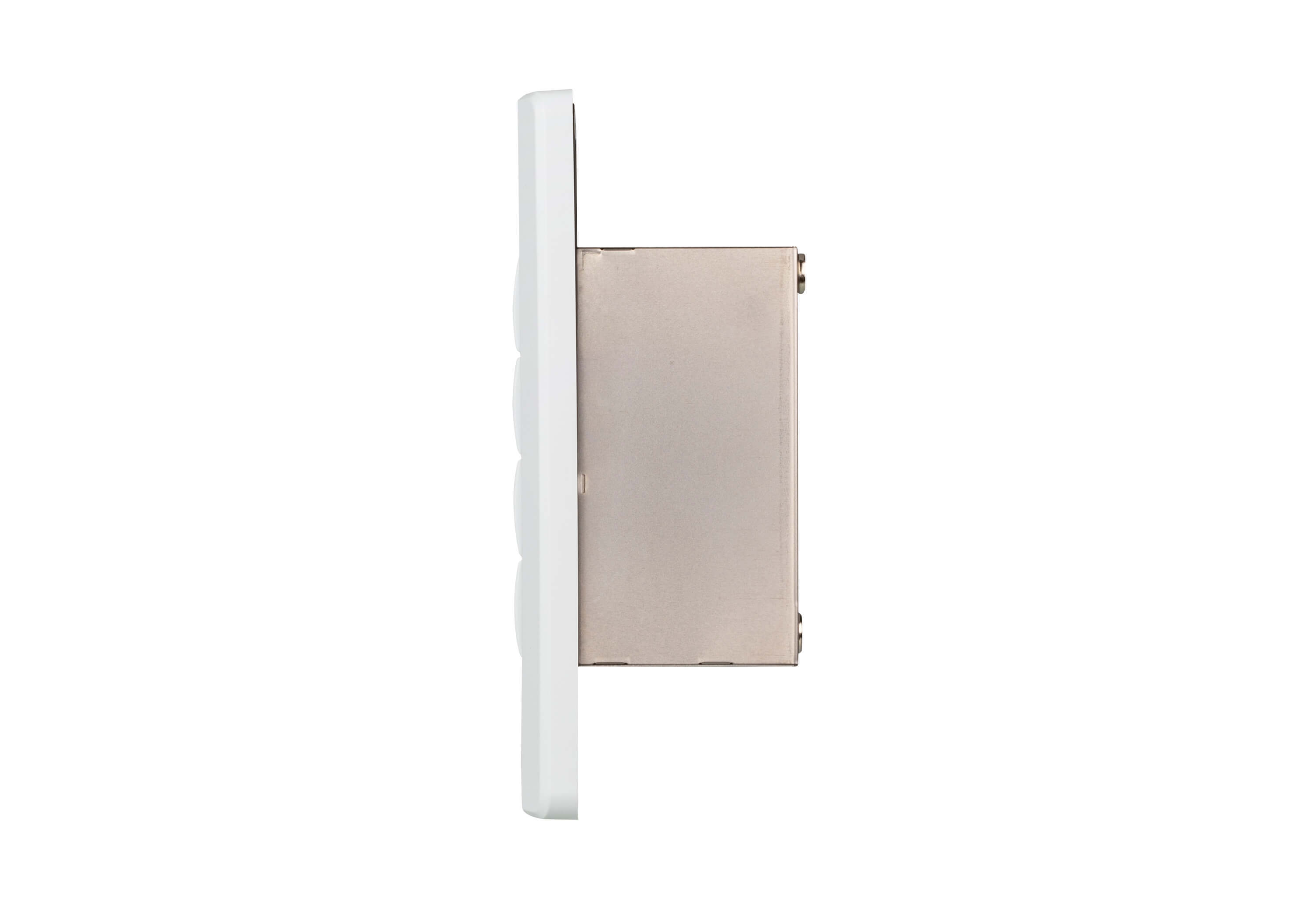

Dimensions (L x W x H)	11.63 x 7.06 x 4.78 cm (4.58 x 2.78 x 1.88 in.)
Faceplate Dimensions (L x W x H)	11.92 x 7.42 x 0.92 cm (4.69 x 2.92 x 0.36 in.)
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
