Eaton SKU 9PX2000IRTAU-L

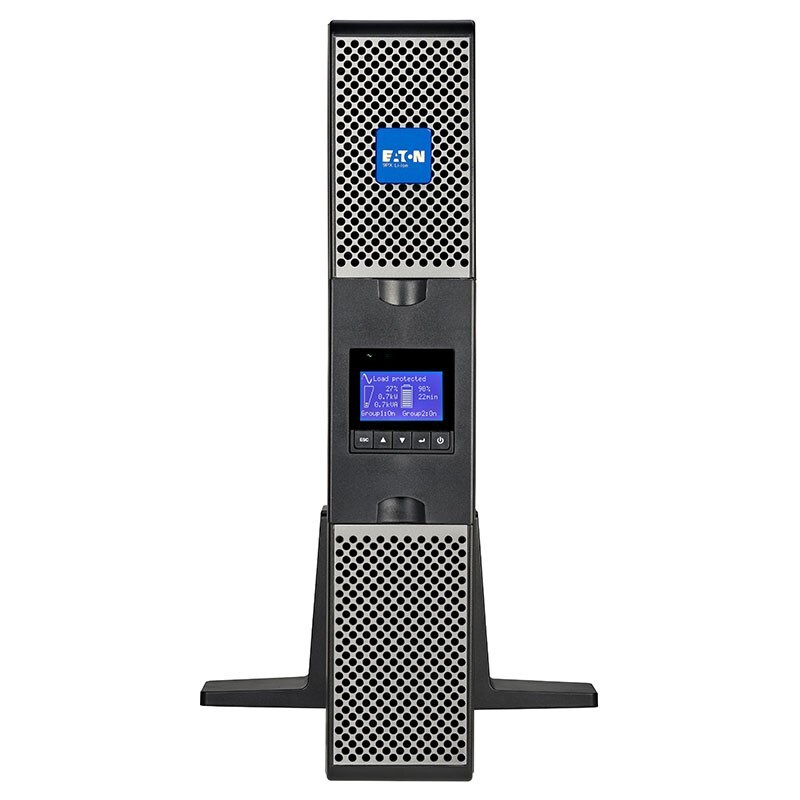

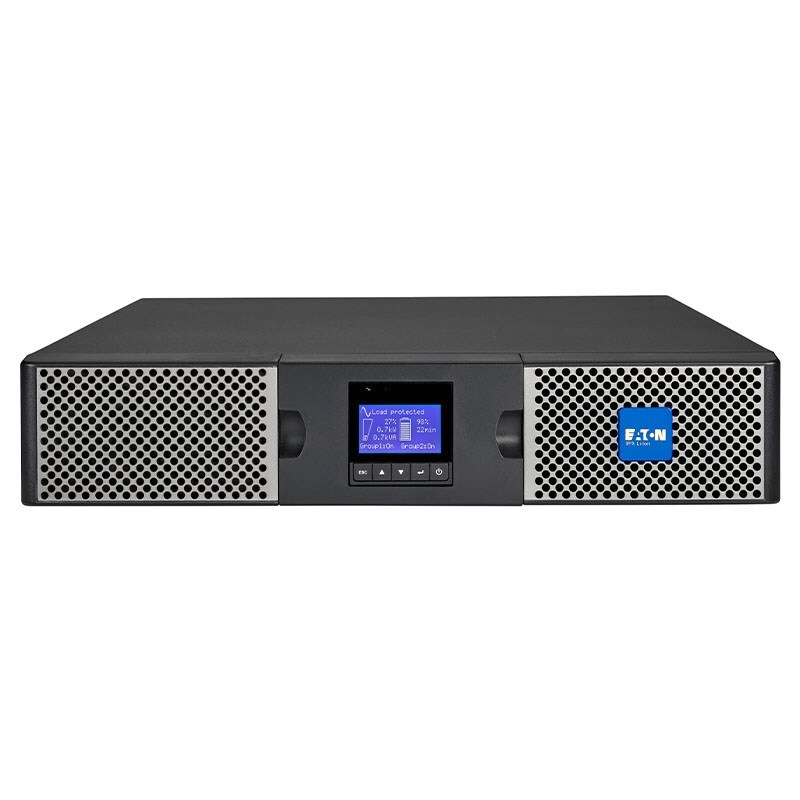

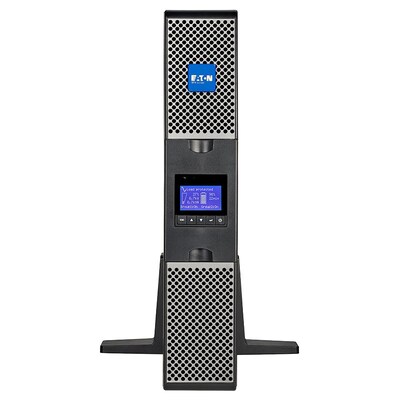

Eaton 9PX2000IRTAU-L 2000VA/1800W Lithium-Ion 2U Online UPS

The Eaton 9PX2000IRTAU-L 9PX is a 2000VA / 1800W online double-conversion UPS with lithium-ion battery technology in a 2U rack/tower format.

The source lists 1 x IEC C14 10A input, 6 x IEC C13 10A outputs and 2 x Australian 10A outlets, adjustable 200/208/220/230/240V output, RS-232 serial, USB and a communication-card slot.

2000VA / 1800WLithium-ion battery2U rack/tower5-year warrantyDeviceDeal authorised Eaton reseller

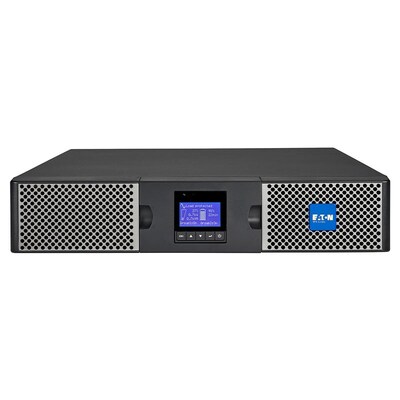

Eaton 9PX2000IRTAU-L 2000VA/1800W Lithium-Ion 2U Online UPS shown in the supplied second product image

Product overview

Lithium-ion battery

The structured source identifies lithium-ion battery chemistry and a hot-swappable battery design.

2000VA / 1800W

The structured load capacity is 2000VA / 1800W.

2U rack/tower deployment

The supplied form factor is 2U rack/tower, with communications and network-management options listed in the specifications.

Source review: Confirm runtime and the required management-card configuration for the intended connected load before purchase.

Frequently asked questions

What power rating is listed for the Eaton 9PX2000IRTAU-L?

The supplied rating is 2000VA / 1800W.

Which battery chemistry is supplied?

The structured specification lists lithium-ion battery chemistry.

Which power connections are listed?

The source lists 1 x IEC C14 10A input and 6 x IEC C13 10A outputs and 2 x Australian 10A outlets.

What warranty is supplied?

The source lists a five-year Eaton manufacturer warranty.

(9PX2000IRTAU-L)

Features

Eaton 9PX2000IRTAU-L 2000VA/1800W Lithium-Ion 2U Online UPS

Power and battery

Online double conversion
2000VA / 1800W
Lithium-ion battery
Hot-swappable battery
Battery life field: 8 years

Connections and management

1 x IEC C14 10A input
6 x IEC C13 10A outputs and 2 x Australian 10A outlets
RS-232 serial
USB HID
Communication-card slot
Network management: Relay-MS card; Network-M2 card

Installation and environment

2U rack/tower
86.5 x 440 x 605mm
Approximate weight: 22.10kg
47dB(A) sound emission
40°C maximum operating temperature
Five-year warranty

Confirm runtime and management-card requirements for the intended connected load.

Technical specifications

Eaton 9PX2000IRTAU-L 2000VA/1800W Lithium-Ion 2U Online UPS

Product details
Brand	Eaton
Model / SKU	9PX2000IRTAU-L
Series	9PX Lithium-ion
Product type	Double-conversion online UPS
Phase	Single phase
Form factor	Rack / tower
Rack height	2U
Load capacity	2000VA / 1800W
Power and connections
Input voltage	230V
Output-voltage values	200V AC; 208V AC; 220V AC; 230V AC; 240V AC
Input connector	1 x IEC C14 10A input
Output receptacles	6 x IEC C13 10A outputs and 2 x Australian 10A outlets
Description input-frequency range	4770Hz
Description output frequency	50/60Hz autosensing
Structured input frequency	70Hz
Structured output frequency	60Hz
Serial port	Yes
USB HID-compliant port	Yes
Network management	Relay-MS card; Network-M2 card
Battery
Battery chemistry	Lithium ion
Hot swappable	Yes
Battery capacity	9000mAh
Battery life field	8 years
Replaceable battery	Yes
Physical and environmental
Height	86.5mm
Width	440mm
Depth	605mm
Approximate weight	22.10kg
Sound emission	47dB(A)
Maximum operating temperature	40°C
ENERGY STAR	Yes
Applications listed
Application / usage	UPS applications as supplied; no separate application list in the structured field

SKU	9PX2000IRTAU-L
Barcode #	743172105431
Brand	EATON
Shipping Weight	29.0000kg
Shipping Width	0.024m
Shipping Height	0.077m
Shipping Length	0.058m

Warranty information

Eaton 9PX2000IRTAU-L 2000VA/1800W Lithium-Ion 2U Online UPS

5-Year Eaton Manufacturer Warranty

DeviceDeal is an authorised Eaton reseller. This product is covered by a five-year Eaton manufacturer warranty in Australia, as listed in the supplied product information.
