Description
Free up space and secure power cords between rack-mount PDUs and attached IT equipment with this exclusive easy-to-use cord retention method
While these cords will fit into any standard IEC receptacle or power inlet; the "locking" feature is enabled only when used with APC AP8000 series Rack PDUs or IT equipment with built-in locking receptacles
These locking connectors reduce the probability of accidentally disconnecting cords and dropping loads
× ![]()

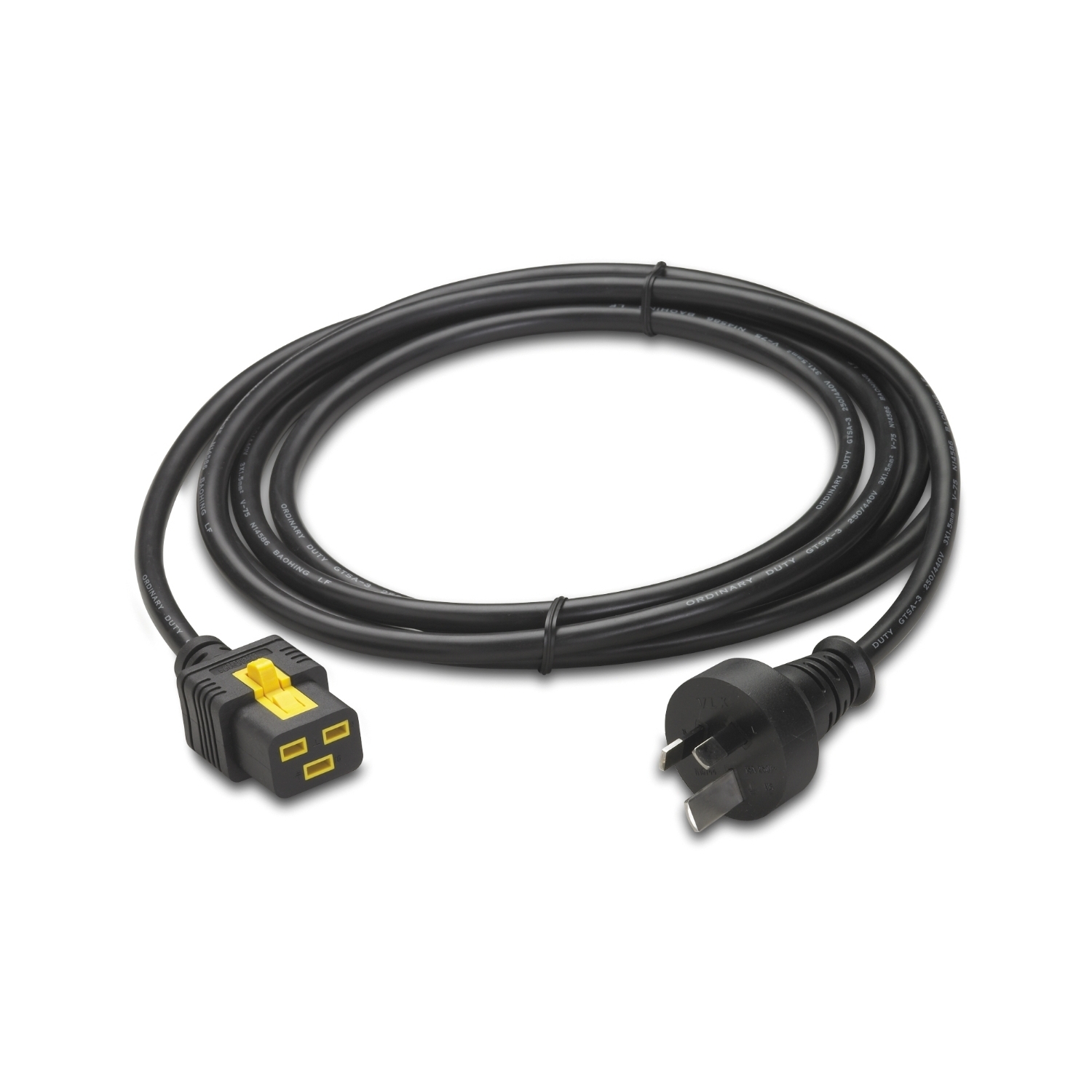

(AP8754)
Specifications - AP8754
Overview
| Presentation | Free up space and secure power cords between rack-mount PDUs and attached IT equipment with this exclusive easy-to-use cord retention method. While these cords will fit into any standard IEC receptacle or power inlet; the "locking" feature is enabled only when used with APC AP8000 series Rack PDUs or IT equipment with built-in locking receptacles. These locking connectors reduce the probability of accidentally disconnecting cords and dropping loads. |
| Lead time | Usually in Stock |
Main
| Product or component type | Power cord |
| Main Output Voltage | 240 V |
| Cable length | 2.9 m |
| Number of cables | 1 |
Physical
| Colour | Black |
| Height | 230 mm |
| Width | 230 mm |
| Depth | 45 mm |
| Net weight | 0.42 kg |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
Input
| Plug standard | Australian/Chinese |
| Max line current | 15 A |
| Input current limits | 15 A |
Output
| Max current draw | 15 A |
| Number of power socket outlets | 1 IEC 60320 C19 |
| Power cable length | 3.05 m |
Environmental
| Ambient air temperature for operation | 0…75 °C |
| Relative humidity | 20…80 % |
| Operating altitude | 0...10000 ft |
| Ambient air temperature for storage | -25…75 °C |
| Storage Relative Humidity | 20…80 % |
| Storage altitude | 0…15240 m |
Packing Units
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 23 cm |
| Package 1 Width | 4.5 cm |
| Package 1 Length | 23 cm |
| Package 1 Weight | 0.42 kg |
| SCC14 | 10731304279782 |
| SKU |
AP8754 |
| Barcode # |
731304279785 |
| Brand |
APC |
| Shipping Weight |
0.4300kg |
| Shipping Width |
0.002m |
| Shipping Height |
0.023m |
| Shipping Length |
0.020m |
