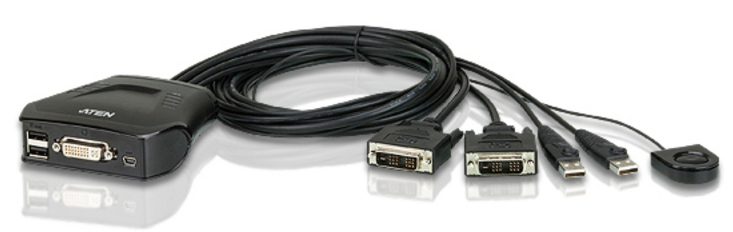

The CS22D 2-Port USB DVI KVM Switch is a control unit that allows access to two computers from a single USB and DVI console (keyboard, video and mouse). With the CS22D, you can access the computers conveniently via a Remote Port Selector.

The CS22D´s compact all-in-one design makes it ideal for multiplatform desktop applications.

Package Contents

1x CS22D 2-Port USB DVI KVM Switch
1x User Instructions

One DVI-D video console controls two DVI-D USB interface computers
Computer Selection via Remote Port Selector
OS Support: Windows 2000, Windows XP, Windows Vista, 7, Mac, Sun and Linux
Superior video quality- up to 1920 x 1200@60Hz
Supports USB hot-plugging
Non-powered
Supports USB 2.0 device

2-Port USB DVI KVM Switch

Computer Connections	2
Port Selection	Remote Port Selector
Connectors
Console Ports	1 x DVI-I Female (Black) 2 x USB Type A Female 1 x USB Mini-B Female
KVM Ports	2 x DVI-D Male (Black) 2 x USB Type A Male
LEDs
Selected	2 (Green)
Cable Length
KVM	2 x 1.2 m
Remote Port Selector	1.8 m
Video Resolution	1920 x 1200 @ 60 Hz
Power Consumption	DC5V:0.93W:9BTU
Environmental
Operating Temperature	0 - 50?C
Storage Temperature	-20 - 60?C
Humidity	0 - 80% RH, Non-condensing
Physical Properties
Housing	Plastic
Weight	0.34 kg ( 0.75 lb )
Dimensions (L x W x H)	9.95 x 9.66 x 3.01 cm (3.92 x 3.8 x 1.19 in.)
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

(CS22D-AT)

Computer Connections	2
Port Selection	Remote Port Selector
Connectors
Console Ports	1 x DVI-D Female (White) 2 x USB Type A Female 1 x USB Mini-B Female
KVM Ports	2 x DVI-D Male (Black) 2 x USB Type A Male
LEDs
Selected	2 (Green)
Cable Length
KVM	2 x 1.2 m
Remote Port Selector	1.8 m
Video Resolution	1920 x 1200 @ 60 Hz
Power Consumption	DC5V:0.93W:9BTU
Environmental
Operating Temperature	0 - 50˚C
Storage Temperature	-20 - 60˚C
Humidity	0 - 80% RH, Non-condensing
Physical Properties
Housing	Plastic
Weight	0.34 kg ( 0.75 lb )
Dimensions (L x W x H)	9.95 x 9.66 x 3.01 cm (3.92 x 3.8 x 1.19 in.)
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

SKU	CS22D-AT
Barcode #	672792004575
Brand	ATEN
Shipping Weight	0.8400kg
Shipping Width	0.060m
Shipping Height	0.220m
Shipping Length	0.150m
Shipping Cubic	0.001980000m3

Manufacturer Warranty: 12 Months Limited Warranty
