Up to 60m extension
USB signals can be extended across Cat5/5e/6 cable for distances up to 60 metres.
ATEN UCE260 USB 2.0 over Cat5 Extender - up to 60m
Model # UCE260-AT-U
-
SKU: UCE260-AT-U
Don't pay: $139.00
$122.00
SAVE $17.00 (12%)
Stock Availability
🟢Live
In Stock · Call to confirm
Pickup from Vermont, VIC
Allow 1–2 business days for stock transfer
Allow 1–2 business days for stock transfer
- Pick Up Available
- Australian Warranty
- Checkout Securely
ATEN SKU UCE260-AT-U
ATEN UCE260-AT-U USB 2.0 Cat5 Extender up to 60m

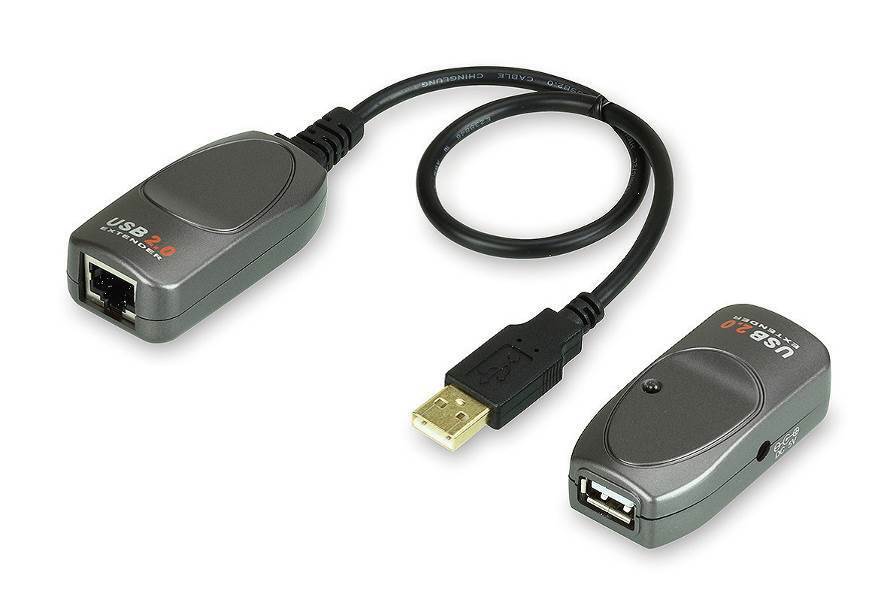

The ATEN UCE260-AT-U extends one USB 2.0 device or hub up to 60 metres from a computer over Cat5, Cat5e or Cat6 cabling.
High-, full- and low-speed USB operation is supported without software drivers or configuration, helping overcome standard USB cable-distance limits.
USB 2.0Up to 60mCat5/5e/61-year warrantyDeviceDeal authorised ATEN reseller
Product overview
USB 2.0 speed modes
The source lists 480Mbps high speed, 12Mbps full speed and 1.5Mbps low speed.
Driver-free setup
No configuration or software driver is required according to the supplied description.
Source review: The supplied connector table presents local and remote-unit values side by side without separate column labels. The specifications below preserve that local/remote arrangement.
Frequently asked questions
How far can the UCE260 extend USB?
The supplied source lists up to 60 metres.
Which cable type is used?
The description lists Cat5, Cat5e or Cat6 cabling.
Which USB speeds are supported?
High speed at 480Mbps, full speed at 12Mbps and low speed at 1.5Mbps are listed.
Does it require a software driver?
No. The source states that no configuration or software driver is required.
What warranty is supplied?
The source lists a one-year ATEN manufacturer warranty.
(UCE260-AT-U)
Features
ATEN UCE260-AT-U USB 2.0 Cat5 Extender up to 60m
USB extension
- Up to 60m
- Cat5/5e/6 link
- USB 2.0 high/full/low speed
- One remote USB device
Connections
- Local: USB Type-A male and RJ45 female
- Remote: USB Type-A female and RJ45 female
- Remote DC power jack
Deployment
- Driver free
- No configuration required
- Local bus power
- Remote 5V / 13W self power
A suitable Cat5/5e/6 cable is required between the local and remote units.
Technical specifications
ATEN UCE260-AT-U USB 2.0 Cat5 Extender up to 60m
| Product details | |
|---|---|
| Brand | ATEN |
| Model / SKU | UCE260-AT-U |
| Product type | USB 2.0 over Cat5 extender |
| Maximum distance | Up to 60m |
| Local unit | |
| USB | 1 x USB Type-A male |
| Link | 1 x RJ45 female |
| Power | Bus powered |
| Weight | 0.04kg |
| Remote unit | |
| USB | 1 x USB Type-A female |
| Link | 1 x RJ45 female |
| Power | 1 x DC power jack; self-powered 5V / 13W |
| USB devices supported | 1 |
| Weight | 0.02kg |
| USB and physical | |
| USB specification | USB 2.0 high/full/low speed |
| Dimensions per unit (L x W x H) | 6.30 x 3.10 x 2.19cm |
| Housing | Plastic |
| Operating temperature | 040°C |
| Storage temperature | -2060°C |
| Humidity | 080% RH, non-condensing |
| SKU | UCE260-AT-U |
| Barcode # | 672792005985 |
| Brand | Aten |
| Shipping Weight | 0.3000kg |
| Shipping Width | 0.060m |
| Shipping Height | 0.240m |
| Shipping Length | 0.160m |
| Shipping Cubic | 0.002304000m3 |
Warranty information
ATEN UCE260-AT-U USB 2.0 Cat5 Extender up to 60m
1-Year ATEN Manufacturer Warranty
DeviceDeal is an authorised ATEN reseller. This product is covered by a one-year ATEN manufacturer warranty in Australia, as listed in the supplied product information.
