RFID Reader > Support RS485, Wiegand34 protocol(Wiegand 26 optional) > 13.56MHz(Mifare) > 125KHz(EM-ID) > Red and Green LEDs > Watch dog function ensure device free from halting > Beep Buzzer and LED indicator > Surface mounted installation

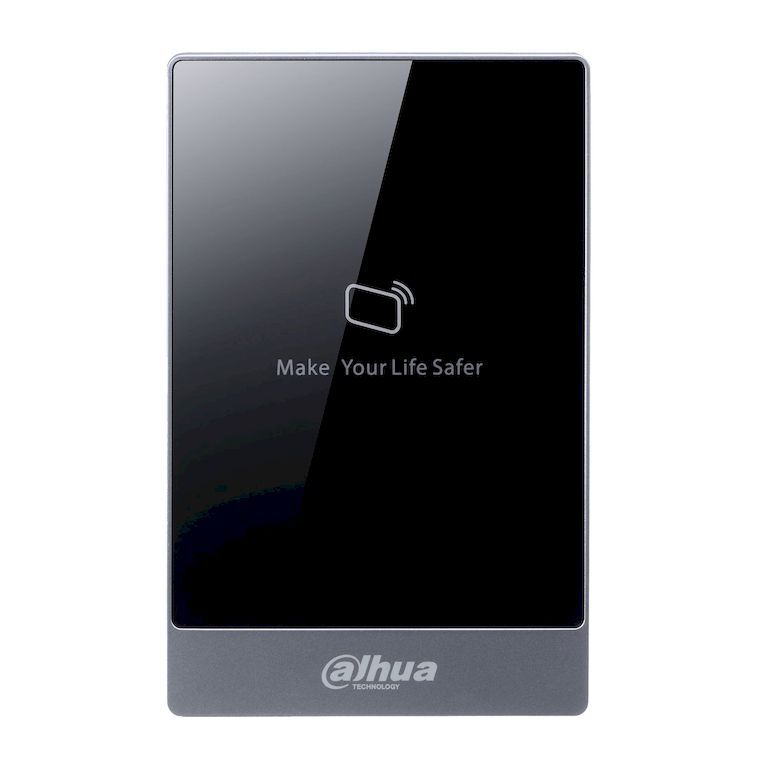

(ASR1100A)

Technical Speci?cation Mode ASR1100A ASR1100A-D System Main Processor 8 Bit Read Read Format 13.56MHz 125KHz Read Range 1cm8cm (max.) Reading time <0.1s Function Tamper Alarm Yes Interface To Controller RS485, Wiegand34(Wiegand 26 optional) General LED Display Blue backlight Beep Tone Buzzer Power Supply 9V15V DC/100mA Operating Temperature -30°C to +60°C Working Humidity ?95% Dimension(W×D×H) 87mm×13mm×136mm Weight 0.25kg Working Environment Indoor Certificates CE Yes FCC Yes
