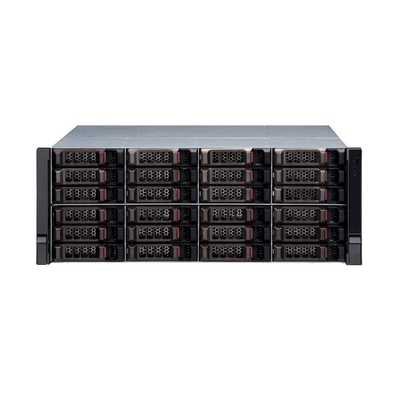

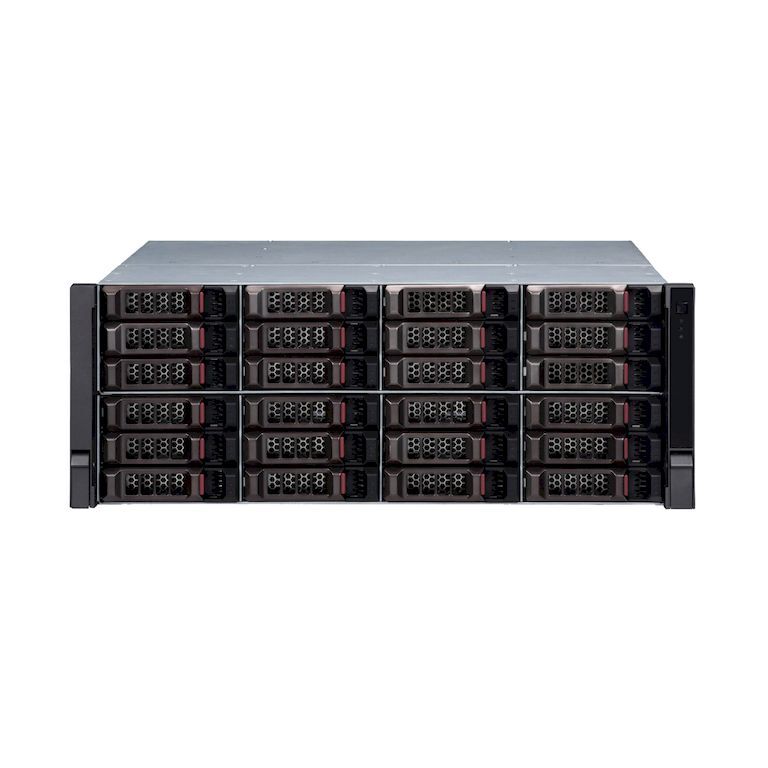

24 HDDs SAS Storage Cabinet >Controller architecture, Modular design, reliable and Easy-maintainable >Support HDDs hot-swap, non-stop running when replace the HDDs >Redundant fans and redundant power supply, keep 7x24-hour uninterrupted running >Support expansion device cascade >Chassis design conform to SBB, motherboard, chassis, power supply and HDD all support hot-swappable >Support 8T HDD >24 SATA hot-swappable slot >All modular hardware design >Single Controller >2 SAS interfaces >1 console port >19U standard rack-mounted

(ESS3124S-JR)

Model DH-ESS3124S-JR System Power supply 500W*2 1+1 redundant, support online replacement Fan Redundant two-ball bearing fans, MTBF?100,000 hours Motherboard Serve class(24/7 operation) Chassis All self-design, Hot-dip galvanized steel sheet(1.2mm thickened) High-precise aluminum alloy slide Self-patent drawer-type HDD rack, conform to SBB2.0 User Interface Configuration and application upgrades through WEB GUI HDD management Hard disk 24 HDDs, support SATA, each HDD up to 8TB. HDD install Independent HDD holder, support hot-swap HDD Hot Standby Support global HDD Hot Standby, exclusive HDD Hot Standby Specification Power supply AC 100V~240V ±10% 60Hz/50Hz Power Consumption ?500W(include HDD) Dimension(W×D×H) 446mm×175mm×495mm Mounting 19 feet standard rack-mounted Weight(exclude HDD) 25.54kg Environment Working temperature 0??40?
