Eaton SKU 9PX1500IRT2UANZ

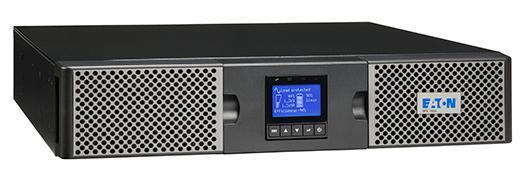

Eaton 9PX1500IRT2UANZ 1500VA/1500W Online 2U Rack/Tower UPS

The Eaton 9PX1500IRT2UANZ 9PX is a single-phase online double-conversion UPS rated at 1500VA / 1500W in a 2U rack/tower format.

The supplied record lists multilingual graphical lcd display, USB HID and serial connectivity.

1500VA / 1500WOnline double conversion2U rack/towerEaton Manufacturer Warranty Source ReviewDeviceDeal authorised Eaton reseller

Product overview

1500VA / 1500W

The structured load capacity is 1500VA / 1500W.

Online double conversion

The supplied source classifies this model as a double-conversion online UPS.

2U rack/tower installation

The structured form factor is rack/tower with a listed rack height of 2U.

Source review: The supplied warranty column states two years, while the structured specification lists a three-year limited warranty. Both source values are preserved and require confirmation.

Frequently asked questions

What capacity is listed for the Eaton 9PX1500IRT2UANZ?

The structured specification lists 1500VA / 1500W.

Which output connections are listed?

The structured field lists 8 x IEC 60320 C13.

Which monitoring interfaces are listed?

The source lists multilingual graphical lcd display, USB HID and a serial port.

What warranty is supplied?

The supplied warranty column states two years, while the structured specification states three years; confirmation is required.

(9PX1500IRT2UANZ)

Features

Eaton 9PX1500IRT2UANZ 1500VA/1500W Online 2U Rack/Tower UPS

Power performance

Online double-conversion topology
Single phase
1500VA / 1500W
Sine wave

Connections and monitoring

Structured outputs: 8 x IEC 60320 C13
Multilingual graphical LCD display
USB HID
Serial port

Installation and support

2U rack/tower
Dimensions (H x W x D): 86.5mm x 450mm x 440mm
Approximate weight: 18.90kg

Confirm the source-review notes, connected load and installation requirements before purchase.

Technical specifications

Eaton 9PX1500IRT2UANZ 1500VA/1500W Online 2U Rack/Tower UPS

Product details
Brand	Eaton
Model / SKU	9PX1500IRT2UANZ
Series	9PX
Product type	Double-conversion online UPS
Phase	Single phase
Status display	Multilingual graphical LCD display
Power
Load capacity	1500VA / 1500W
Input-voltage values listed	120V AC; 230V AC
Output-voltage values listed	240V AC
Input-voltage range	100276V AC; 176276V AC
Input frequency	70Hz
Output frequency	60Hz
Waveform	Sine wave
Connections
Structured receptacle detail	8 x IEC 60320 C13
Serial port	Yes
USB HID-compliant port	Yes
Battery
Battery chemistry	Lead acid
Battery characteristics	Sealed
Hot swappable	Yes
Environment and additional fields
Sound emission	35dB
ENERGY STAR	Yes
Physical properties
Form factor	Rack / tower
Rack height	2U
Height	86.5mm
Width	450mm
Depth	440mm
Approximate weight	18.90kg
Product colours listed	Black; silver
Applications listed
Application / usage	University; industrial automation system; medical; school; IT; healthcare; edge computing

SKU	9PX1500IRT2UANZ
Barcode #	743172081414
Brand	EATON
Shipping Weight	24.0000kg
Shipping Width	0.023m
Shipping Height	0.058m
Shipping Length	0.055m

Warranty information

Eaton 9PX1500IRT2UANZ 1500VA/1500W Online 2U Rack/Tower UPS

Eaton Manufacturer Warranty Source Review

DeviceDeal is an authorised Eaton reseller. This product is supplied under the applicable Eaton manufacturer warranty in Australia. The supplied source contains conflicting warranty durations for SKU 9PX1500IRT2UANZ: the warranty column states 2 years while the structured specification states 3 years. Please contact DeviceDeal to confirm the applicable period and conditions before publication or purchase.
