Eaton SKU 9SXEBM240T

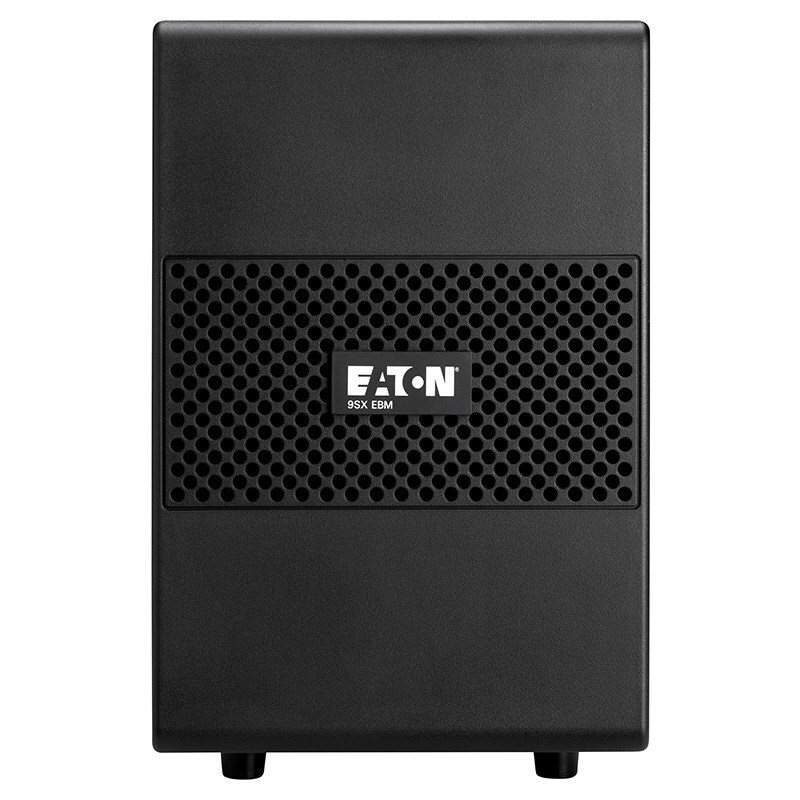

Eaton 9SXEBM240T 240V Tower Extended Battery Module

The Eaton 9SXEBM240T is a 240V DC tower extended battery module for the listed Eaton 9SX UPS systems.

The supplied record lists Sealed lead-acid, 12V / 7Ah batteries, 40 batteries, approximate 104.90kg weight and compatibility with Eaton 9SX 5000I; Eaton 9SX 6000I; Eaton 9SX 6000INB; 5000VA and 6000VA 9SX systems.

240V DCTower battery moduleSealed lead-acid, 12V / 7Ah batteries2-year warrantyDeviceDeal authorised Eaton reseller

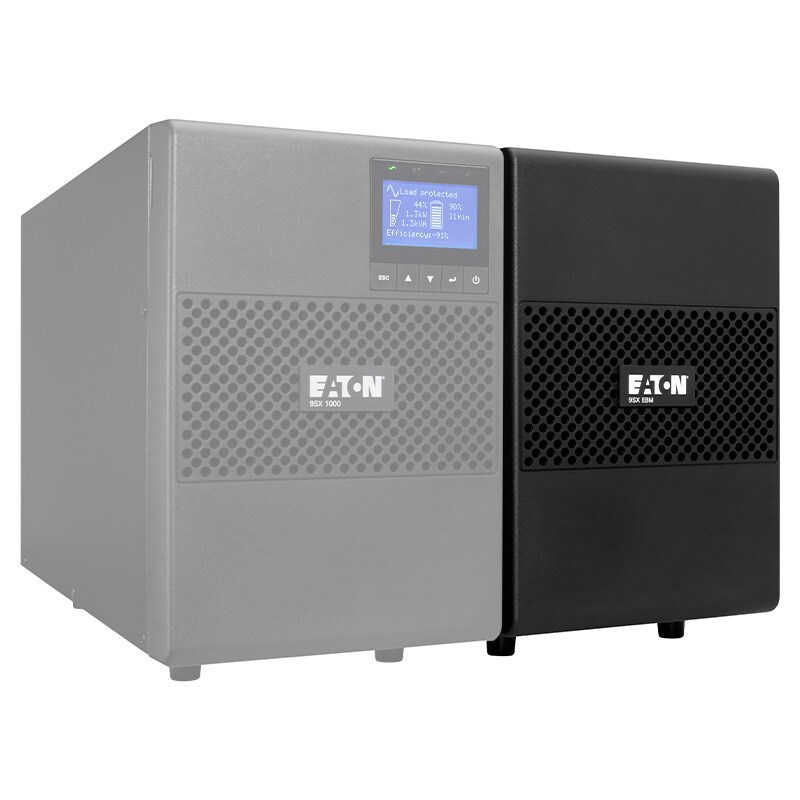

Eaton 9SXEBM240T 240V Tower Extended Battery Module shown in the supplied second product image

Product overview

240V DC module

The supplied product record identifies 240V DC for this extended battery module.

Model-specific 9SX compatibility

The listed compatible systems are Eaton 9SX 5000I; Eaton 9SX 6000I; Eaton 9SX 6000INB; 5000VA and 6000VA 9SX systems.

Tower installation

The module uses a tower form factor and measures 575mm x 244mm x 542mm.

Source review: The description lists the specific 9SX5000I, 9SX6000I and 9SX6000INB models, while the structured field lists 5000VA and 6000VA 9SX systems. Both compatibility forms are preserved.

Frequently asked questions

What battery specification is listed for the Eaton 9SXEBM240T?

240V DC; Sealed lead-acid, 12V / 7Ah batteries; quantity 40.

Which UPS systems are listed as compatible?

The supplied source lists Eaton 9SX 5000I; Eaton 9SX 6000I; Eaton 9SX 6000INB; 5000VA and 6000VA 9SX systems.

What form factor is listed?

The supplied record identifies a free-standing tower extended battery module.

What warranty is supplied?

The source lists a two-year Eaton manufacturer warranty.

(9SXEBM240T)

Features

Eaton 9SXEBM240T 240V Tower Extended Battery Module

Battery

240V DC
Sealed lead-acid, 12V / 7Ah batteries
Battery quantity: 40
Extended battery module

Compatibility

Eaton 9SX 5000I
Eaton 9SX 6000I
Eaton 9SX 6000INB
5000VA and 6000VA 9SX systems

Physical and support

Tower form factor
575mm x 244mm x 542mm
Approximate weight: 104.90kg
Two-year manufacturer warranty

Confirm the exact UPS model, battery connector and installation space before purchase.

Technical specifications

Eaton 9SXEBM240T 240V Tower Extended Battery Module

Product details
Brand	Eaton
Model / SKU	9SXEBM240T
Series	9SX
Product type	Battery unit / extended battery module
Form factor	Tower
Battery
Output / battery voltage	240V DC
Battery specification stated	Sealed lead-acid, 12V / 7Ah batteries
Battery quantity	40
Compatibility
Compatible Eaton 9SX systems	Eaton 9SX 5000I; Eaton 9SX 6000I; Eaton 9SX 6000INB; 5000VA and 6000VA 9SX systems
Physical properties
Height	575mm
Width	244mm
Depth	542mm
Approximate weight	104.90kg

SKU	9SXEBM240T
Barcode #	743172101938
Brand	EATON
Shipping Weight	104.9000kg
Shipping Width	0.037m
Shipping Height	0.071m
Shipping Length	0.067m

Warranty information

Eaton 9SXEBM240T 240V Tower Extended Battery Module

2-Year Eaton Manufacturer Warranty

DeviceDeal is an authorised Eaton reseller. This product is covered by a two-year Eaton manufacturer warranty in Australia, as listed in the supplied product information.
