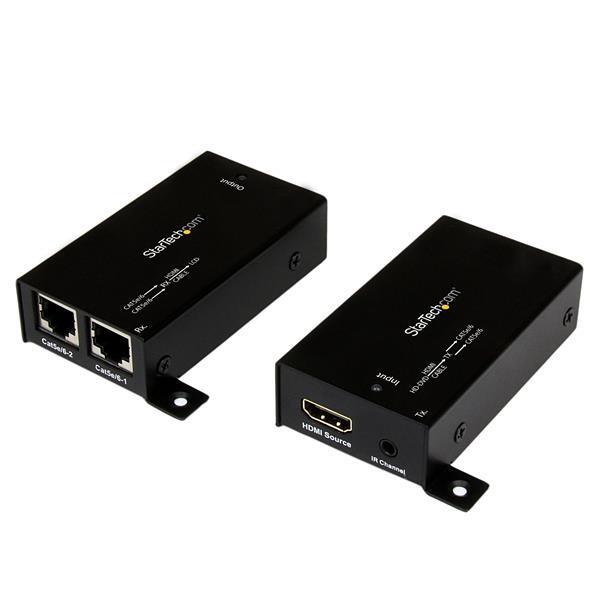

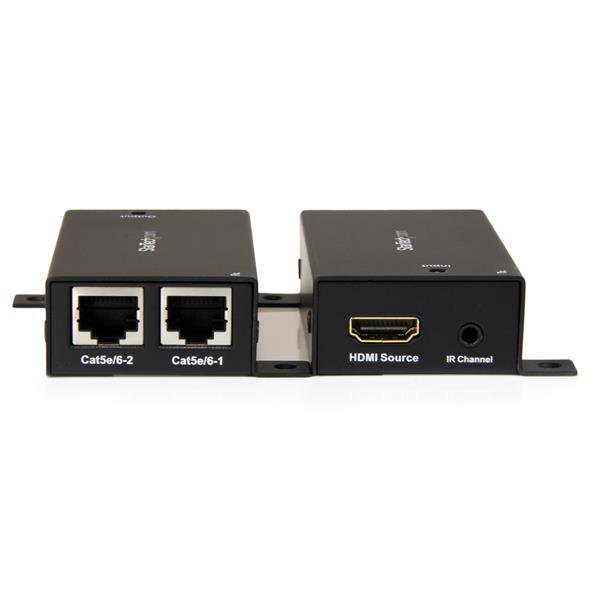

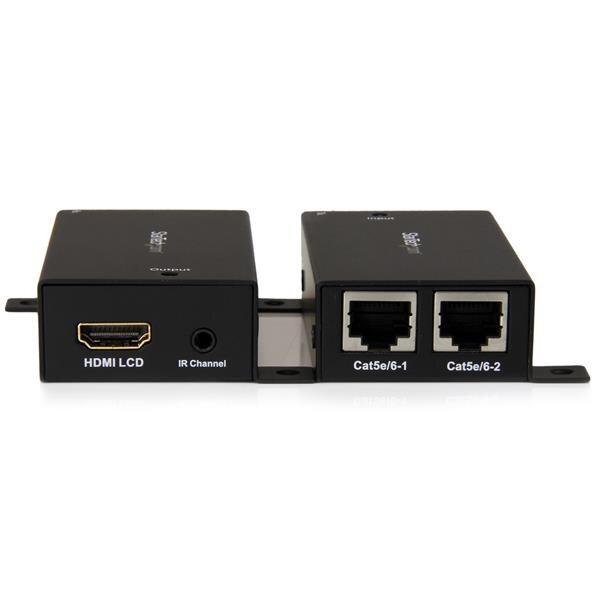

StarTech HDMI over CAT5 with IR Extension | 7.1 Audio Support | 30 m (100 ft.) ST121SHD30
Model # ST121SHD30
-
SKU: ST121SHD30
- Pick Up Available
- Australian Warranty
- Checkout Securely
HDMI over Dual CAT5 Extender - HDMI Bus-Powered - 1080p
This HDMI¨ over dual CAT5 extender transmits your HDMI A/V signal with IR to a remote location up to 30 m (100 ft.) away over dual CAT5/CAT6 cables.
Simplify Your Setup with No Power Adapters Required
Unlike most 1080p HDMI extenders that can require up to two power adapters, this HDMI over CAT5 extender is powered using the HDMI bus and does not require external power. Power-free installation makes your digital-signage solution simple. Mounting hardware is built into both the transmitter and receiver to ensure a discreet, professional installation.
Control Your Video Source from the Remote Display
With IR extension built-in this HDMI transmitter and receiver kit offers remote infrared extension, enabling you to control your video source from the remote display, ensuring you can always see what youÕre doing, even from a distance.
Crystal-clear 1080p Video
This HDMI extender maintains your 1080p picture quality, ensuring your remote picture is crystal clear. The extender also supports 7.1 audio for optimum sound quality. Support for HD video and 7.1 channel audio lets you create brilliant digital signage solutions that capture the attention of your audience.
The ST121SHD30 is backed by a 2-year StarTech.com warranty and free lifetime technical support.
Applications
- Distribute HDMI in large buildings such as commercial shopping centers, stadiums, schools, and hospitals
- Extend your HDMI audio/video signals to locations where power outlets are limited such as industrial sites
- Integrators and system designers can use existing CAT5 or CAT6 infrastructure to create digital-signage solutions
Product Numbers
Dell Harmony
A8531085
Tech Data
11219481
ASI
142896
D&H
ST121SHD30
Ingram Micro USA
TG0740
SYNNEX US
STA-ST121SHD30
UPC Code
065030851718
(ST121SHD30)
| Warranty Information | ||
|---|---|---|
| Warranty | 2 Years | |
| Hardware | ||
| Cabling | Cat 5 UTP or better | |
| Daisy-Chain | No | |
| Ports | 1 | |
| Performance | ||
| General Specifications | IR dongle frequency - 35 to 56 khz | |
| Max Distance | 30 m / 100 ft | |
| Maximum Digital Resolutions | 1080p / 1920x1080 | |
| Wide Screen Supported | Yes | |
| Connector(s) | ||
| Local Unit Connectors | 1 - HDMI (19 pin) Female | |
| 2 - RJ-45 Female | ||
| Remote Unit Connectors | 1 - HDMI (19 pin) Female | |
| 2 - RJ-45 Female | ||
| Special Notes / Requirements | ||
| Note | The extender does not work through Ethernet equipment, such as switches or routers | |
| This extender requires two CAT5 cables for the entire distance of your cable run. | ||
| ST121SHD30 draws power from the HDMI source device, as a result a limited number of devices may not be capable of powering the unit, such as the Mac Mini or Samsung Chromebooks. | ||
| Indicators | ||
| LED Indicators | 1 - Input | |
| 1 - Output | ||
| Environmental | ||
| Humidity | 0% - 80 % | |
| Operating Temperature | 0¡C to 40¡C (32¡F to 104¡F) | |
| Storage Temperature | -10¡C to 60¡C (14¡F to 115¡F) | |
| Physical Characteristics | ||
| Color | Black | |
| Enclosure Type | Aluminum | |
| Product Height | 0.9 in [2.2 cm] | |
| Product Length | 3.2 in [82 mm] | |
| Product Width | 1.8 in [45 mm] | |
| Weight of Product | 8.5 oz [241 g] | |
| Packaging Information | ||
| Package Height | 2.2 in [55 mm] | |
| Package Length | 8.3 in [21 cm] | |
| Package Width | 5.9 in [15 cm] | |
| Shipping (Package) Weight | 14.4 oz [408 g] | |
| What's in the Box | ||
| Included in Package | 1 - HDMI over CAT5e/6 UTP Transmitter | |
| 1 - HDMI over CAT5e/6 UTP Receiver | ||
| 4 - Foot Pad Set | ||
| 1 - IR Extender Kit | ||
| 1 - Mounting brackets | ||
| 1 - User Manual | ||
| SKU | ST121SHD30 |
| Barcode # | 65030851718 |
| Brand | Startech |
| Shipping Weight | 0.4000kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.200m |
| Shipping Cubic | 0.001000000m3 |
