4K 60Hz HDMI output
Connect one HDMI 2.0 display at up to 3840 x 2160 at 60Hz, with common lower resolutions also supported.
StarTech USB Type C to HDMI Adapter | Thunderbolt 3 Compatible | 4K 60 Hz CDP2HDUCP
Model # CDP2HDUCP
-
SKU: CDP2HDUCP
- Pick Up Available
- Australian Warranty
- Checkout Securely
StarTech.com · CDP2HDUCP
StarTech USB-C to HDMI 2.0 Adapter with 60W Power Delivery
Connect one HDMI 2.0 display at up to 4K 60Hz while passing up to 60W of USB-C charging power to a compatible host.
4K 60HzHDMI 2.060W PD pass-through3-year warranty
Product overview

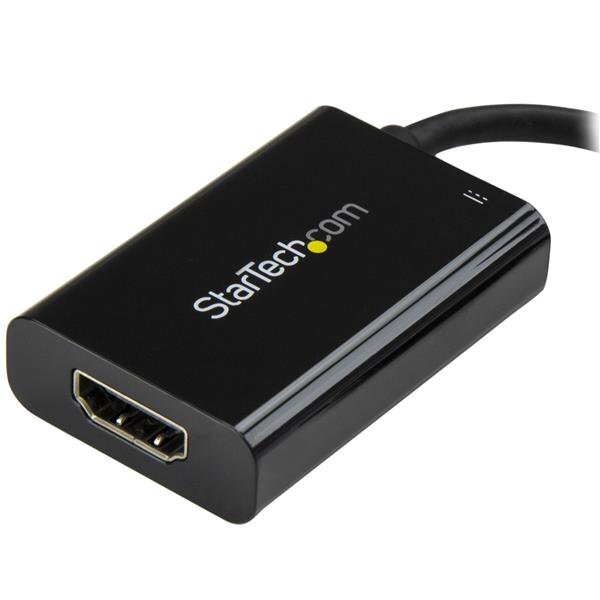

CDP2HDUCP combines a single HDMI output and USB-C Power Delivery input in a compact black adapter. It adds no USB data ports and requires DisplayPort Alt Mode for video.
Features that matter
60W Power Delivery pass-through
Connect a compatible USB-C charger to power the host while video is displayed through the same host USB-C port.
Compact one-display design
A 100mm attached USB-C cable and lightweight housing suit travel, hot desks and presentation spaces.
Driverless compatibility
Works with compatible USB-C DP Alt Mode or Thunderbolt 3 hosts without an additional display driver.
What to know before ordering
Host requirements
Video requires DisplayPort Alt Mode. Charging also requires the host to accept USB-C Power Delivery.
Charger not included
A suitable USB-C charger and charging cable are required for Power Delivery pass-through. The host determines the accepted charging level.
No USB data expansion
The additional USB-C port is for Power Delivery input only; it is not a downstream USB data port.
Warranty confidence in Australia
Australian version · Official StarTech.com warranty
This item is the Australian version supplied by DeviceDeal and is covered by the official 3 years StarTech.com manufacturer warranty in Australia. Retain your DeviceDeal tax invoice as proof of purchase. Coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
Frequently asked questions
What is StarTech CDP2HDUCP?
CDP2HDUCP is a USB-C to HDMI 2.0 adapter with a USB-C input for up to 60W Power Delivery pass-through.
What is the maximum video resolution?
The verified maximum is 3840 x 2160 at 60Hz. Common lower resolutions are also supported.
What must the host USB-C port support?
The host must support DisplayPort Alt Mode for video and USB Power Delivery for pass-through charging.
Does the extra USB-C port carry data?
No. The additional USB-C port is for Power Delivery input only.
Does it carry audio?
Yes. The official specification lists HDMI 7.1-channel audio.
Does it require a driver?
No additional display driver is required for a compatible host.
What is included in the package?
The package contains one USB-C to HDMI adapter. A USB-C charger is not included.
What warranty applies in Australia?
CDP2HDUCP is the Australian version supplied by DeviceDeal and is covered by the official 3 years StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms, eligibility and product assessment.
(CDP2HDUCP)
Features and highlights
CDP2HDUCP key capabilities
Product-specific highlights verified for this exact StarTech.com model.
4K 60Hz HDMI output
Connect one HDMI 2.0 display at up to 3840 x 2160 at 60Hz, with common lower resolutions also supported.
60W Power Delivery pass-through
Connect a compatible USB-C charger to power the host while video is displayed through the same host USB-C port.
Compact one-display design
A 100mm attached USB-C cable and lightweight housing suit travel, hot desks and presentation spaces.
Driverless compatibility
Works with compatible USB-C DP Alt Mode or Thunderbolt 3 hosts without an additional display driver.
Key highlights
- 100mm attached USB-C cable
- HDMI 2.0 single-display output
- Up to 4K 60Hz
- Up to 60W PD pass-through
- Official 3 years StarTech.com manufacturer warranty in Australia
Technical specifications
StarTech CDP2HDUCP
Verified specifications and package details for the exact model.
General and Connectivity
Product type
USB-C to HDMI 2.0 adapter with charging

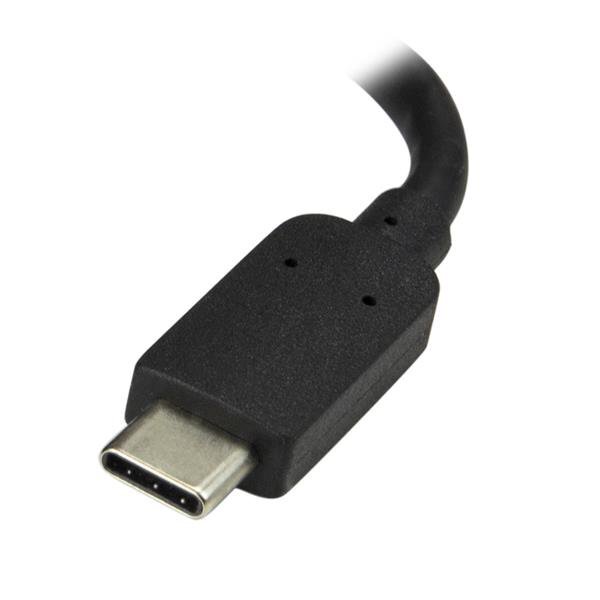

Host connector
USB-C DP Alt Mode male
Outputs
HDMI 2.0 female; USB-C PD input only
Displays supported
1
Attached cable length
100mm
Colour / material
Black plastic
Warranty
3 Years
UPC
065030866231
Video and Audio
Maximum resolution
3840 x 2160 at 60Hz
Video revision
HDMI 2.0
Content protection
HDCP 2.2/1.4
HDR support
No
Audio
HDMI 7.1-channel audio
Maximum HDMI cable distance
7m
Power and Requirements
Power Delivery
Up to 60W pass-through
USB-C downstream port
Power input only; no data
Host video requirement
USB-C DisplayPort Alt Mode
Host charging requirement
USB Power Delivery support
Charger included
No
Hardware and Compatibility
Chipsets
Parade PS176; VIA/VLI VL100
Thunderbolt compatibility
Thunderbolt 3
Driver requirement
No additional display driver
Physical and Packaging
Product dimensions (L x W x H)
50 x 33 x 13mm
Product weight
24g
Operating temperature
040°C
Storage temperature
-2070°C
Humidity
090% RH
Package dimensions (W x D x H)
175 x 140 x 32mm
Shipping weight
112g
Package contents
1 x USB-C to HDMI adapter
| SKU | CDP2HDUCP |
| Barcode # | 65030866231 |
| Brand | STARTECH |
| Shipping Weight | 0.1000kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.170m |
| Shipping Cubic | 0.000850000m3 |
Official StarTech.com manufacturer warranty
3 Years
This item is the Australian version supplied by DeviceDeal and is covered by the official 3 years StarTech.com manufacturer warranty in Australia. Retain your DeviceDeal tax invoice as proof of purchase. Coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
This warranty statement applies to StarTech CDP2HDUCP.
