Name: Teltonika Flat Ethernet Switch, 3-Pin Power Input, Flat and compact design, Plug-and-Play, 7-57 VDC, PSU excluded
Brand: TELTONIKA
SKU: TSF010
Price: 61 AUD
Availability: InStock

TSF010

FLAT ETHERNET SWITCH

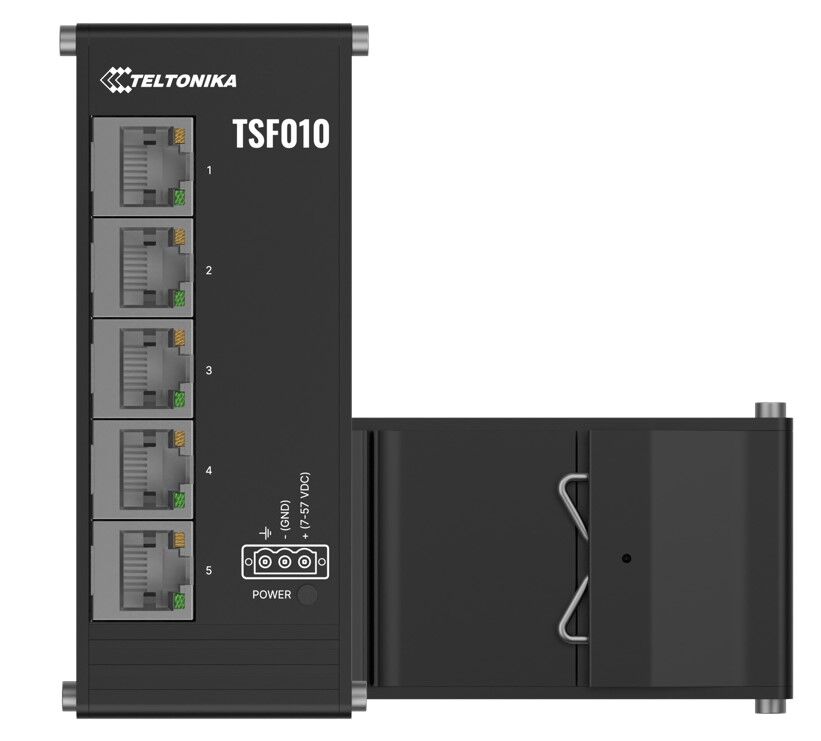

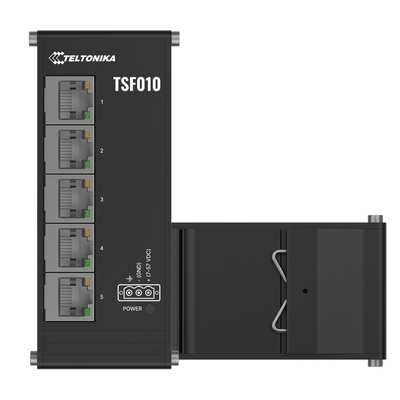

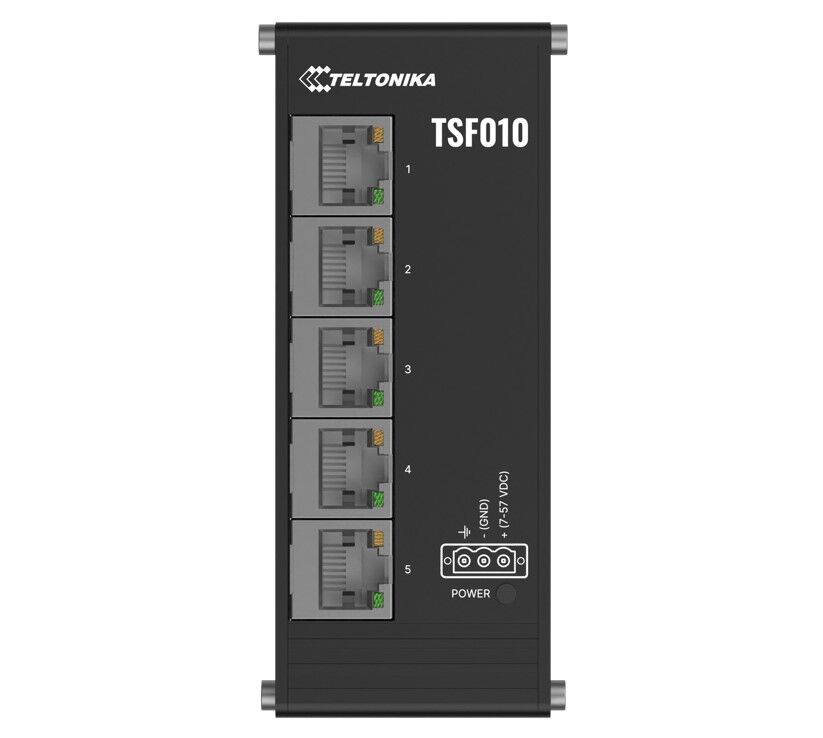

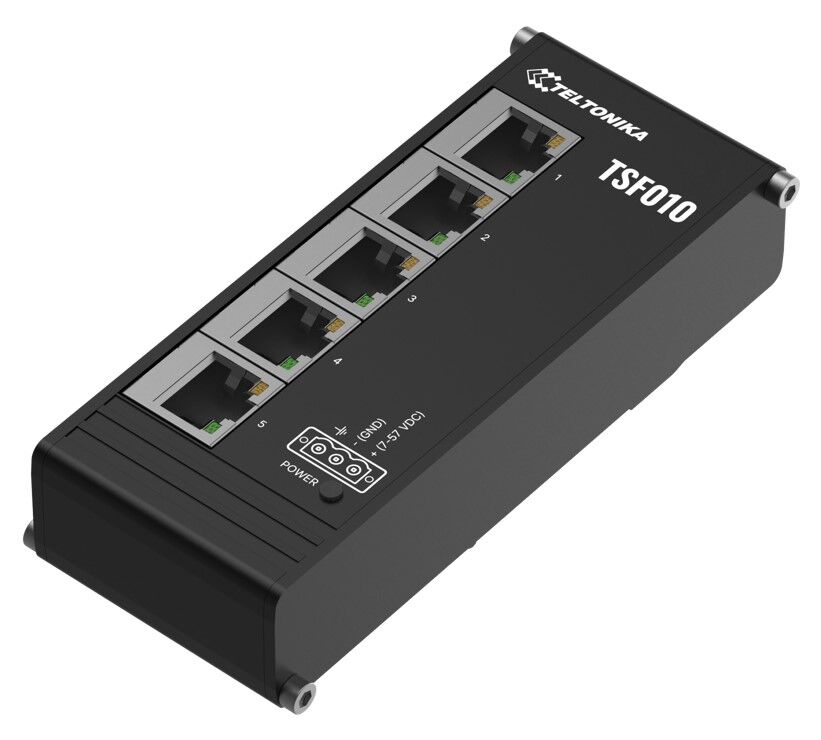

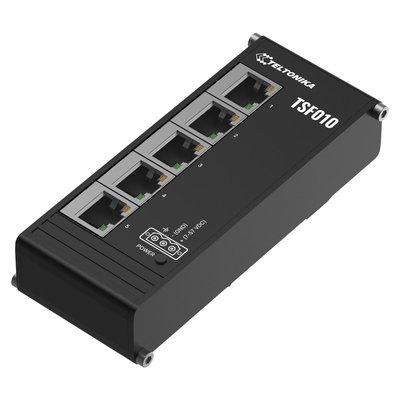

The TSF010 is an unmanaged Ethernet switch featuring a flat design and integrated DIN rail mounting for plug-and-play deployment in industrial cabinet applications. This Ethernet switch is compact and lightweight, measuring 113 x 28 x 50 mm and weighing only 142 g. Its 3-pin power input and 7-57 VDC voltage range make it a flexible unmanaged switch tailor-made for industrial use. The TSF010 is equipped with five 10/100 Mbps RJ45 ports for reliable connectivity.

3-PIN POWER INPUT

Flexible and tailor-made for industrial use

FLAT & COMPACT

Flat and compact design weighing only 142 g

INTEGRATED DIN RAIL BRACKET

Easy mounting for plug-and-play deployment

7-57 VDC

Suitable voltage range for industrial applications

Category

Feature

Description

Ethernet

ETHERNET

5 x ETH ports, 10/100 Mbps, supports auto MDI/MDIX crossover

IEEE 802.3 series standards

802.3i, 802.3u, 802.3ab, 802.3x, 802.3az

INDUSTRIAL PROTOCOLS

Profinet

Profinet Class A conformance (available with optional order code)

Performance Specifications

Bandwidth (Non-blocking)

10 Gbps

Packer buffer

128 KB

MAC address table size

2K entries

Jumbo frame support

9216 bytes

Power

Connector

3-pin industrial DC power socket

Input voltage range

7 – 57 VDC, overvoltage protection: 60 Vmax, reverse polarity protection: 80 Vmax,surge protection: min 64.4V/max 71.2V breakdown voltage,93.6V maximum reverse voltage @4.3A maximum reverse surge current

Power consumption

Idle: 1 W / Max: 1.5 W

Physical Interfaces

Ethernet

5 x RJ45 ports, 10/100 Mbps

Status LEDs

1 x Power LED, 10 x ETH status LEDs

Power

1 x 3-pin industrial DC power socket

Grounding

Grounding terminal on power connector

Physical Specification
