Lead security transmission power supply to a higher level

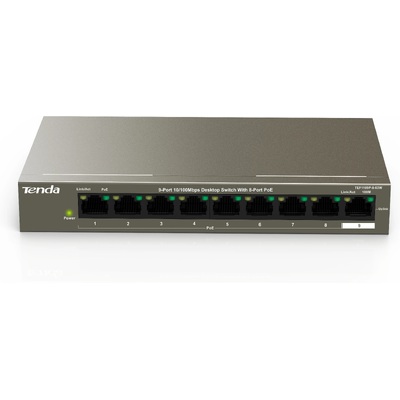

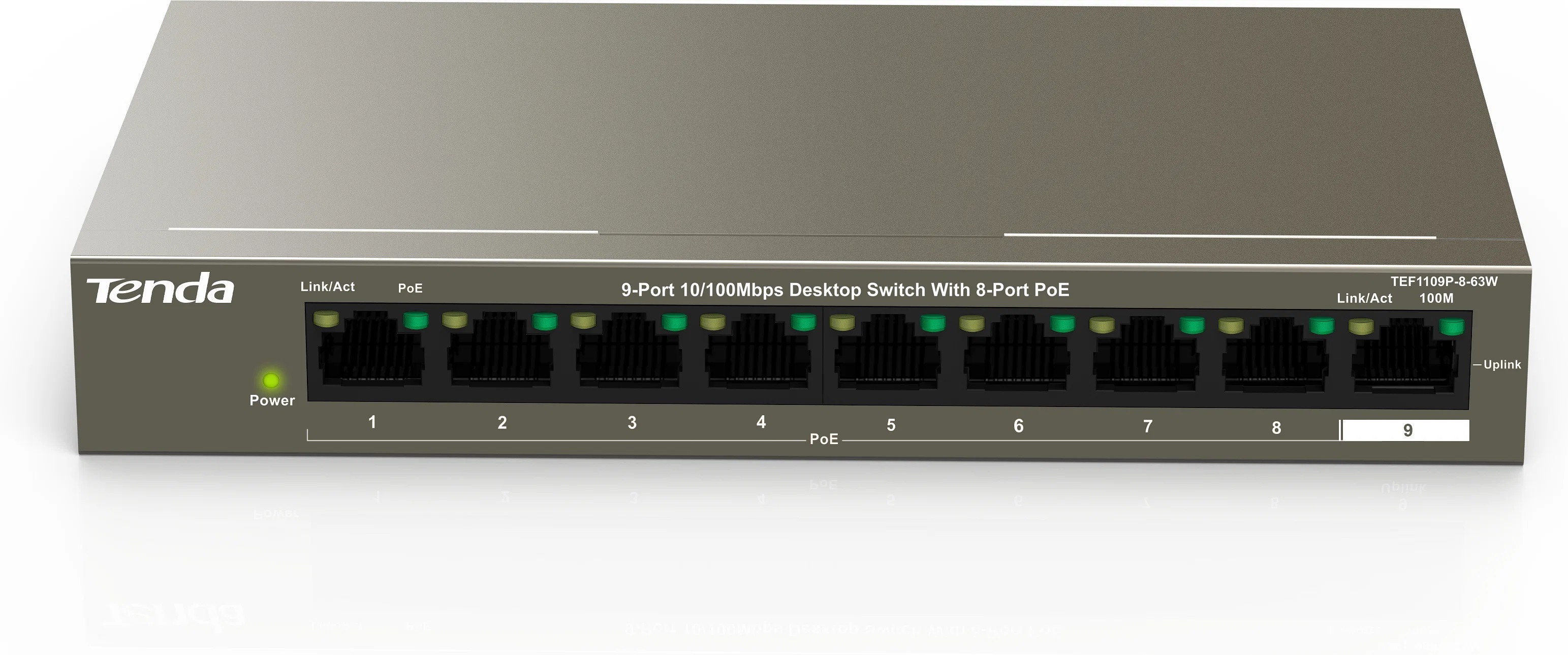

TEF1109P-8-63W 9-Port 10/100Mbps Desktop Switch With 8-Port PoE
6KV Lightning Protection long distance transmission
Maximum PoE Output Power 58W PoE power up to 30W for each PoE port

Up to 250 meters long distance transmission, beyond hundred meters transfer limit
Due to the complex monitoring environment, when making cabling and networking, it is usual to encounter the problem of inadequate network transmission distance, the distanceof each camera terminal to the monitoring center is different, some are only a few meters, some are hundred metres, while others are more than kilometers. Tenda TEF11 series PoE monitoring switches, exclusive patent network extension technology, use the common existing twisted pair, can support 250 meters data transmission, break the transmission limit of the existing twisted pair only for one hundred meters; Providing gigabit linked SFP port, can meet the demand of transmission to a few tens of kilometers.

6KV lighting protection PoE switch is the real monitoring private switch
In real monitoring project, cameras are often installed outdoor or in a higher position, which also increases the probability of lightning shock toward the cameras and PoE switches. Therefore, some of the equipments may be damaged and even the whole local area network (LAN) may be paralyzed.
Tenda TEF11 series switches have professional lightning protection design

(TEF1109P-8-63W)

Management features
Switch type  Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity  9
Basic switching RJ-45 Ethernet ports type  Fast Ethernet (10/100)
Network
Networking standards  IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
10G support
VLAN support
Data transmission
Switching capacity  1.8 Gbit/s
MAC address table  4000 entries
Design
Rack mounting
Product colour  Black
LED indicators Activity, Link, PoE, Power
Certification 3C, FCC, CE, ROHS
Performance
Mean time between failures (MTBF)  50000 h
Power
AC input voltage  100 - 240 V
AC input frequency 50 - 60 Hz
DC input voltage 51 V
Input current 1.25 A
Power consumption (max)  63 W
Surge protection
Surge protection voltage 6 kV
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity 8
Power over Ethernet (PoE) power per port 30 W
Total Power over Ethernet (PoE) budget 58 W
Operational conditions
Operating temperature (T-T)  0 - 40 °C
Storage temperature (T-T)  -40 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 90%
Weight & dimensions
Width  177.5 mm
Depth  104 mm
Height  26 mm
Logistics data
Harmonized System (HS) code 85176990
SKU TEF1109P-8-63W
Brand TENDA

Manufacturer Warranty : 1 year Manufacturer Warranty
