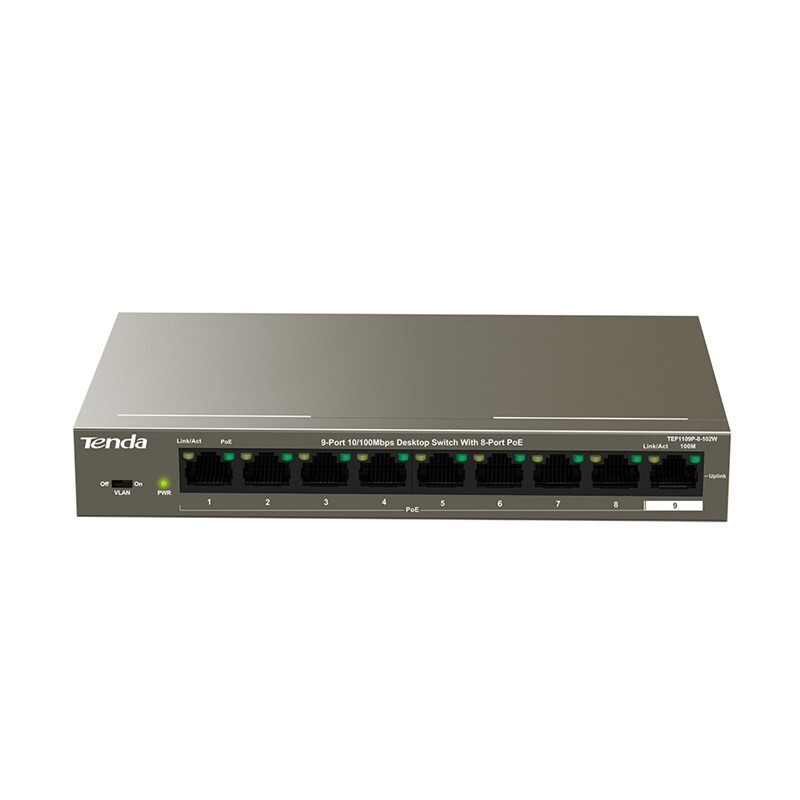

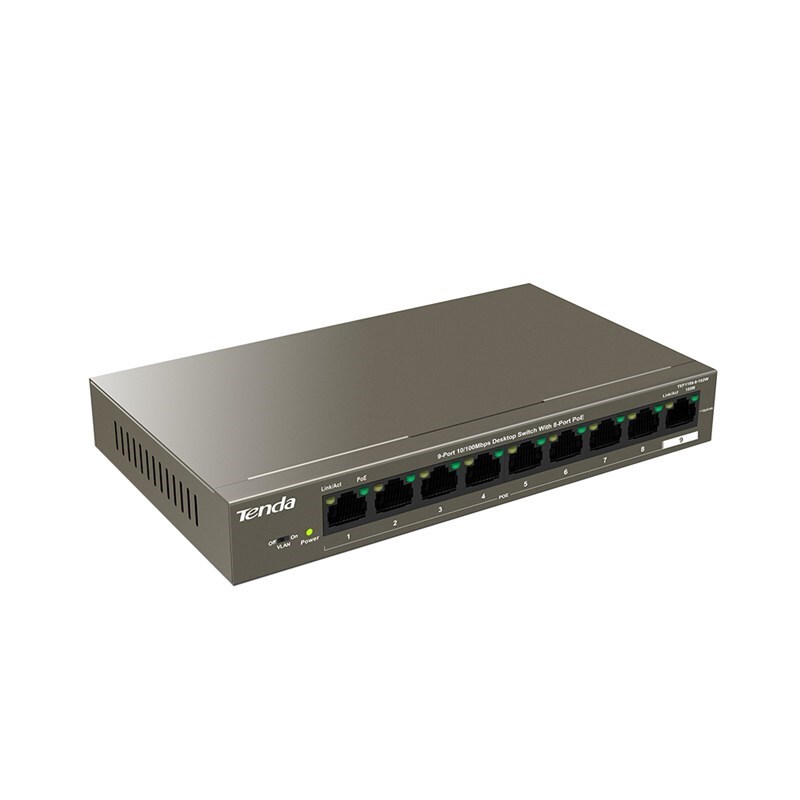

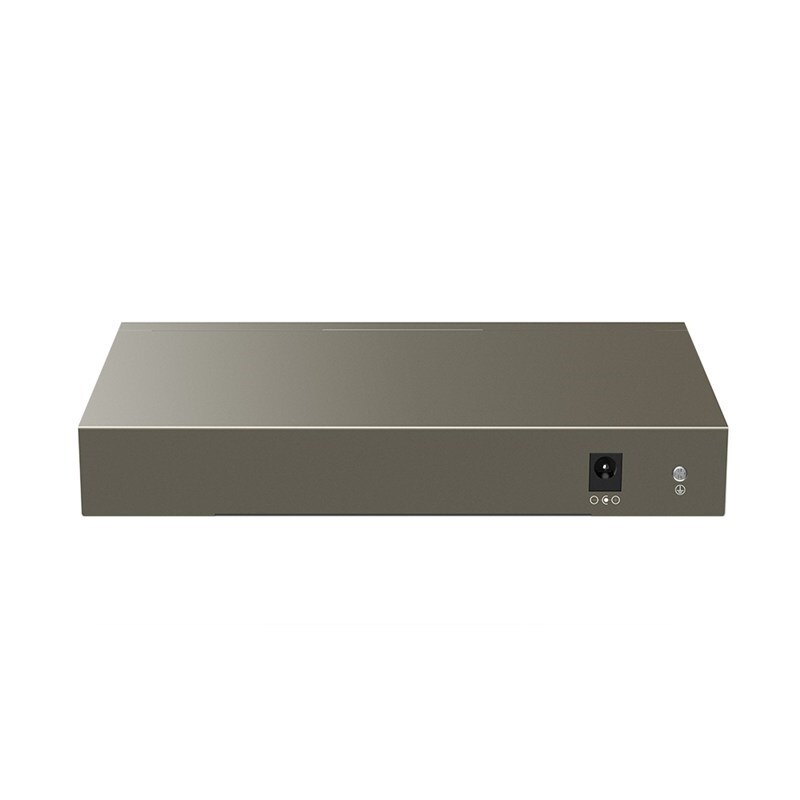

Tenda TEF1109P-8-102W 9-Port Fast Unmanaged Ethernet Switch with 8-Port PoE
Model # TEF1109P-8-102W
-
SKU: TEF1109P-8-102W
- Pick Up Available
- Australian Warranty
- Checkout Securely
TEF1109P-8-102W is a Tenda switch that offers 9 10/100M RJ45 ports. Ports 1-8 comply with the IEEE802.3af standard (maximum PoE power output : 15.4w) and 802.3at standard (maximum PoE power output: 30W). The switch offers a maximum PoE power output of 92W and can supply power to exchange data with APs, IP cameras, and IP phones through CAT5e cables. It also provides simple management modes such as Standard, VLAN. Thus, F1109P-8-102W is a perfect choice for SMBs, hotels, and office to have small-scale HD surveillance and wireless networking.
(TEF1109P-8-102W)
Standard&Protocol
IEEE 802.3/IEEE 802.3u/IEEE 802.3x/IEEE 802.3af/IEEE 802.3at
LED indicator
9*Link/Act per device
1*Power per device
1*Power per device
Interface
8 10/100Base-T ports(Data/Power)
1 10/100Base-T ports(Data)
1 10/100Base-T ports(Data)
Lightning Protection
6KV for uplink port
Store & Forward
Yes
exchange capacity
1.6 Gbps
Packet Forwarding Rate
1.34Mpps
Packet buffer
1Mb
MAC Address Table
2K
PoE supply management
Port 1-8 support IEEE802.3at/af PoE standard
PoE through pin
1 2 4 5 +
3 6 7 8 -
3 6 7 8 -
Input Voltage
AC: 100-240V～50/60Hz
Dimension
177.5*104*26mm ( W x D x H )
Port Features
Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other.
VLAN: ports 1 to 8 are isolated from each other, but can communicate with ports 9 (uplink port) respectively.
VLAN: ports 1 to 8 are isolated from each other, but can communicate with ports 9 (uplink port) respectively.
Humidity
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
| SKU | TEF1109P-8-102W |
| Barcode # | 6932849431612 |
| Brand | TENDA |
| Shipping Weight | 1.4900kg |
