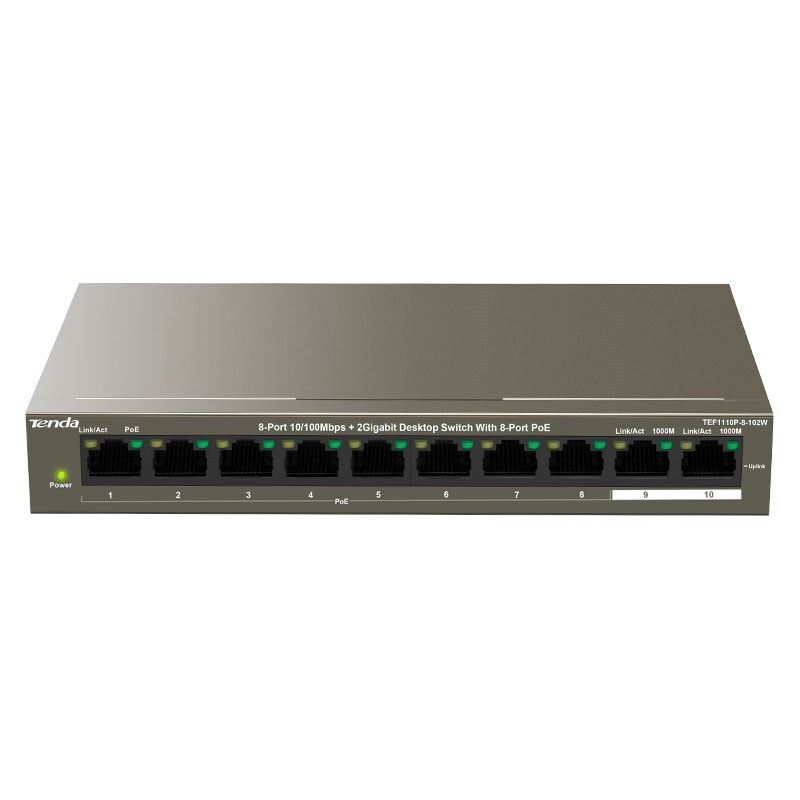

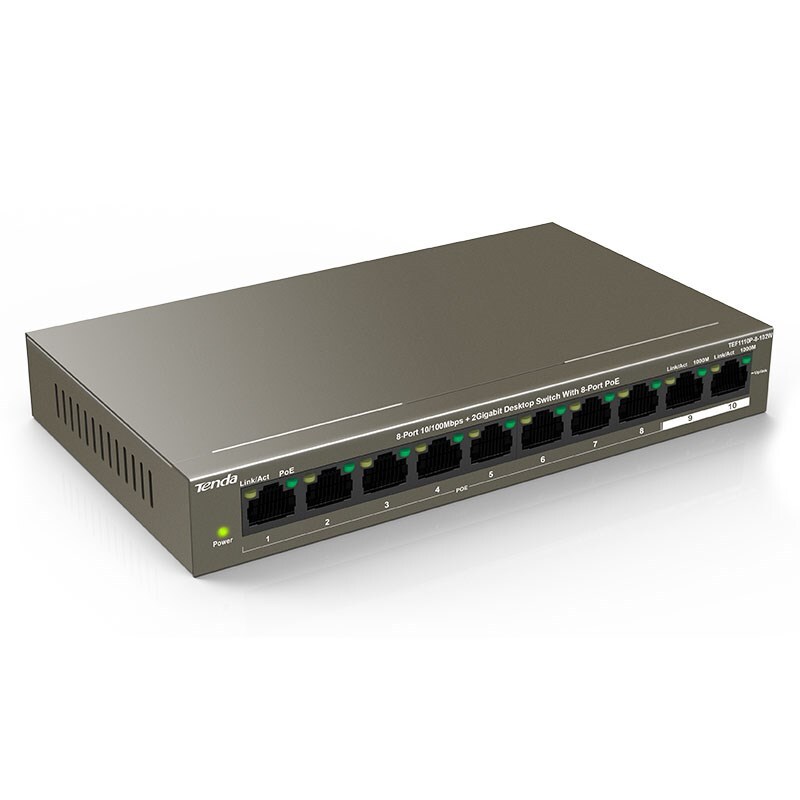

Tenda TEF1110P-8-102W 8-Port 10/100Mbps 2-Port Gigabit Switch with 8-Port PoE
Model # TEF1110P-8-102W
-
SKU: TEF1110P-8-102W
- Pick Up Available
- Australian Warranty
- Checkout Securely
TEF1110P-8-102W has the network extension technology. Based on the original twisted pair, it can support up to 250 meters long distance transmission, breaking the hundred meters transfer limit. With 6KV lightning protection, it is the real monitoring private switch. Ports 1-8 support IEEE 802.3at and IEEE 802.3af PoE standard. It provides a maximum power supply of 30W to each port and 99W to the whole device. Meanwhile, it provides dual gigabit uplink port to meet the needs of more equipment cascading and access.
(TEF1110P-8-102W)
Standard&Protocol
IEEE 802.3、 IEEE 802.3u、IEEE 802.3x、IEEE802.3ab、IEEE 802.3af、IEEE 802.3at
MTBF
≥50,000 hours(about 5 years)
Indicator
Link/Act, PoE Status, Power, 1000M
Fixed Port
8* 10/100Base-TX RJ45 Ports(Data/Power)
2*10/100/1000Base-T RJ45 Port(Data)
2*10/100/1000Base-T RJ45 Port(Data)
Lightning Protection
6KV
Wire-speed forwarding
Support
Switching Capacity
5.6 Gbit/s
MAC Address Table
16K MAC
PoE supply management
Port 1 to Port 8 support standard IEEE802.3at/af power( maximum power for each port is 30W)，PoE power type is end-span(1245+, 3678- line pair)
in full configuration：<102W
PoE Max Power Supply：99W
in full configuration：<102W
PoE Max Power Supply：99W
Dimension
177.5mm*104mm*26mm
Input Voltage
AC：100－240V～ 50/60Hz
DC：51V /2.1A （Power Adapter ）
DC：51V /2.1A （Power Adapter ）
Environment
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

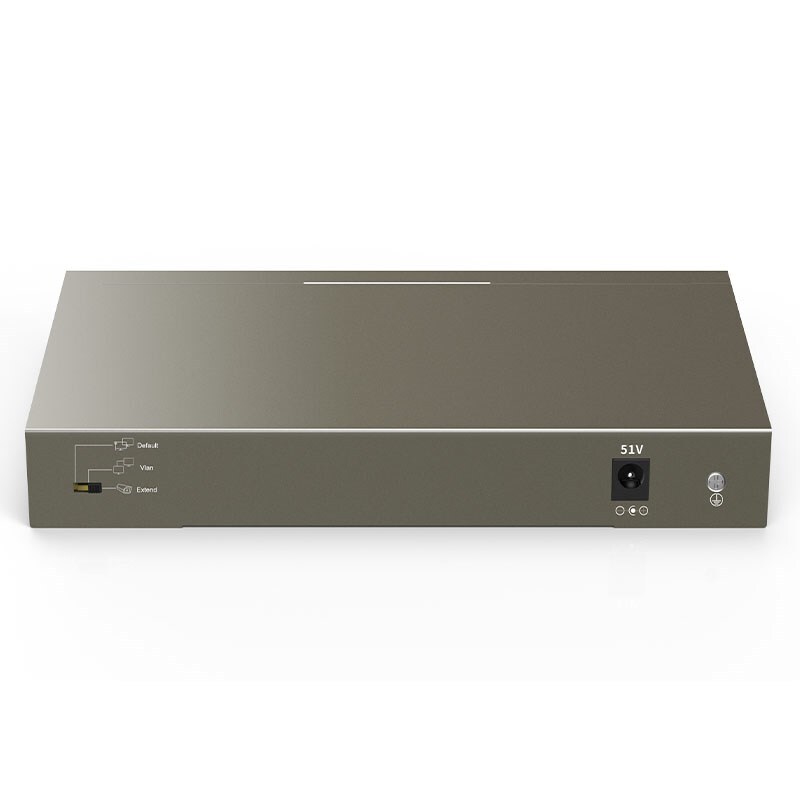

One-button-start Mode
Default Mode: If Default mode is enabled, the device works as a general switch and all ports support 10/100Mbps auto-negotiation.
VLAN Mode: 1-8 port can be isolated each other but 1-8 port can connect to 9/10 port after open VLAN to stop broadcast storm to increase forwarding rate of frame. Extend Mode: If Extend mode is enabled, the delivery distance of powering and network data is up to 250m (10Mbps).
VLAN Mode: 1-8 port can be isolated each other but 1-8 port can connect to 9/10 port after open VLAN to stop broadcast storm to increase forwarding rate of frame. Extend Mode: If Extend mode is enabled, the delivery distance of powering and network data is up to 250m (10Mbps).
Certification
3C、FCC、CE、RoHS
| SKU | TEF1110P-8-102W |
| Barcode # | 6932849431254 |
| Brand | TENDA |
| Shipping Weight | 1.6500kg |
